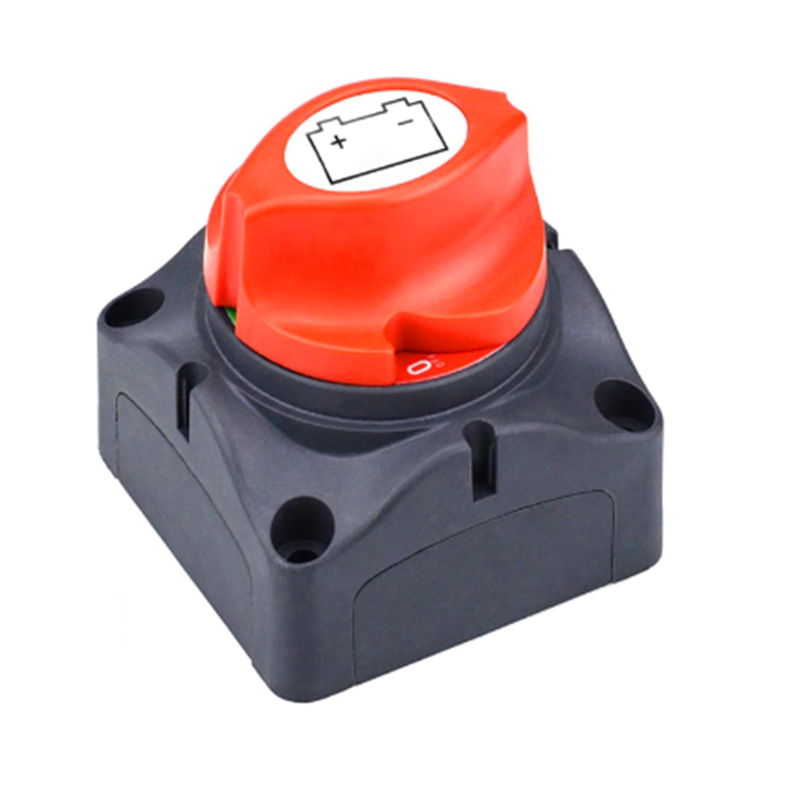

Two Position 300a Rotary Style Battery Switch

Two position heavy duty rotary battery style switch. Suits DC 12-48v electrical systems with a max rating of 300a (at 12v).

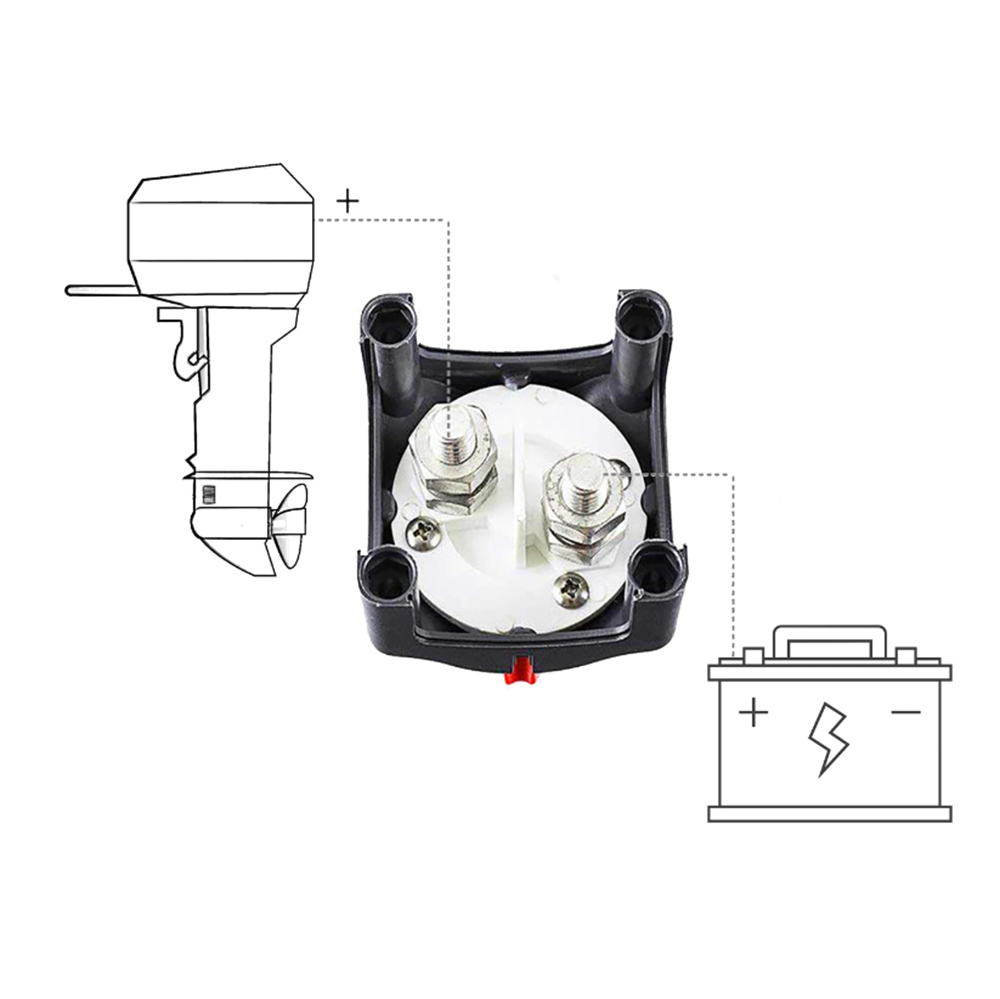

This unit has four removable side plates that provide access to up to 1/0 cables. The rear cover insulates the rear terminals against any short circuits, ensuring that the switch meets ABYC requirements.

Specifications:

Operation Switch Type: On / Off
DC Voltage Range: 12v-48v DC
Max Current: 300a @12v, 150a @ 24v, 75a @ 48v
Stud Size: 2x3/8" (10mm)
Dial Diameter: 40mm
Body Dimensions: 68mm x 68mm x 40mm (74mm inc Dial Knob)
