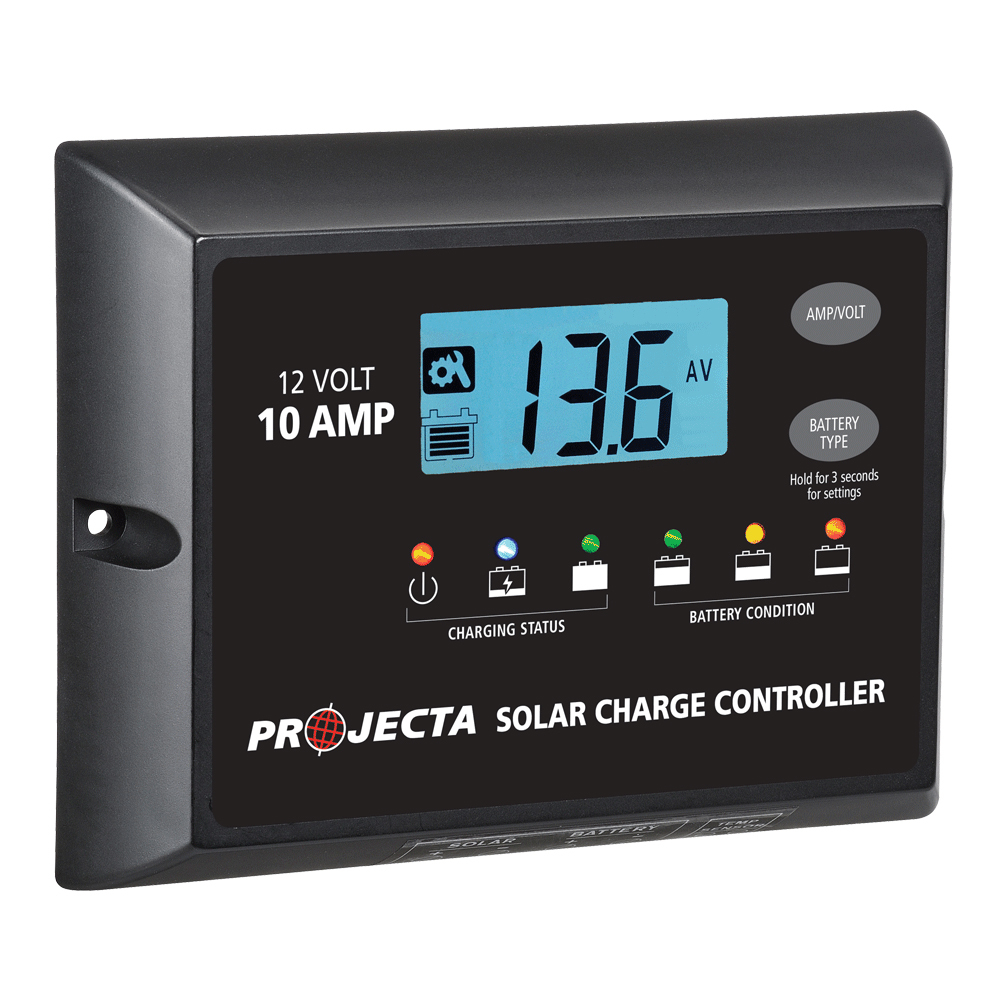

Projecta Automatic 12v 10a 4 Stage Solar Charge Controller

$144.00
In Stock
Not available for pickup. Item shipped between 2-4 days.


Calculate Shipping



Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Delivering comprehesnive 4 stage charging anc ompataible with all modern Lead Acod battery types. The new range of Projecta solar charge controllers offer reliabilioty, ease of use and at a very competitive price.

The SC110 is suitable for smaller installations and solar panbels up to 10amps.

Features:

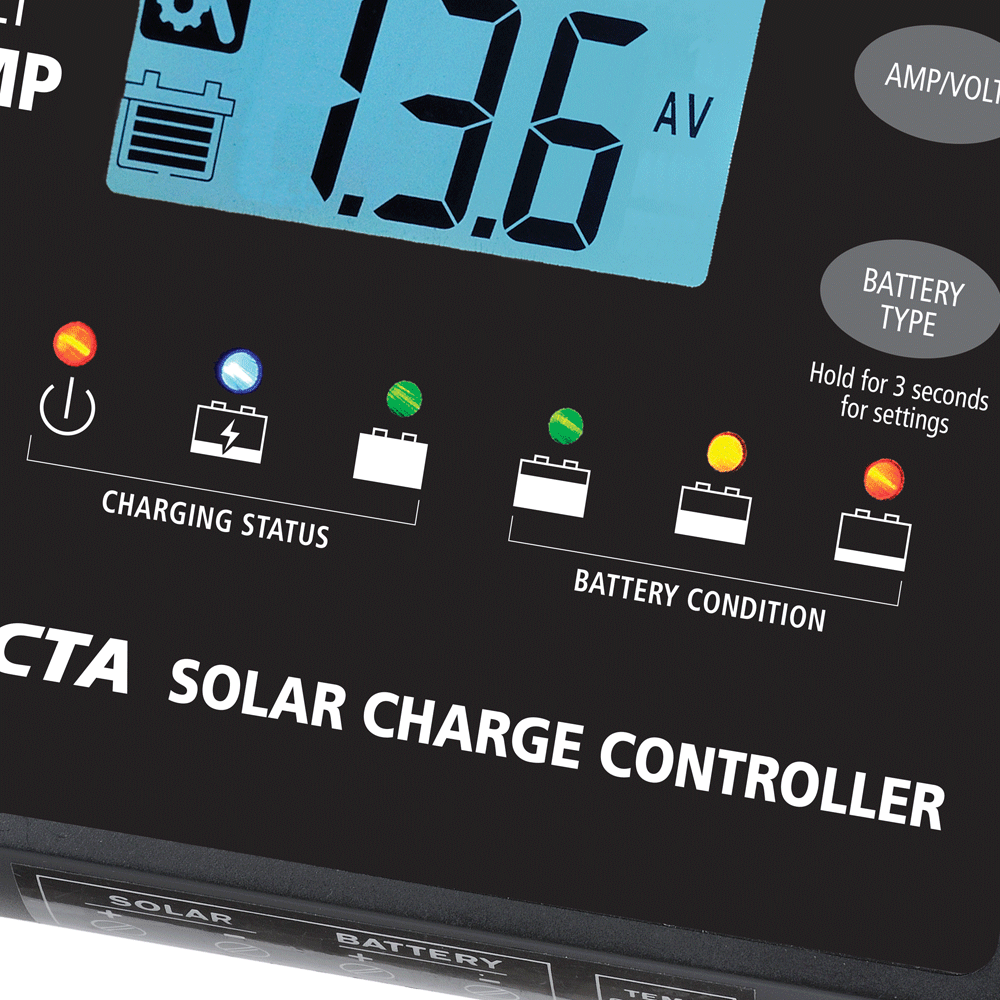

Digital L.E.D screen - Displays battery voltage, charging current, charging capacity, fault codes and more
L.E.D charge indicator - Displays quick reference to charge status and battery condition
Multi-chemistry - Set the charging profile to suit battery chemistry type including; Wet, Calcium, AGM or Gel.
Sealed electronics - Conformal coated circuit board and plated terminals protect controller from the elements
Temperature sensor - Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available

Specifications:

Input: 12v
Max Input: 25v DC 10a
Max Charge: 10a
Max Panel Size: 120w
Battery 12v
Charge Stages: 4 Stages
Bulk Voltage: 14v
Gel Absorption Voltage: 14.1v
AGM Absorption Voltage: 14.4v
Wet Absorption Voltage: 14.7v
Calcium Absorption Voltage: 14.9v
Equalization Voltage: 15.5v
Float Voltage: 13.6v
Approval: EMC
Ip Rating: IP22

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(PROJC47)

SKU PROJC47
Model # SC110
Barcode # 9315219812117
Brand

Projecta

12 Month Manufacturer Warranty
