Projecta 12v 100a Voltage Sensitive Relay Full Kit

In Stock
Not available for pickup. Item shipped between 2-4 days.

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

The perfect no-fuss power management controllers suitable for a wide variety of 12v DC applications. Ideal for winching. Projects voltage sense the input voltage and automatically connect / disconnect the appliance or circuit at the set voltages.


The cut-out has an 8 sec. delay preventing the relay from disconnecting during a momentary drop in voltage.
Manual override is activated by connecting the override wire to 12v DC. This bypasses the automatic voltage sensor
allowing the relay to be engaged below the set voltages.
Surge protected
Weatherproof (IP66)

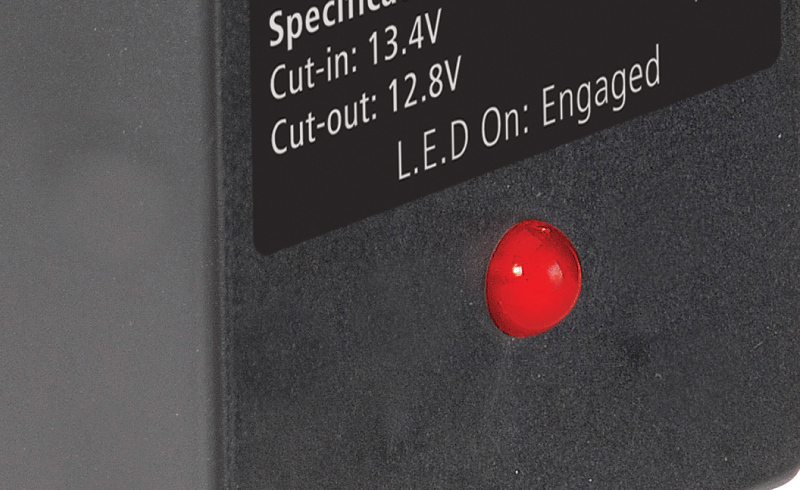

LED Indicator (on/contact closed)

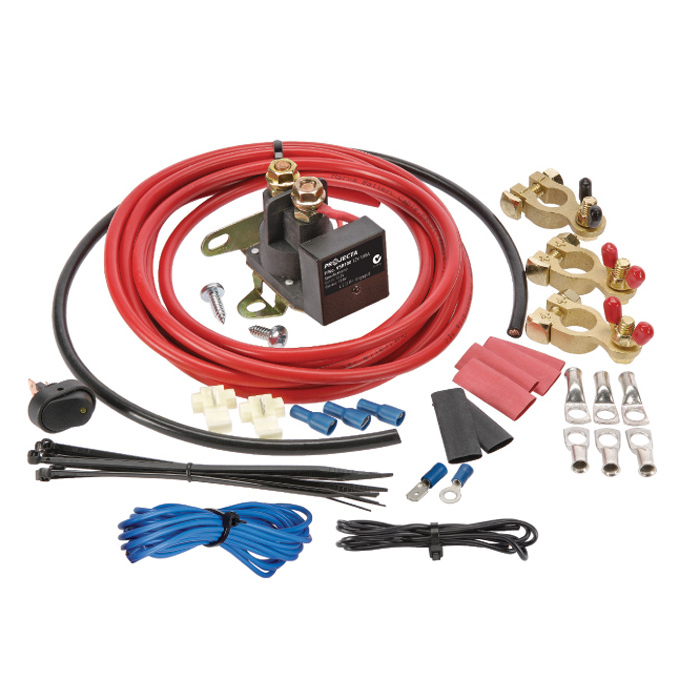

Package Includes:

100A voltage sensitive relay
Rocker switch, lugs, terminals, heat shrink and cable ties
4m main cable and 60cm aux earth cable
Auxiliary battery terminals (2 x positive and 1 x negative)


Model # VSR100K
Barcode # 9315219100870


12 Month Manufacturer Warranty
