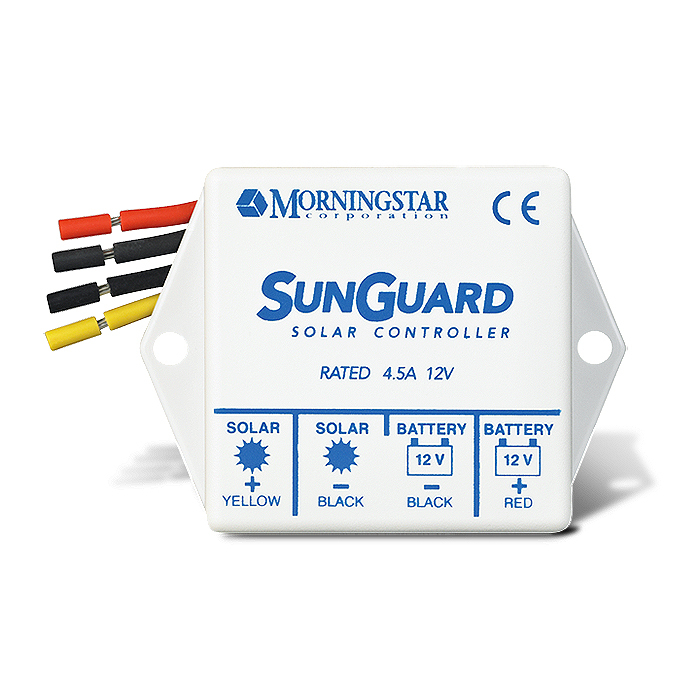

Morningstar SunGuard PWM 12v 4.5a Solar Controller

$85.00
In Stock
Not available for pickup. Item shipped between 2-4 days.


Calculate Shipping



Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Morningstar SunGard PWM Solar Controller is the world's leading single module controller. Combining the advantages of the Morningstar innovative SunSaver charge circuitry in a practical and economical form factor specifically designed for smaller solar installation and DIY projects.

Features:

Series design (not shunt)
100% solid state
True 0 to 100% PWM duty cycle
Set point accuracy to 60 mV
Temperature compensation
Rated for 25% overloads
Lightning protected with 1500 W transorbs
Self-consumption is 6 mA
Fully encapsulated in epoxy potting
ABS plastic, impact-resistant case
Outdoor rated, Hypalon connecting wires

Specifications:

Rated Solar Input: 4.5a
Max. Input (5 min.): 5.5a
System Voltage: 12v
Max. Solar Voltage: 30v
Regulation Voltage: 14.1v
Accuracy: 60mV
Self-Consumption: 6mA
Temp. Compensation: –28 mV per Degree (Celsius)
Reverse Current Leakage: <10 uA
Operating Temperature: -40 to +85 Degrees Celsius

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(SUNG)

Product Videos

SKU SUNG
Model # SG-4
Barcode # 2000000006581
Brand

Morningstar

24 Month Manufacturer Warranty
