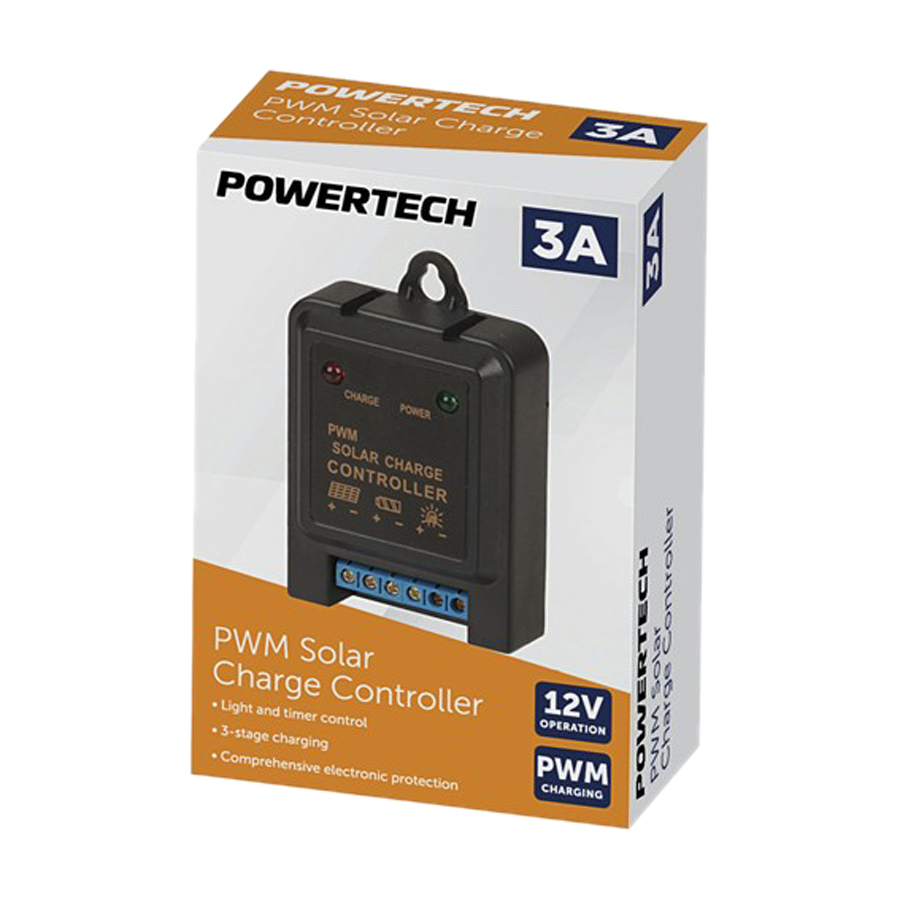

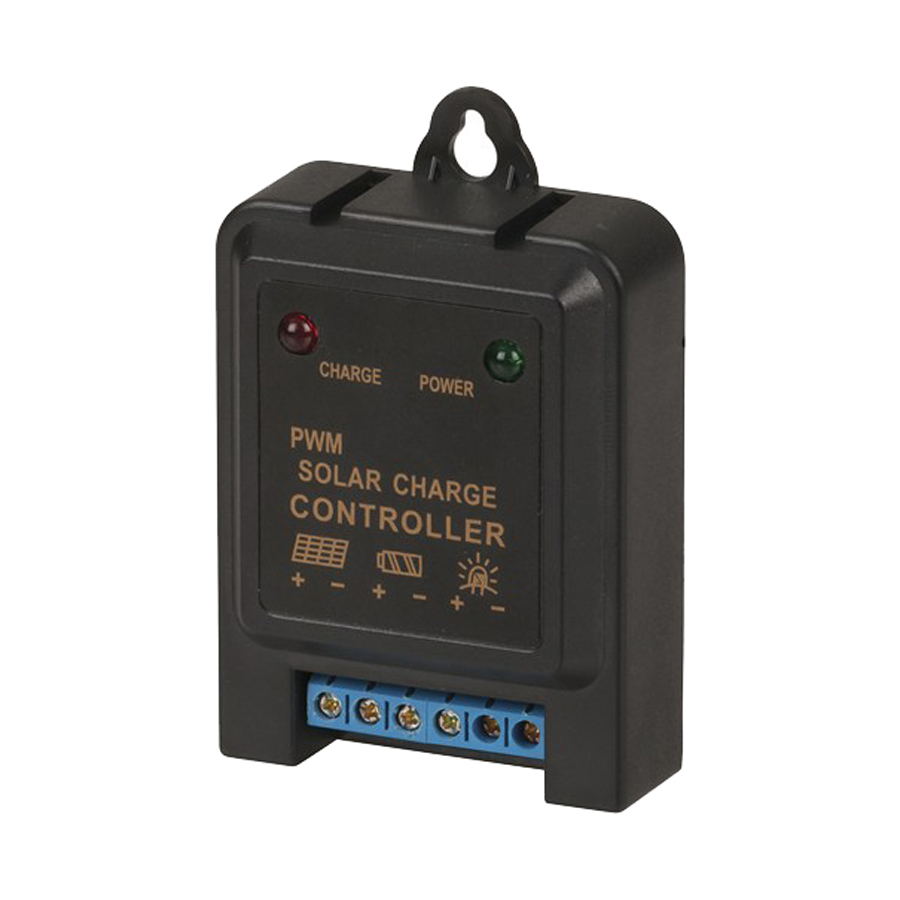

Micro 12v 3a PWM Solar Charge Controller

In Stock
Not available for pickup. Item shipped between 1-3 days.

Calculate Shipping

This compact solar controller uses Pulse Width Modulation (PWM) to manage battery charging from a connected solar panel. It features light and timer control, similar to street lights, and three charging states (bulk, equalise, and float charging). It provides all the important safety features such as overcharge, over-discharge, over-current, short-circuit, and reverse-polarity protection.


Red charge LED indicator
Green power LED indicator
Hang hook
Battery voltage automatic identification
PWM charging mode
Comprehensive electronic protection


DC Voltage : 12.0V
IP Rating : 22
Dust/Particle Ingress Protection : 2 - Objects > 12.5mm, Fingers or small objects
Liquid/Moisture Ingress Protection : 2 - Dripping water when tilted to 15deg
Width : 52.0mm
Height : 22.0mm
Depth : 80.0mm
Weight : 33.0g
Charge Controller Technology : Pulse Width Modulated (PWM)
Max Charging Current : 3.0A
Max Load Current : 3.0A


Barcode # 9320000000000


12 Month Manufacturer Warranty
