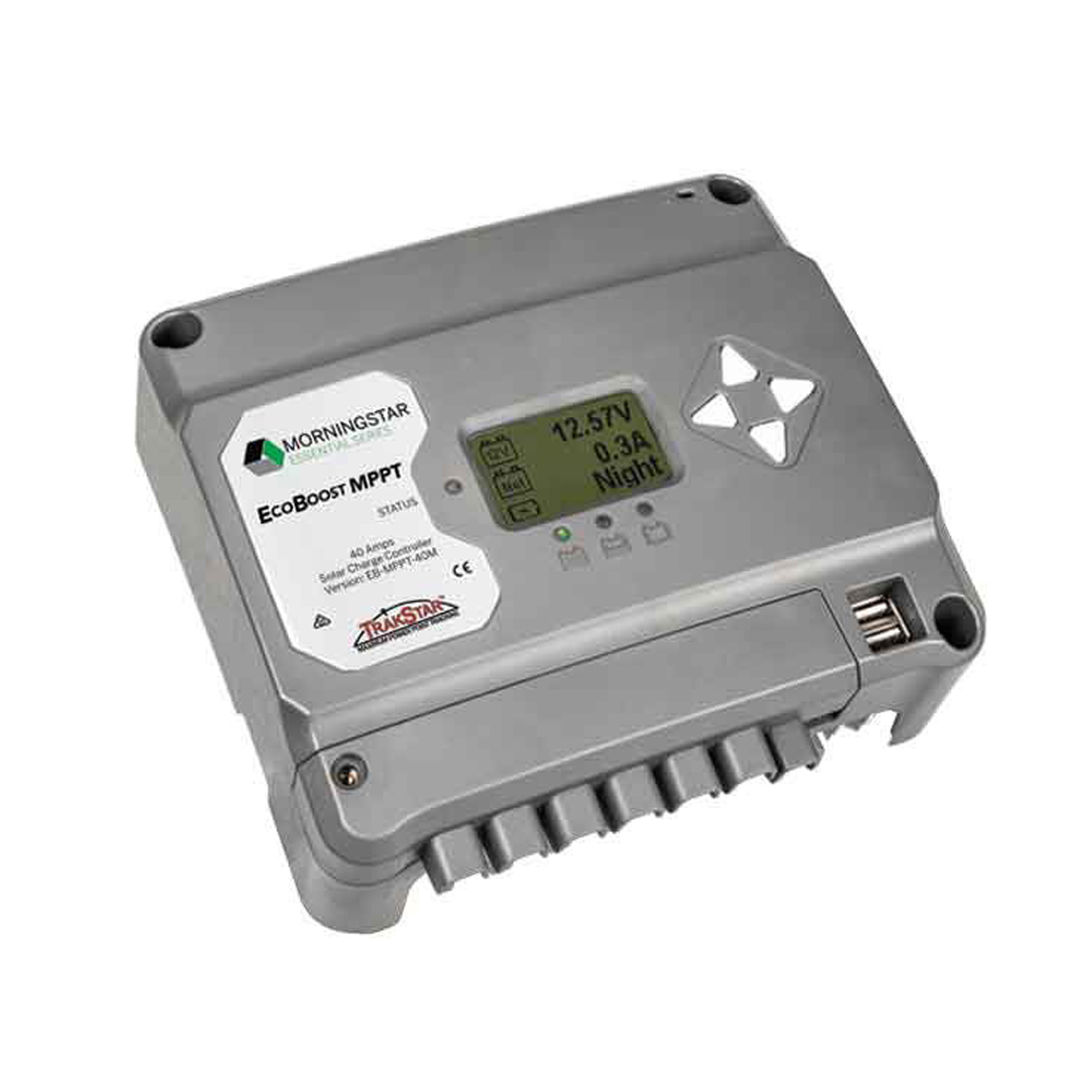

Morningstar EcoBoost 12/24v 30a LCD MPPT Solar Charge Controller
Employing Morningstar's proprietary TrakStar technology, the new EcoBoost offer the highest efficiency, reliability and ensure batteries attain a complete state of charge.
Morningstar's EcoBoost feature integrated sophisticated load controller. Managing DC power sources and ensuring batteries do not enter too deep a state of discharge. This reduces wear and tear on the batteries, improves performance, longevity and provides an overall better return on your original battery investment.
Morningstar's integrated LCD screen will provide system operation information. Including current and historical performance data.
Morningstar EcoBoost have been deisgned from the ground up to be the central brain of PV powered electrical systems up to 1120w. Morningstar's new range of EcoBoost solar charge controllers offers outstanding value as well as performance that you can rely on time and time again!
Two USB-A ports for charging multiple mobile phones/tablets
3 Amps of USB charging capacity
Metered and non-metered versions
Four stage battery charging
Dusk 'til dawn lighting control
Electronic and environmental protections
Wide operating temperature range
Max battery Current: 30a
Load Current Rating: 30a
Max PV Open Circuit Voltage: 120v
Nominal Battery Voltage: 12 or 24v automatic sensing
Peak Efficiency: 98%
Battery Voltage Range: 10-35v
Max Combined USB Charging Output: 3a at 5v
Dimensions: 196mm x 173mm x 71mm
Wire Size: 2.5-16mm2 14-2awg
Enclosure: IP20, Type 1
Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
