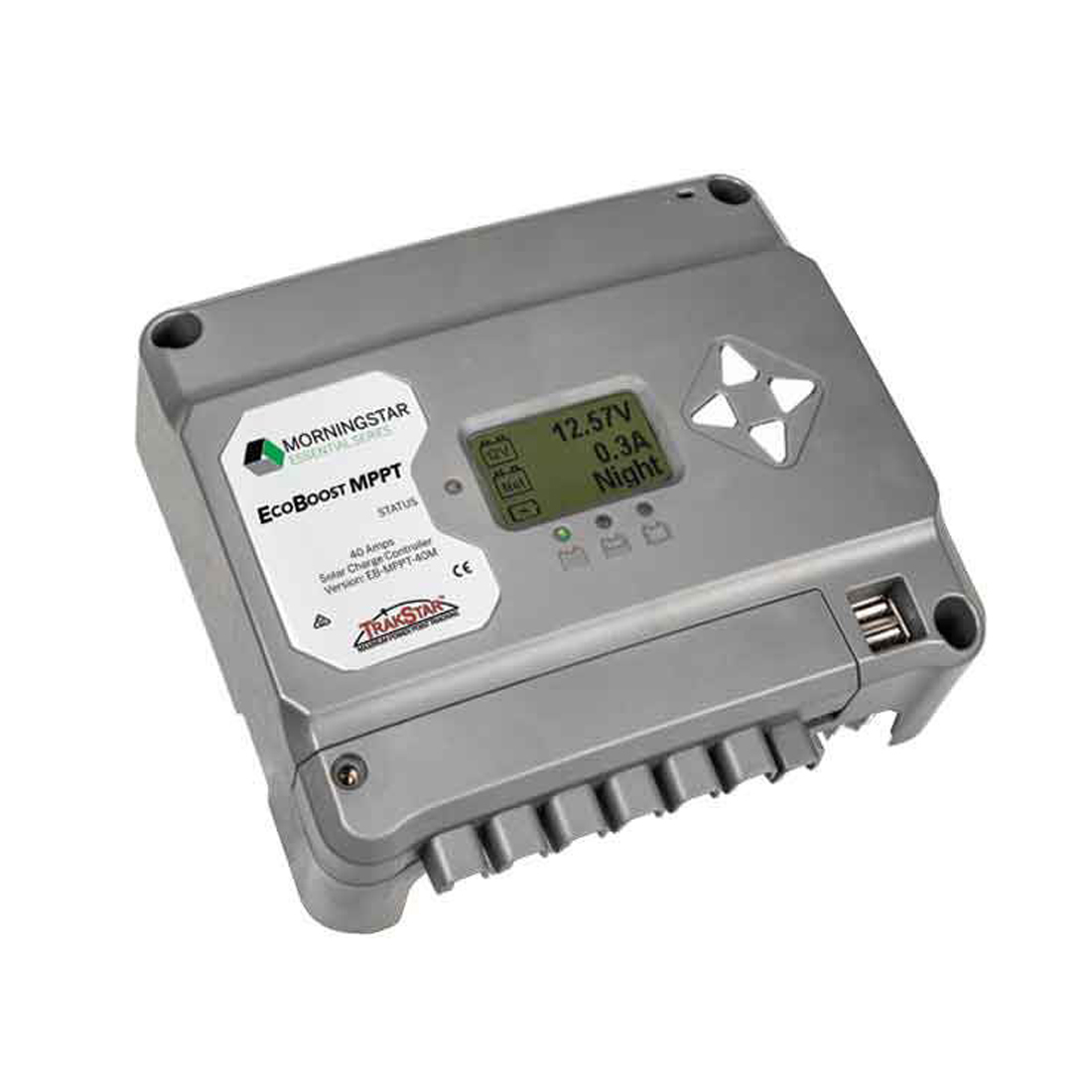

Morningstar EcoBoost 12/24v 40a LCD MPPT Solar Charge Controller

$969.00
In Stock
Not available for pickup. Item shipped between 2-4 days.


Calculate Shipping



Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Employing Morningstar's proprietary TrakStar technology, the new EcoBoost offer the highest efficiency, reliability and ensure batteries attain a complete state of charge.

Morningstar's EcoBoost feature integrated sophisticated load controller. Managing DC power sources and ensuring batteries do not enter too deep a state of discharge. This reduces wear and tear on the batteries, improves performance, longevity and provides an overall better return on your original battery investment.

Morningstar's integrated LCD screen will provide system operation information. Including current and historical performance data.

Morningstar EcoBoost have been deisgned from the ground up to be the central brain of PV powered electrical systems up to 1120w. Morningstar's new range of EcoBoost solar charge controllers offers outstanding value as well as performance that you can rely on time and time again!

Features:

Two USB-A ports for charging multiple mobile phones/tablets
3 Amps of USB charging capacity
Metered and non-metered versions
Four stage battery charging
Dusk 'til dawn lighting control
Load control
Electronic and environmental protections
Wide operating temperature range

Specifications:

Max battery Current: 40a
Load Current Rating: 30a
Max PV Open Circuit Voltage: 120v
Nominal Battery Voltage: 12 or 24v automatic sensing
Peak Efficiency: 98%
Battery Voltage Range: 10-35v
Self-Consumption: <1.2w
Max Combined USB Charging Output: 3a at 5v
Dimensions: 196mm x 173mm x 71mm
Weight: 1.4kg
Wire Size: 2.5-16mm2 14-2awg
Enclosure: IP20, Type 1

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(EcoBoost4)

Product Videos

SKU EcoBoost4
Model # EB-MPPT-40M
Brand

Morningstar

24 Month Manufacturer Warranty
