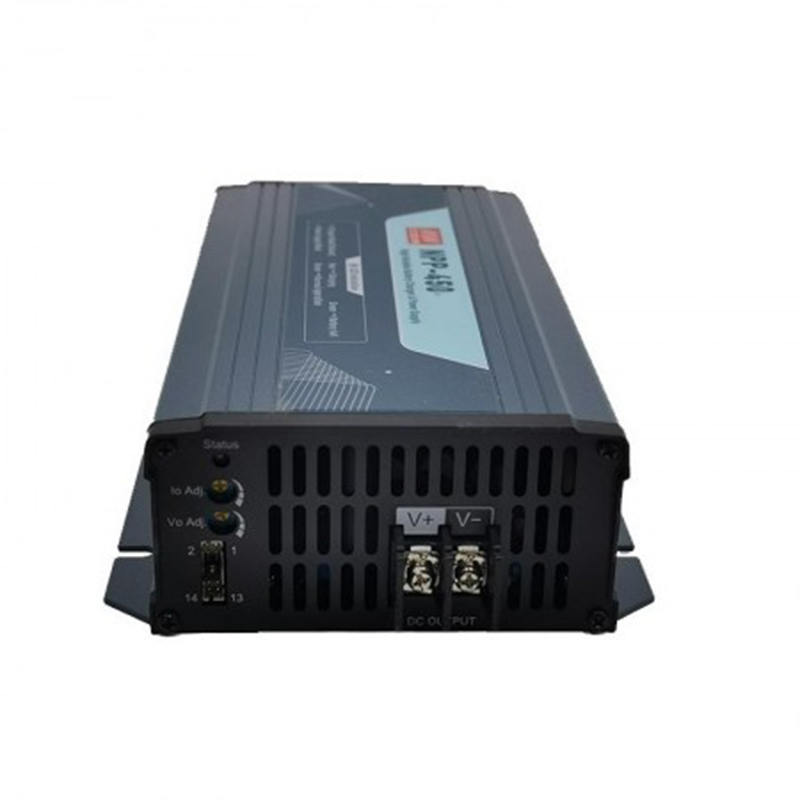

MeanWell NPP 48v 6.8a Mobility and Golf Cart Battery Charger

MeanWell NPP-450-48 offers adjustable output voltage for maximum versatility. Ideal solution for 48v battery etups in carts and mobility scooters.

Features:

Multi-function single unit battery charger or power supply operation modes selectable
Ultra-wide output voltage (10.5-21V, 21-42V, 42-80V)
Output voltage and current adjustable via potentiometer
3-stage charging curve for charging mode
-30 to +70 Degree wide operating temperature
Thermal controlled DC fan for noise reduction
Multiple protections: Short circuit / Overload / Over voltage / Over temperature
Suitable for lead-acid batteries
Safety approval: CB, UL, DEKRA, EAC, CE, UKCA (62368-1 + 60335-1/-2-29)
3-year warranty

Specifications:

Output Voltage (Boost / Default): 57.6v
Output Voltage (Float): 55.2v
Output Current: 6.8aMax POwer: 456.96w
Input Voltage: 90-264v AC 47-63Hz
Efficiency: 93%
Dimensions: 205 (L) x 135 (W) x 55 (H)
Output Cable: None. Screw Terminal output
Weight: 1.02 Kg

Please Note: MeanWell battery chargers and power supplies are not shipped with power cable. Mr Positive carries a wide range of power cables that can be purchased separately.

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
