Daqo 12v 30w Polycrystalline Solar Panel

$78.00
In Stock
Available for pickup or shipped within 24 hours.


Calculate Shipping

Founded over 50 years ago and now regarded as the Chinas largest manufacturer of solar panels. Daqo PV panels are a staple within both consumer and commercial solar installations worldwide.

Their end consumer range is available in 10w-160w power rating and ideal for DIY installations for RV, caravans, huts, marine and much more.

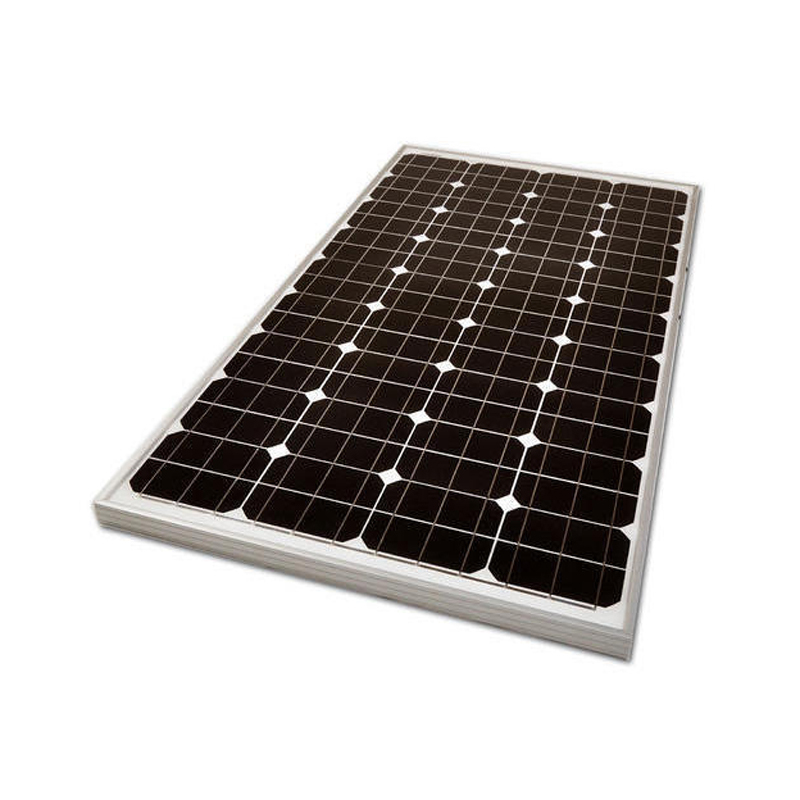

Please note that the image provided in this product listing is for a generic Daqo panel.

Features:

Positive power tolerance 0-+5w
Withstand strong snow load 5400 Pa
Wind load 2400pa
Excellent low light performance
Ammonia and salt resistance

Specifications:

Peak Power (Pmax): 30w
Weight: 2.5kg
Dimensions: 350 x 670 x 25mm
Maximum Power Voltage (Vmp): 17.8v
Maximum Power Current (Imp): 1.68a
Open Circuit Voltage (Voc): 21.98v
Shorty Circuit Current (Isc): 1.81a
Maximum System Voltage: 1000v DC

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(DAQ05)

SKU DAQ05
Model # DQ30P
Barcode # 2000000006529
Brand

Daqo

1 year warranty for materials and workmanship
20 years warranty for at least 80% output

Warranty void if:
Panel has been installed correctly and to manufacturer specification
Panel has had any signs of impact or physical damage
Manufacturers polarity and wiring instructions have not been followed
