CTEK MXS 10 - 12v 10a 8 Stage Automotive Lead Acid Battery Charger

In Stock
Not available for pickup. Item shipped between 2-4 days.

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

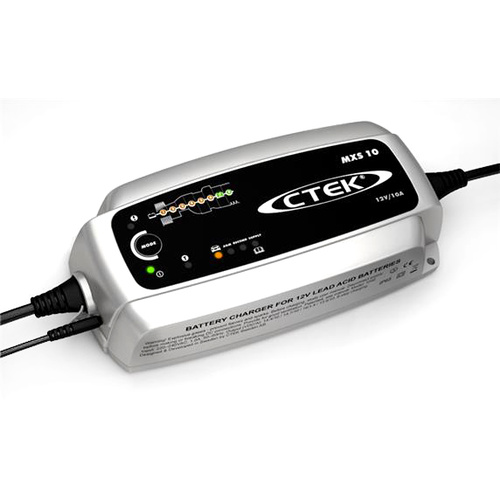

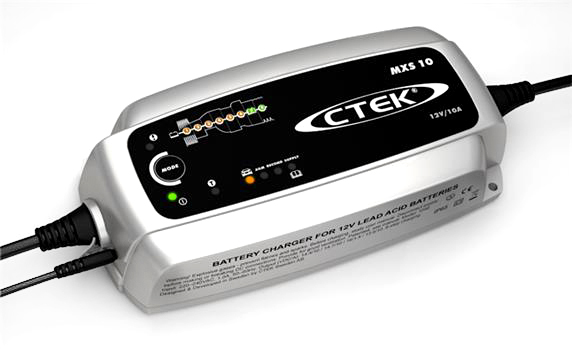

Offering state of the art 8 stage charging technology the CTEK MXS10 is the perfect charging solution for the workshop or the professional. Ideally suited for caravans, RV's, boats trucks and standard cars.

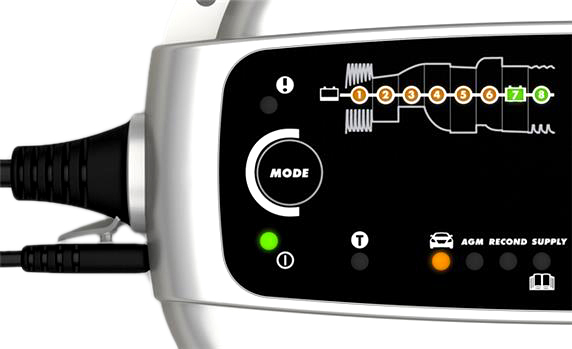

Featuring battery diagnosis that determines if a battery can receive and retain charge as well as a special reconditioning function that restores deeply discharged automotive batteries. The CTEK MXS 10 features a temperature sensor for optimised charging regardless of the weather (and temperature) conditions. It also has a power supply mode which allows the battery to be disconnected from the vehicle without losing important configurations. The unique display allows the user to follow the entire charging process.

The MXS 10 is a fully automatic 8-step automotive charger that delivers up to 10a to 12v batteries from 20-200Ahr and is suitable for maintenance charging up to 300Ahr. The charger is IP65 rate (splash and dust proof), designed to protect vehicle electronics, is non sparking is reverse polarity and short circuit protected.

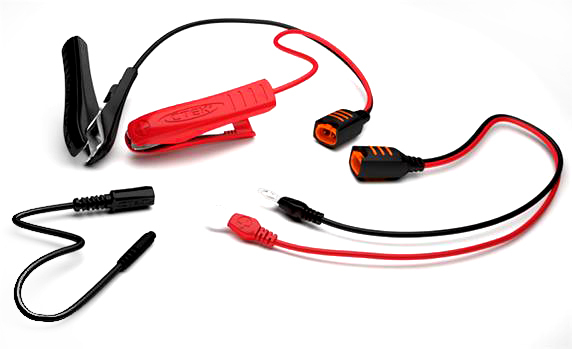

Supplied with CTEK Comfort M8 adaptor lead as well as CTEK comfort alligator lead.

Why would you chose this product?

Providing up to 10amps of output power, the CTEK MXS 10 is ideally suited for large batteries found in commercial vehicles or deep cycle batteries used in large house battery banks (up to 200ahr) in marine, RV and motorhomes. The CTEK MXS 10 is a sophisticated battery charging solution and is the perfect accompaniment to very expensive large deep cycle batteries banks that require careful maintenance.

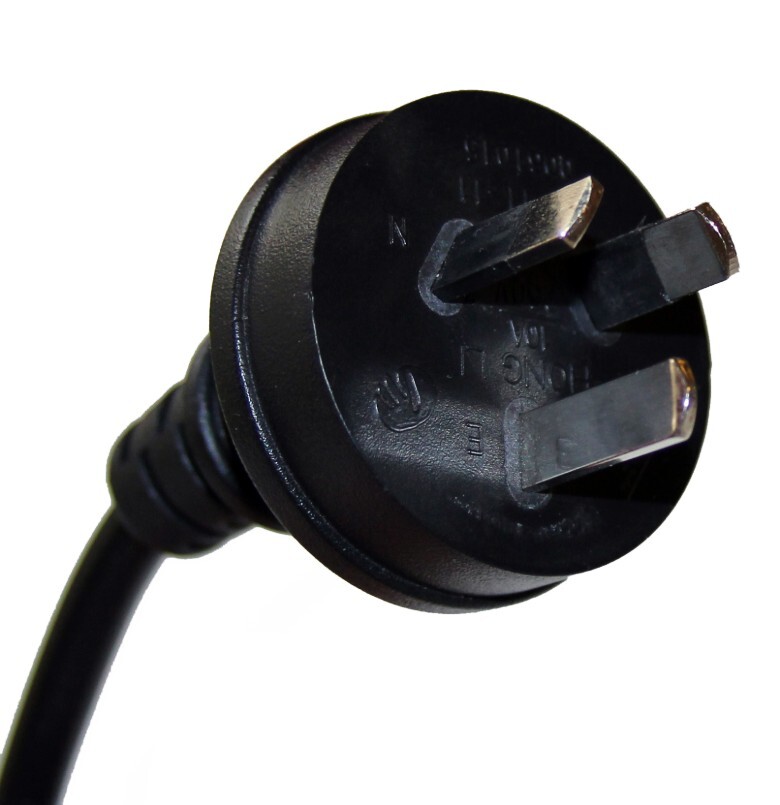

Input Voltage: 220-240v AC 50-60Hz
Charging Voltage: Normal 14.4v, COLD/AGM 14.7v, Recond 15.8v, Power Supply Mode 13.6v
Min Charge Voltage: 2.0v
Charging Current: 10a Max
Back Current Drain: <1ah / Month
Ripple: <4%
Charge Type: 8 step, fully automatic charging cycles
Battery Types: All Types of 12v Lead acid batteries (Wet, Gel, AGM, Ca/Ca and MF)
Battery Capacity: 20-200ahr, up to 200ahr
Dimensions: 197 x 93 x 49
Insulation Class: IP65
Weight: 0.8 Kg


Product Videos

Model # 56-823
Barcode # 7350009568234


CTEK offers 2 year manufacturer warranty on this product. Warranty will be void if:

Charger has been used with much higher current and or voltage than designed for and specified in models specifications sheet.
Clear signs of heat on any of the CTEK casing, cables or circuitry.
Used with incorrect voltage or incorrect battery types.
Visible signs of impact or water damage.
CTEK product has been opened by a non CTEK authorised engineer or agent.
