CTEK MXS 5.0 - 12v 5.0a 8 Stage Automotive Lead Acid Battery Charger

In Stock
Not available for pickup. Shipped within 24 hours.

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

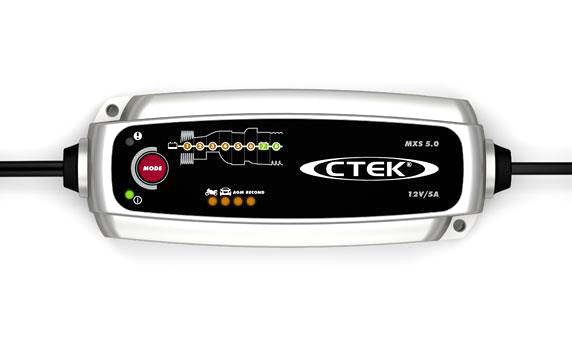

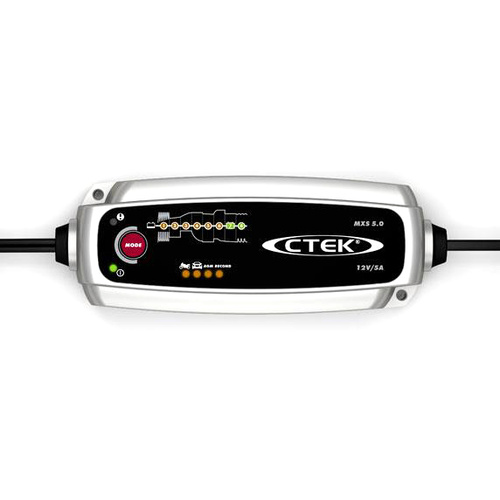

The MXS 5.0 is an advanced microprocessor controlled automotive battery charger with automatic temperature compensation, ensuring arrival battery charging in any condition. Delivering a maximum output current of 5.0amps, the MXS 5.0 is capable of charging lead acid batteries between 1.2ahr to 110ahr, commonly used in motorbikes, standard passenger vehicles, trucks and much more.

The MXS 5.0 adopts CTEK's unique battery diagnostic circuitry. Determining if a car battery is capable of retaining charge as well as a special reconditioning mode to revitalise deeply discharged lead acid batteries. The MXS 5.0 adopts a AGM function, providing slightly higher voltage for high performance AGM batteries.

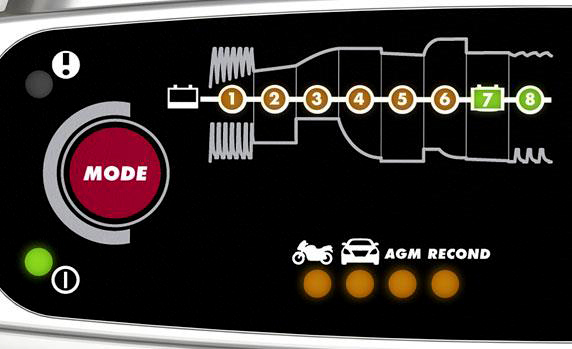

Patented Float/Pulse maintenance makes the MXS 5.0 ideal for long term maintenance. The entire process of battery testing, charging and maintenance is easily followed on the clear LED display.

Why would you chose this product?

The MXS 5.0 is a fully automatic "connect and forget" 12V charger with 8 charging steps and offers selectable SMALL BATTERY, and NORMAL BATTERY programs. The RECOND and AGM options operate individually or together in both SMALL BATTERY and NORMAL BATTERY programs providing great flexibility for the user. Wide charging range on all lead-acid battery types from 1.2Ah up to110Ah with additional maintenance capability to 160Ah. Splash proof and dust proof (IP65). The MXS 5.0 is easy and safe to use, protects vehicle electronics, is spark-free, reverse polarity protected and short circuit proof. The MXS 5.0 is a must have tool in any garage!.


Input Voltage: 220-240v AC 50-60Hz
Charging Voltage - Small / Normal: 14.4v
Charging Voltage - Cold/AGM: 14.7v
Charging Voltage - Recondition: 15.8v
Min Battery Voltage: 2.0v
Charging Current: 5.0a Max
Back Current: <1ah / Month
Ripple: <4%
Charge Type: 8 Stage, fully automatic
Battery Types: All types 12v Lead Acid batteries (Wet, MF, Ca/Ca, AGM and Gel)
Battery Capacity: 1.2-110ah and up to 160ah for Maintenance
Insulation Class: 1P65
Dimensions: 168 x 65 x 38
Weight: 0.6 Kg


Product Videos

Model # 56-987
Barcode # 7350009569873


CTEK offers 5 year manufacturer warranty on this product. Warranty will be void if:

Charger has been used with much higher current and or voltage than designed for and specified in models specifications sheet.
Clear signs of heat on any of the CTEK casing, cables or circuitry.
Used with incorrect voltage or incorrect battery types.
Visible signs of impact or water damage.
CTEK product has been opened by a non CTEK authorised engineer or agent.
