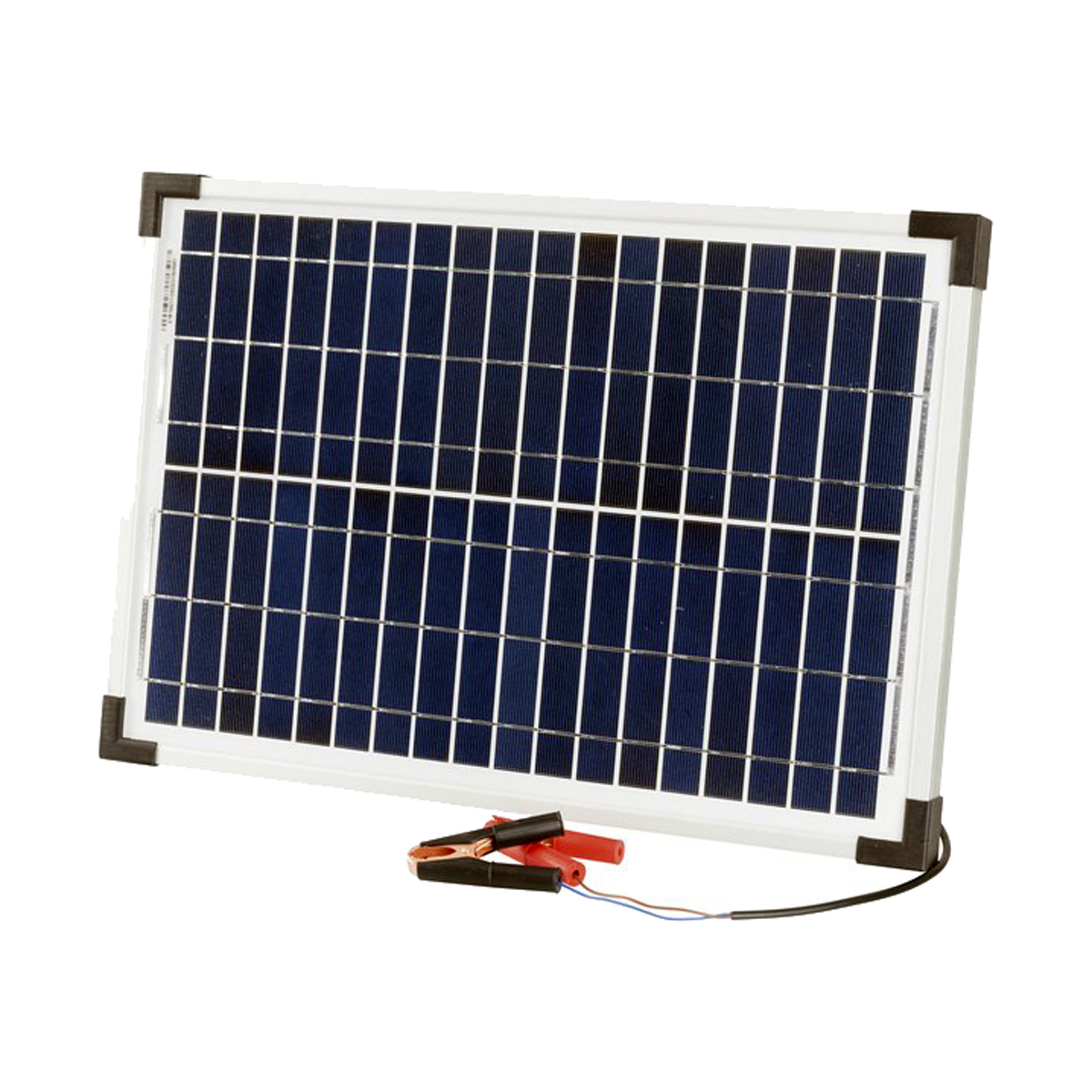

12v 20w Monocrystalline Solar Panel

$81.00
In Stock
Not available for pickup. Item shipped between 2-4 days.


Calculate Shipping



Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Our new generation monocrystalline solar panels are much smaller and thinner than our previous models. Now providing higher efficiency at a better price! The manufacturing process for this range uses 36 pieces of 156mm x 156mm A-grade solar cells cut into defined sizes with 4 grid lines. This process provides excellent performance under low light environments.

Each panel is designed to withstand harsh environmental conditions with a durable anodized aluminium frame and 3.2mm low iron tempered glass. The glass is anti-reflective and has a hydrophobic effect to resist dirt and dust, improving light absorption thereby preventing any needless power loss.

The junction box and bypass diodes stops the panel from overheating and suffering from the “hot spot effect”.  The entire range is easier to install with minimal ongoing maintenance and compatible with industry standard inverters and mounting systems.

This range of Monocrystalline panels are available in different sizes and ratings to suit many applications and budgets. They offer up to 25 year warranty. Conditions apply on the warranty and more info on each specific panels warranty can be found in the warranty tab.

Specifications:

Maximum power (Pmax): 20W
System Output Voltage: 12V
Open circuit voltage (Voc): 225V
Short circuit current (Isc): 1.21A
Voltage at max power (Vmp): 17.4V
Current at max power (Imp): 1.16A
Termination: Battery clamp
Dimensions: 520mm × 360mm × 30mm
Weight: 2.5kgm

(TBPAN03)

SKU TBPAN03
Barcode # 9319236205105
Brand

Powertech

12 Month Manufacturer Warranty
