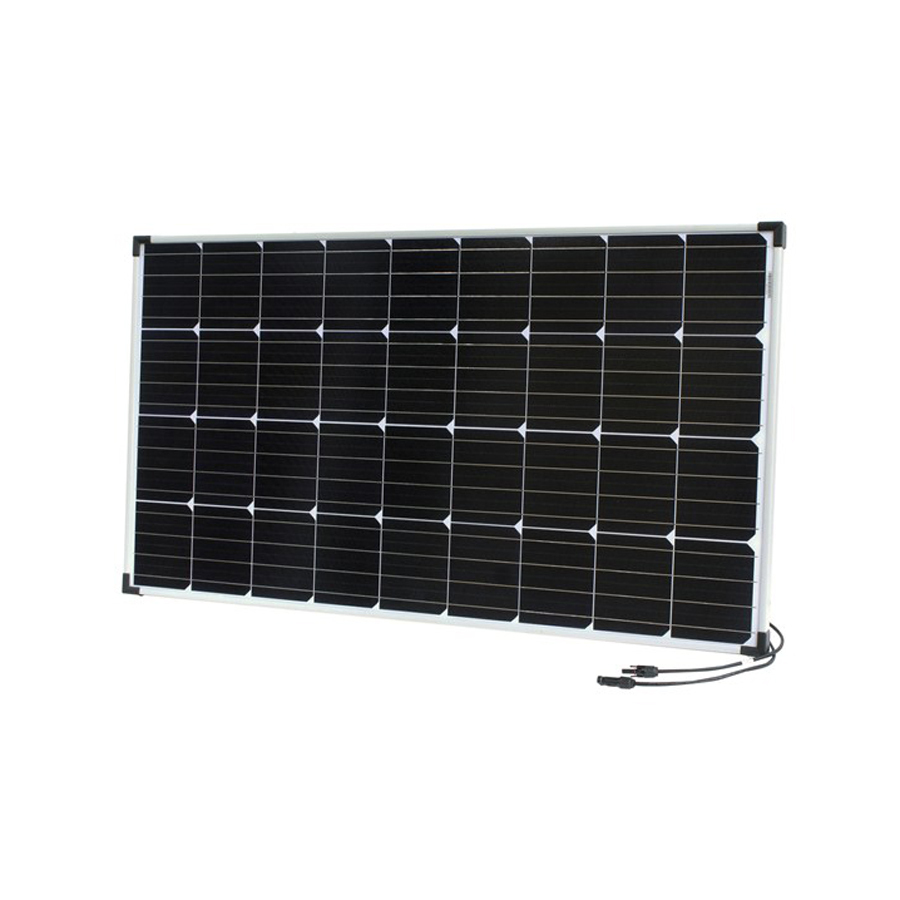

12v 170w Monocrystalline Solar Panel

$312.00
Sold Out


Calculate Shipping

These high-quality monocrystalline panel has a much higher efficiency and power output compared to previous Powertech range. Offering more power and better overall efficiency in the same physical size. Reducing the need of more panels, hardware, brackets and surface area in your custom solar installation.

The manufacturing process for this range uses 36 pieces of 156x156mm A-grade solar cells cut into defined sizes with 5 grid lines. This provides excellent performance under low light environments, producing 2-3% more power and higher kWh/kW ratio compared to older monocrystalline designs. The durable anodised aluminium frame holds the tempered glass panel, which features anti-reflective and a self-cleaning glass surface to reduce power loss from dirt and dust. The junction box and a bypass diode stop the panel from overheating and suffering from the "hot spot effect". MC4 PV on 900mm leads make them easy to install and daisy chain. A fantastic panel with minimal ongoing maintenance and compatible with industry standard inverters and mounting systems.

Specifications:

DC Voltage: 12V
Maximum Power: 170W
Length: 1480mm
Width: 686mm
Height: 35mm
Cable Length: 0.9m
Solar Panel Type: Monocrystalline
Open Circuit Voltage: 22.62V
Short Circuit Current: 9.47A
Voltage at Power Max: 18.85V
Current at Power Max: 9.02A
Power Connector: 4mm PV Connector (MC4 Style)

(INVT57)

SKU INVT57
Barcode # 9319236762554
Brand

Powertech

1 year warranty for materials and workmanship
20 years warranty for at least 80% output

Warranty void if:
Panel has been installed correctly and to manufacturer specification
Panel has had any signs of impact or physical damage
Manufacturers polarity and wiring instructions have not been followed
