Flush Mount 30A PWM Lead Acid and LiFePO4 Solar Charge Controller

In Stock
Not available for pickup. Item shipped between 1-3 days.

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Finally, a flush mount low profile solar controller for boats and caravan interiors. No more bulky unsightly components with wires hanging out in an already very compact area such as your cabin!

This controller features PWM charge algorithm with 3 sage (bulk, equalise and float) charging modes to keep your lead acid and LiFePO4 batteries in tip top condition.

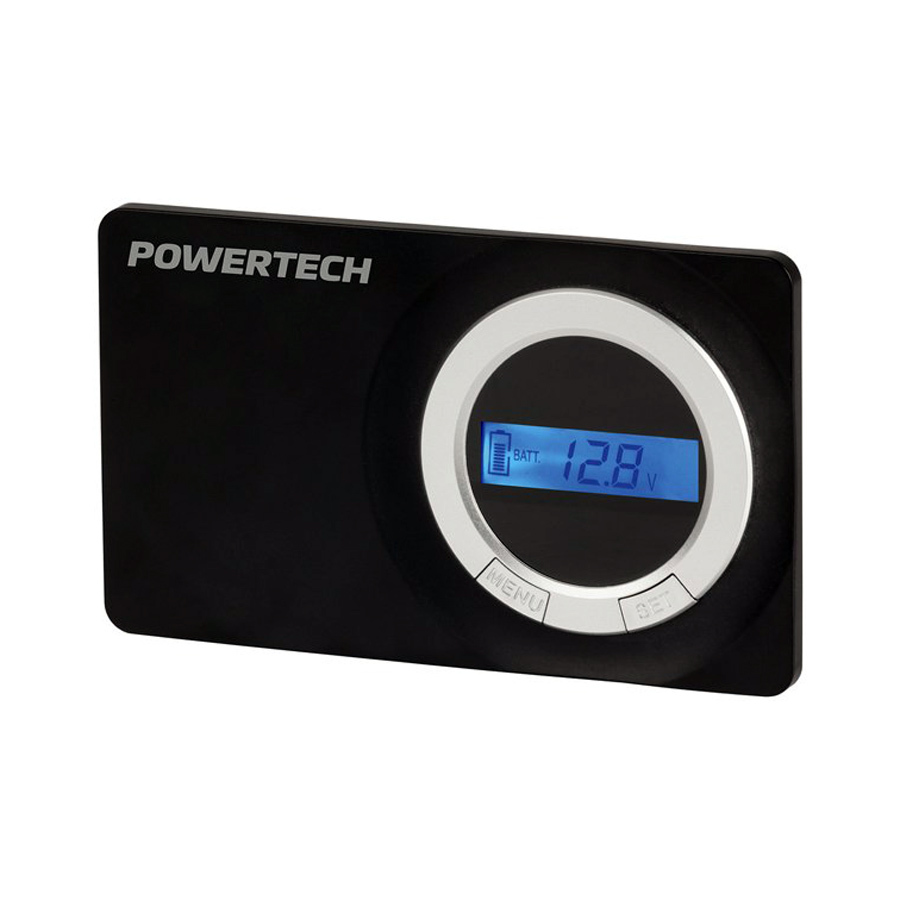

This units LCD display will provide real time energy information, operating parameters and fault messages. Navigation is very user friendly with two push buttons.

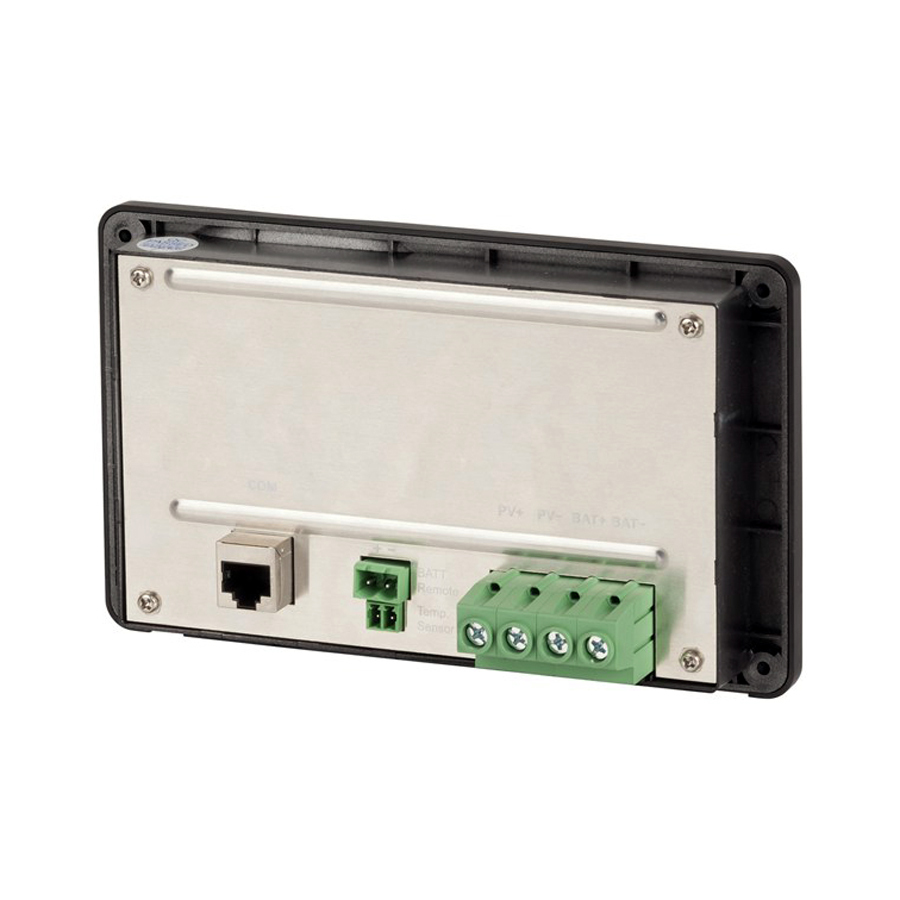

Installation is made easy with pluggable terminals on the rear for the solar panel, battery, and temperature sensor. An RS485 port enables you to connect a computer for programming purposes, or to a Wi-Fi module (sold separately) so you can control the system from your Smartphone. It has extensive electronic safety protection and is sure to keep your appliances and gadgets running when you're away from mains power.


Compatible with Gel, AGM and Fooled Lead Acid Batteries (8-32v)
Compatible with LiFePO4 (4s/12v or 8s/24v)
Compatible with Li-Ion (NiCoMn 3S/12V or 6S/24V)
Flush mount slim form factor
3 charge stages (Bulk, Boost, Equalize)
LCD screen with real-time energy stats, operational and fault message
Battery temperature compensation
10mm2/8AWG Recommended Cable Size (16mm2/6AWG Max)


Width: 179.0mm
Height: 106.0mm
Depth: 49.0mm
Weight: 3 kg
Mounting Cut-out: 96mm (w) x 158mm (h)




12 Month Manufacturer Warranty
