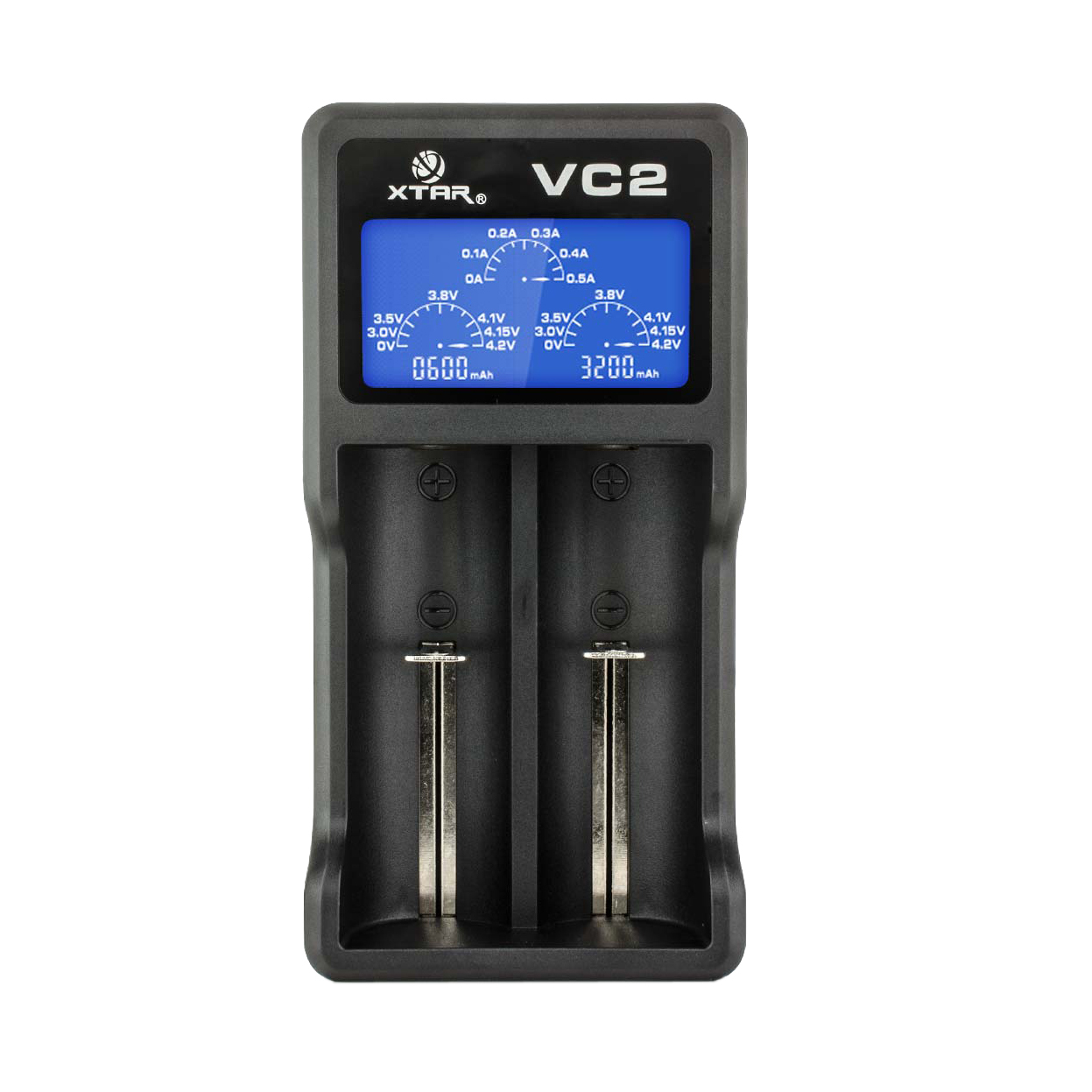

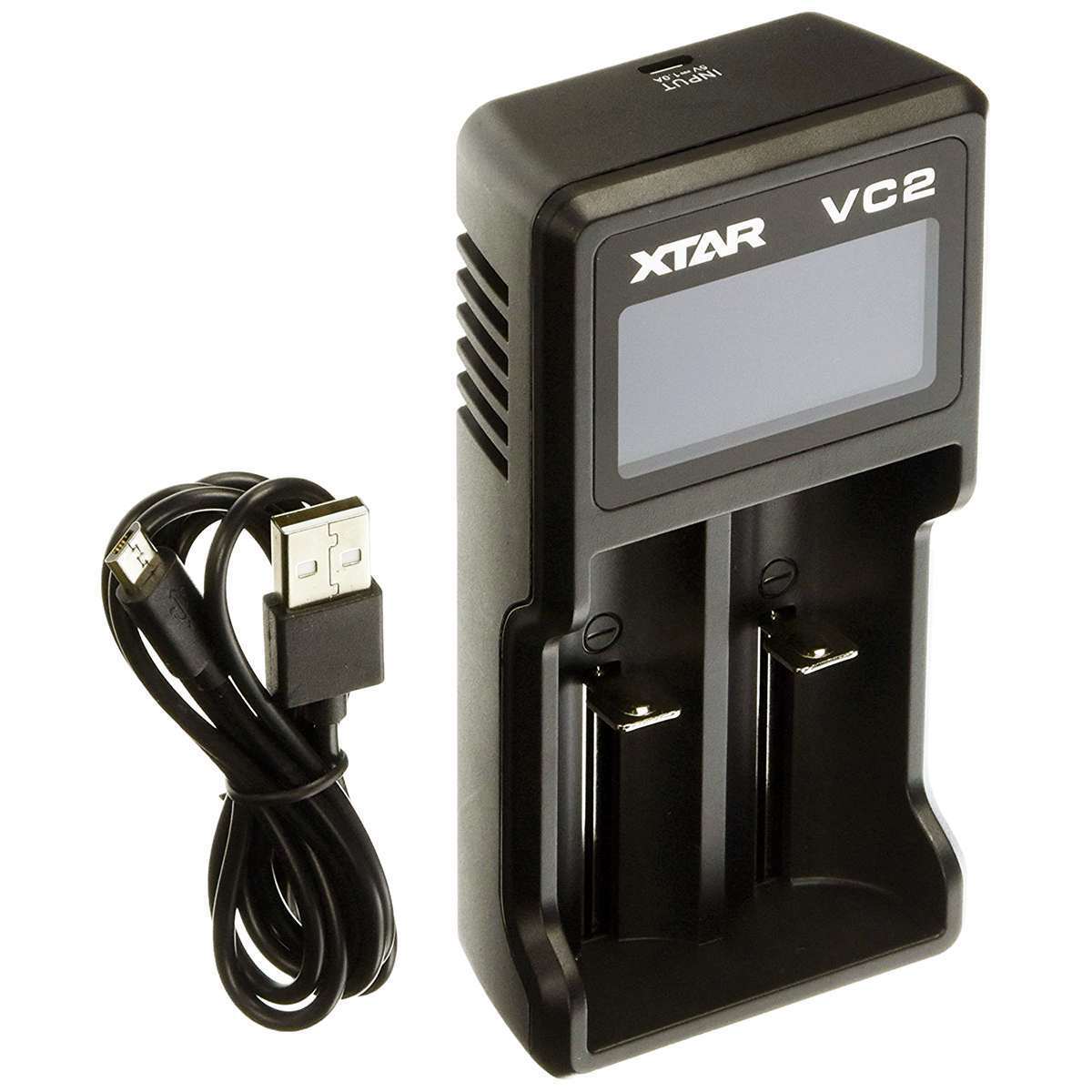

Xtar VC2 LCD Li-Ion and NiMH USB Battery Charger
Xtar VC2 is the latest addition to Xtar ground breaking Li-Ion battery management products. The new design now allows for charging normal NiMh batteries such as general household AA and AAA batteries as well as modern Li-Ion batteries. Not only does it charge all types of calendrical batteries, but it can charge them at the same time! The charger will apply correct voltage and current to match the battery in each of its charge slots.

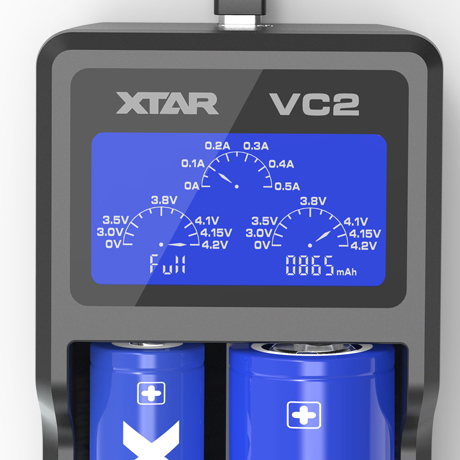

The VC2 features large LCD screen that provides information about the state of the batteries being charged as well as the charge process. Including battery voltage, charging capacity and charging current.
The VC2 takes the hassle out of battery charging, producing a truly set and forget solution. No more worrying bout batteries being over charged. The VC2 will automatically stop charging the battery when the battery is reached fully charged voltage.
Three stages charging (TC-CC-CV) to suit a variety of batteries and pro long battery life.
Soft start charge feature that will avoid sudden high current to the battery.
The LCD display will indicate "null" if it is a bad battery or "Err" when the battery is inserted in reverse.
Two independent slots that can charge any type of battery.
0v activation function can rescue your over-discharged batteries.
Compatible with any USB power including USB wall adaptors, cell phone chargers, solar panel, PC USB and much more.
Automatically terminate charging process once battery reaches fully charged voltage. Restarting charging if the battery voltage drops below set level.
Compatible Li-Ion Batteries
3.6v or 3.7 v Lion, IMR, INR and ICR batteries. 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 22650, 25500, 26650, 32650
Compatible NiMH Batteries
Standard NiMH household batteries. AAAA, AAA, AA.
Input Power: DC 5v 2.1a USB
Li-Ion CC Current: 0.5a +/-50mA, 1a +/- 80mA
Li-Ion Cutt Off Voltage: 4.2v +/- 0.05v
NiMh Pulse Charge Current: 0.5a +/- 50mah, 1a +/- 80mA
NiMh Cutt Off Voltage: 1.45v +/- 0.1v
Size: 131 x 66 x 33mm
Net Weight: 109g
