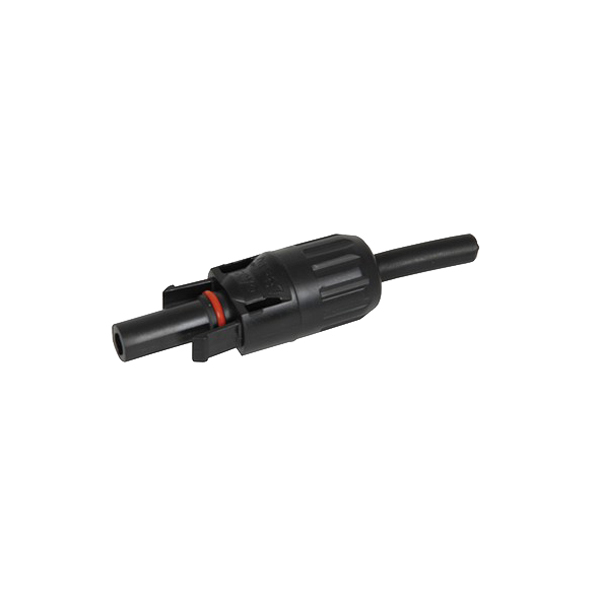

Waterproof Solar Panel Mount Connector 4mm Male

In Stock
Not available for pickup. Shipped within 24 hours.

Calculate Shipping

IP67 rated for maximum environmental protection, these photovoltaic (PV) system connectors are ideally suited to harsh installations such as solar panel arrays and other permanent outdoor applications. When matched with our solar power cables WH-3120 and WH-3122, you can leave your cabling out in the open with the knowledge that you will never have a bad connection or an oxidized power cable. Both panel mounting and in-line connectors are available to suit a wide range of system applications.


Rated voltage: 1000VDC
Rated current: 30A at 70 Degrees Celsius, 25A at 85 Degrees Celsius
Contact resistance: <5 milliohms
Temperature range: -40 - 90 Degrees Celsius
TUV certification: 2 PfG 1161/01.06


Barcode # 9319236943809
