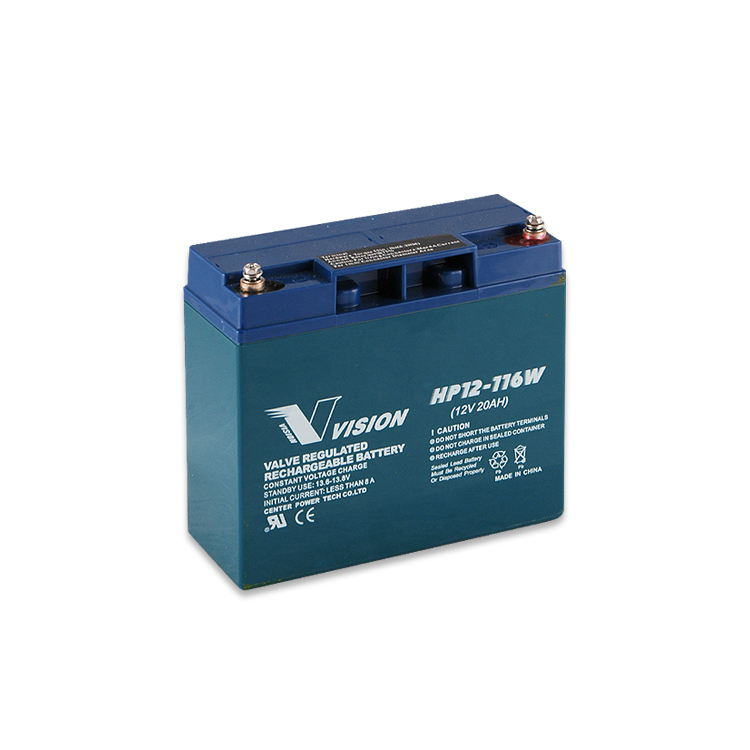

Vision 12v 20ahr 116w High Discharge AGM Sealed Lead Acid Battery

In Stock
Not available for pickup. Shipped within 24 hours.

Calculate Shipping

Vision HP/HF series AGM batteries offer much high discharge than conventional AGM 12v batteries. By optimum design of battery grids and plate paste formula, the HP/HF series can deliver up to 40% more power!


Positive and negative plates in lead-calcium tin alloy
Superior energy density and very high power output
Operates at a low internal pressure.
Gas Recombination
A recognised component of UL
Lead calcium grids for extended life Six months shelf life at 20oC
Power rang from 13W to 890W per cell for 10' @ 1.60Vpc
Designed life: HP-5 years/HF-10 years

Product Standards:

Compliant with international standards JIS C8702,BS 6290/4 and IEC 896/2
Classified as long life according to the Eurobat Guide/HF
Able to be shipped as non-hazardous cargo
The production facilities are certificated to ISO9001/ISO14000


Voltage: 12v
Capacity (20h): 20ahr
Length: 181
Width: 77
Height: 167
Total Height (inc Terminals): 167
Weight: 6.5 kg
Battery Chemistry: AGM

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.


Model # HP12-116W-X
Barcode # 2000000005997


12 Month Manufacturer Warranty
