Victor 86B 3 3/4 Digit Digital Multimeter With USB

WAS $89.00
RRP $89.00
NOW $59.00
SAVE 34%!
In Stock
Available for pickup or shipped within 24 hours.


Calculate Shipping



Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

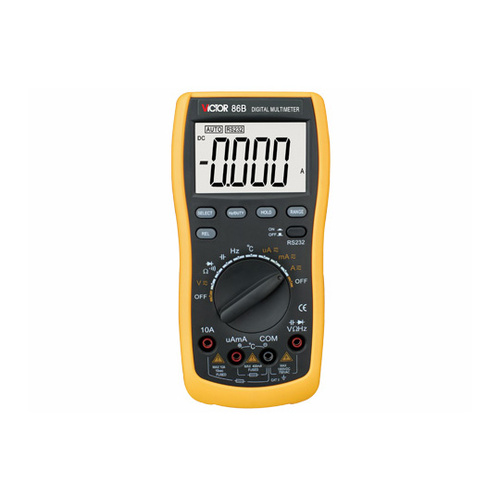

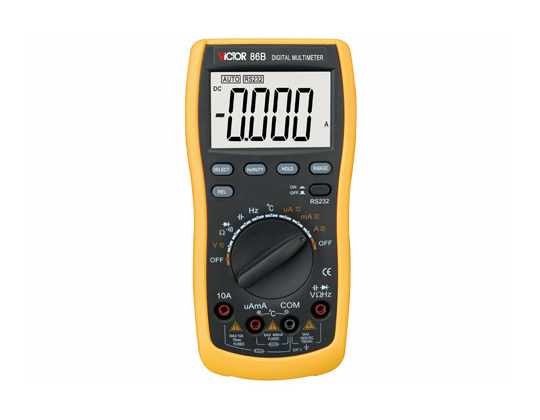

So many devices are compatible with USB and the humble multimeter is no longer an exception. The Victor 86B is our entry level USB compatible multimeter. It measures voltage, current, resistance, capacitance, frequency , temperature (Celsius only) and diode and continuity functionality. It's USB interface can connect to a computer using the included software. Victor 86B features a large LCD display, also capable of displaying analogue bar graphs.

Features:

Diode Test
Continuity Buzzer
Low Battery Indication
Data Hold
Auto Power Off
Bar Graph Display
RS232 Interface Jack
Function Protection
Shockproof Protection
Auto Range Operation

Specifications:

DC Voltage: 400mV / 4V / 40V / 400V / 1000V +/-(0.5%+4)
AC Voltage: 400mV / 4V / 40V / 400V / 750V +/-(0.8%+10)
DC Current: 400uA / 4000uA / 40mA / 400mA / 4A / 10A +/-(1.0%+10)
AC Current: 400uA / 4000uA / 40mA / 400mA / 4A / 10A +/-(1.5%+10)
Resistance: 400 Ohm / 4 Kiloohm / 40 Kiloohm / 400 Kiloohm / 4 Megaohm / 40 Megaohm +/-(0.8%+3)
Capacitance: 50nF / 500nF / 5uF / 50uF / 100uF +/-(2.5%+20)
Frequency: 4Hz / 40Hz / 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 30MHz +/-(0.1%+4)
Temperature: -20-1000 Degrees Celsius +/-(1.0%+5)
Frequency / Duty Cycle: 0.1% - 99.9%
Input Impedance: 10 Megaohm
Sampling Rate: 3 times / s
AC Frequency Response: 40-400Hz
Max. Display: 3999
LCD Size: 70 x 50mm
Power: 2 x AA (Not Included)
Product Net Weight: Approx. 350g
Product Dimension: 191 x 93 x 48mm

Package Includes:

Meter
Test Leads
Temperature senseorr
Instruction Manual

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(MPVIC86B)

SKU MPVIC86B
Model # 86B
Barcode # 2000000005843
Brand

Victor

12 Month Manufacturer Warranty
