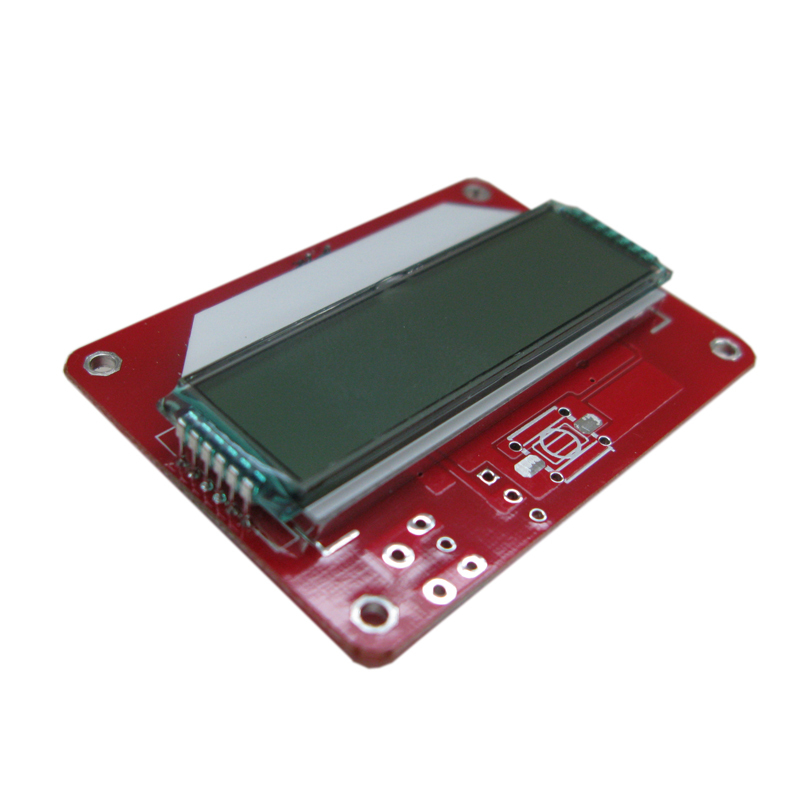

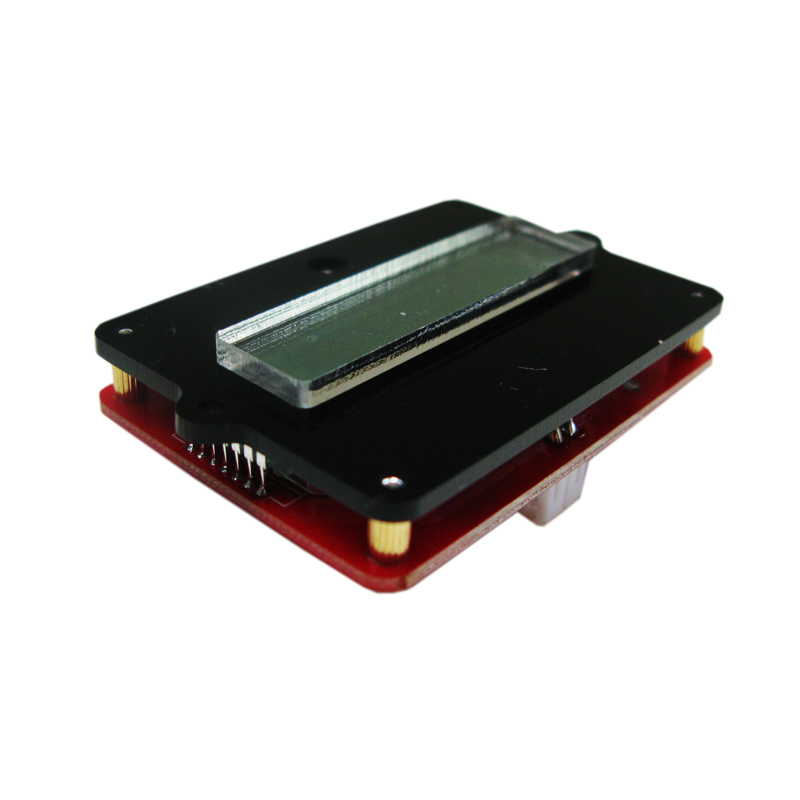

Universal Backlit LCD Lithium and Lead Acid Battery Fuel Gauge

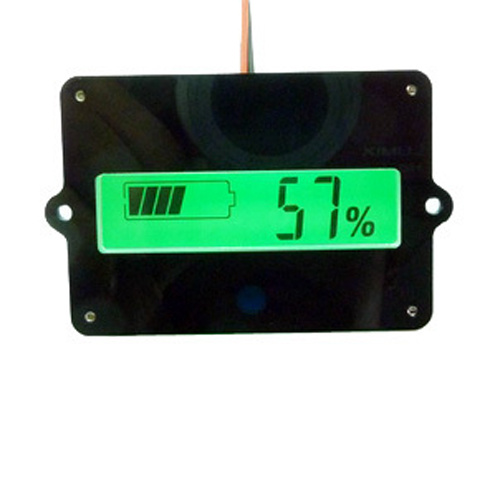

Backlit LCD display that will display a real time indication of remaining battery power and or running time. Similar to traditional fuel gauges, these displays are ideal for indicating remaining running time of battery in specialised battery packs used in DIY electric vehicles. They are compatible with a very wide range of battery types, chemistries and cell counts. Including Lithium Ion (Li-Ion), Lithium Polymer (Lipo) and Lead Acid. This model meter is not compatible with Lithium Iron Phosphate (LiFePO4) type battery packs.

The meter can be set to suit a variety of battery types and voltages.

Features:

Compatible with many battery types and voltages
Wide input voltage
Optional sleep function
Ultra-Low power consumption

Compatible Battery Types:

Lead Acid 12v, 24v 36v, 48v
Li-Ion and Lipo 2-14 Cells 7.2v -55v)

Specifications:

Operating Voltage: 8-63v
Working Power Consumption (inc Back Light): 5mA
Standby Power Consumption (Back Light off): 110uA
Sleep Power Consumption: 10uA
Voltage Accuracy: +/- 2%
Backlit Trigger Voltage: 100-300mV
LCD Display Dimensions: 43 x 12mm
Overall Dimensions: 53 x 38mm

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
