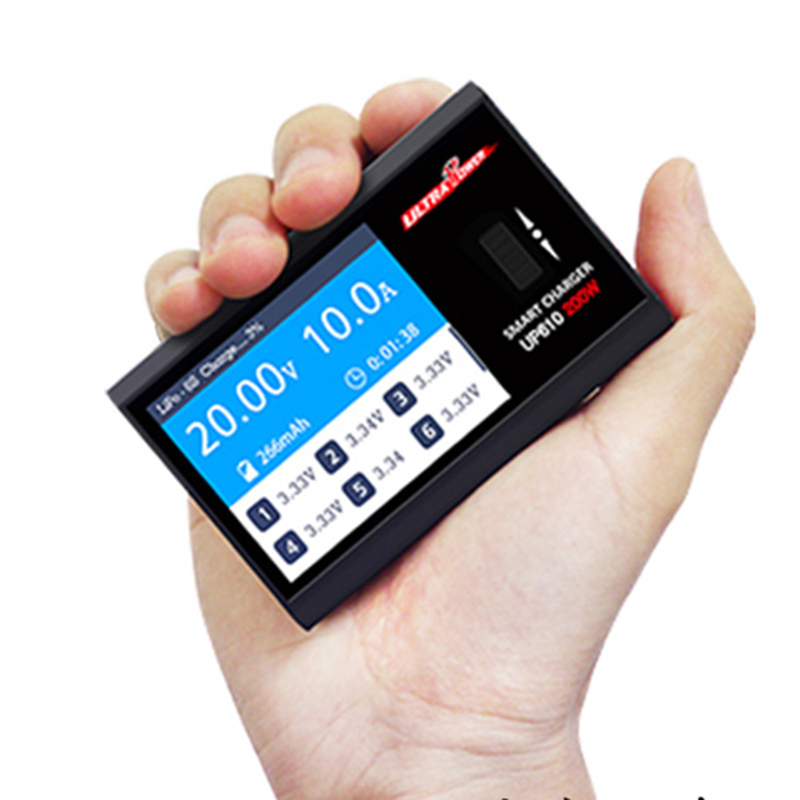

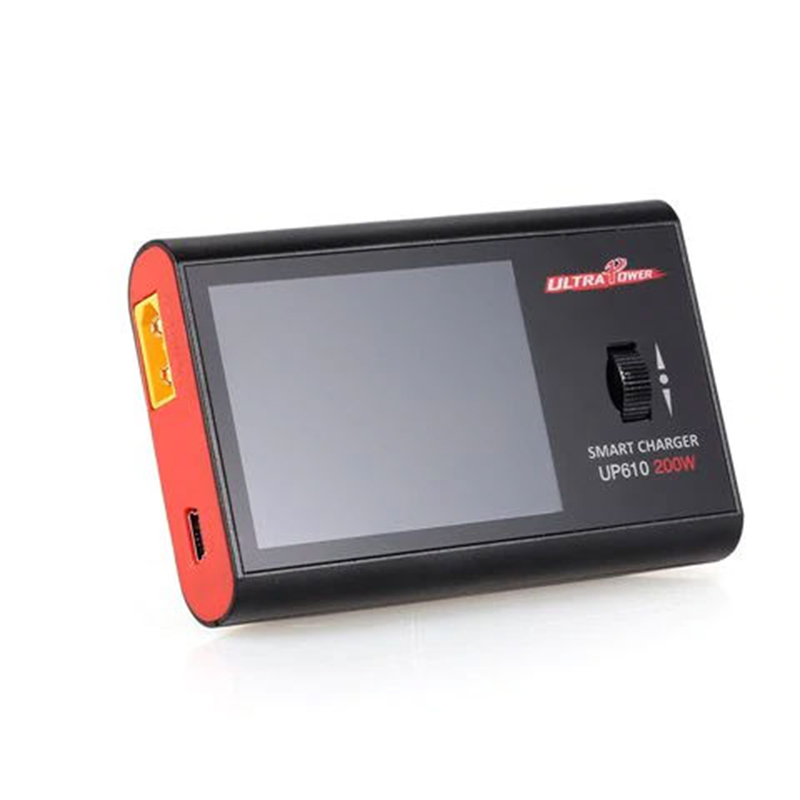

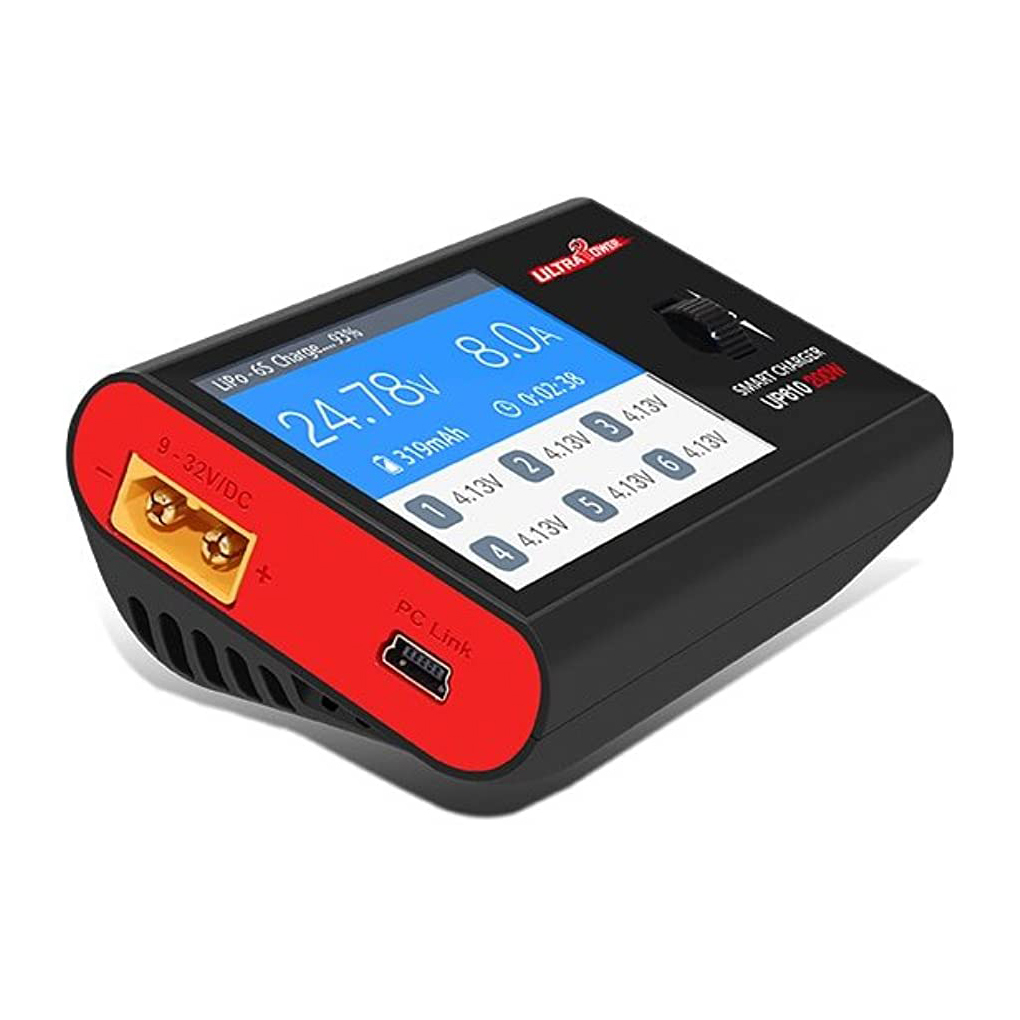

Ultra Power UP610 200w 10a DC Battery Charger Balancer

Ultra compact and ideal DC battery charging solution for smaller batteries or if you are looking for an easy to use smart battery balancer out in the field.

This model has a wide operating voltage of 9-32v and can balance charge up to 6 cell Lithium or up to 16 cell NiMH (or NiCD) battery packs.

The unit features a 2.4 inch IPS screen that will provide numerous metrics of the battery charging status. Per cell voltage, overall voltage, input voltage, power consumption and much more.

Features:

IPS screen for ease of use
Compatible with nearly all rechargeable batteries
Up to 6 cell individual cell balance charging
XT60 input and output connector
Wide input voltage
200w max power

Specifications:

Input Voltage: 9-32v DC
Max Charge Power: 200w
Discharge Power: 8w
Charge Current Range: 0.1-10a
Discharge Current Range: 0.1-3a (<8w)
Balance Curent: 500ma / Cell
Lithium Battery Types: Li-Ion, Lipo, LiFePO4, LiHV
Other Battery Types: L:ead Acid, NiCD and NiMH
Lithium Cell Count: 1-6s
NiMH / NiCD Cell Count: 1-16s
Lead Acid Cell Count: 1-12s (2v - 24v)
Screen Size: 2.4inch 320x240 IPS LCD
Nety Weight: 108g
Dimensions: 87mm x 57mm x 41mm
