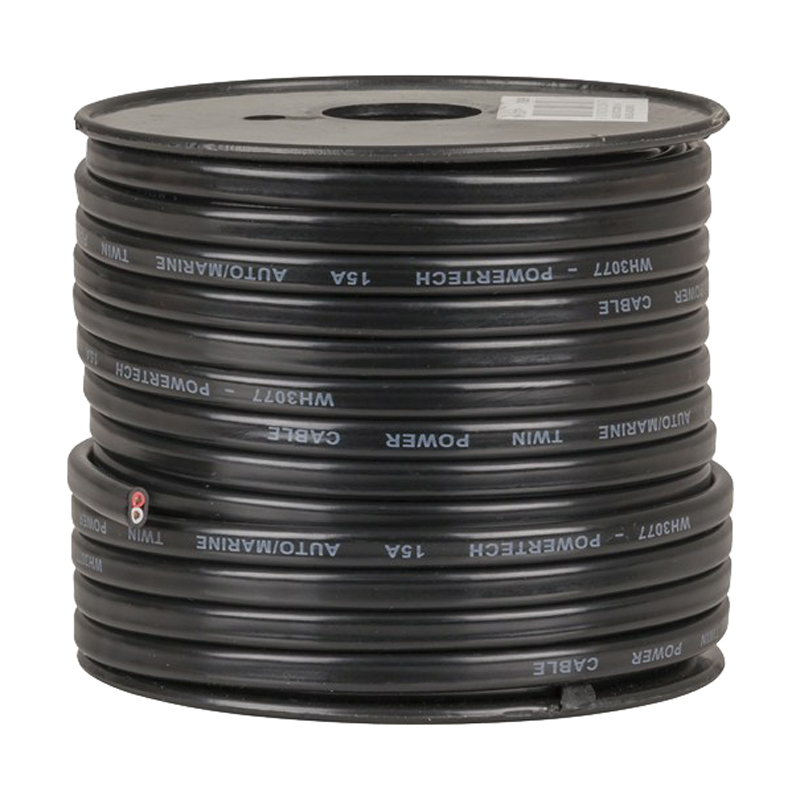

Twin Core Power Cable 15a 30m Roll

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Suitable for automotive and marine applications. PVC insulated white and red with black PVC outer jacket. 30m roll rated at 15a.

Specifications:

Resistance at 20 Degrees: 0.0123 ohm/m
Max temp: 80 Degrees
Current capacity: 15A
Stranding: 2/26 x 0.2mm
Insulation: PVC
Wire Roll Length : 30.0m
AWG : 16
Wire Outer Diameter : 3.2mm
Wire Conductor Overall Diameter : 1.53mm
Wire Resistance per Linear Metre : 0.0108 Ohm
Wire Core Material : Tin Plated Copper

Please Note:

Mr Positive does not accept returns / change of mind refunds for any of our electrical wire and wire rolls. Please ensure that the specifications (gauge, power rating, number of cores, etc.) we list for this product are suitable for your application before placing an order.

(TBF05)
