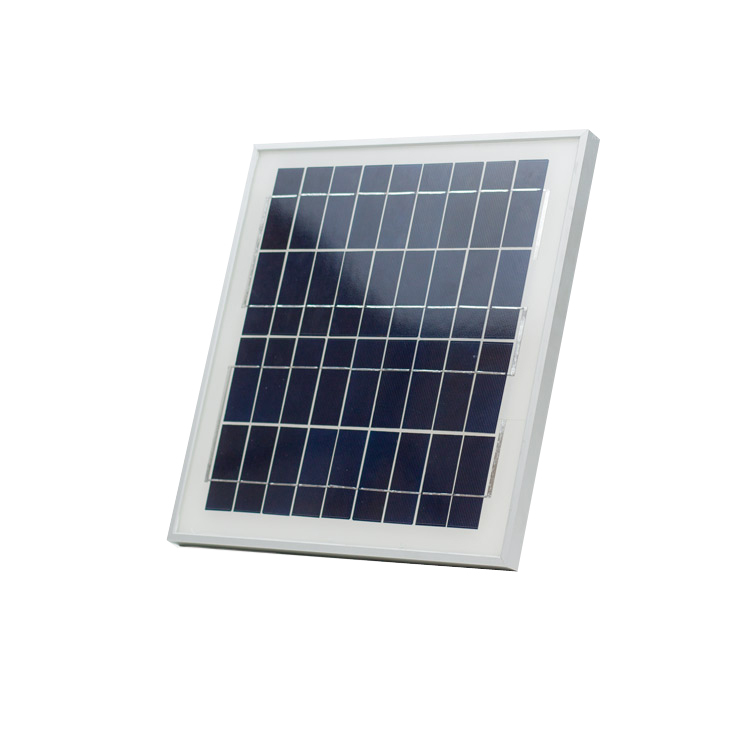

Suntellite 15w Polycrystalline Solar Panel

$61.00
Sold Out

This product has been replaced.

This product has now been discontinued. We have replaced it with Neuton Power 12v 15w Polycrystalline Solar Panel. This is a superior quality product at a similar price.

Suntellite Polycrystalline panels suitable for harsh NZ conditions. Our range of Suntellite Polycrystalline modules are available in a wide range of power ratings to suit most DIY renewable energy applications. Suitable for campervans and RV, sheds and huts, holiday homes and much more.

Features:

0-+3% positive tolerance for mainstream products
Withstand wind loads and snow loads (5400Pa)
Anti-reflective highly transparent, low iron tempered glass
Transmission rate 3.18%
5 year mechanical warranty

Specifications:

Max Power (Pmax) 15wp
Optimum Operating Voltage: (Vm): 17.19Vm
Optimum Operating Current (lm): 0.87a
Open Circuit Voltage: (Voc): 21.7v
Short-circuit Current (Isc): 0.95a
Cell Efficiency: 17.10%
Module Efficiency: 15.37%
Solar Cell: Poly-crystalline
Output Tolerance (Pmax): 0-3%
Temperature Cycling Range:40-85 Degrees Celsius
NOCT: 47+/-2 Degrees Celsius
Temperature Coefficients of ISC: +(0.053+/-0.01)%/K
Temperature Coefficients of Voc: -(0.35+/-0.01)%/K
Temperature Coefficients of Pmax: -(0.40+/-0.05)%/K
Dimensions (HxWxD): 368mm x 355mm x 20mm

(SUNT01)

SKU SUNT01

5 ear mechanical warranty
25 year linear warranty to 70% power output
