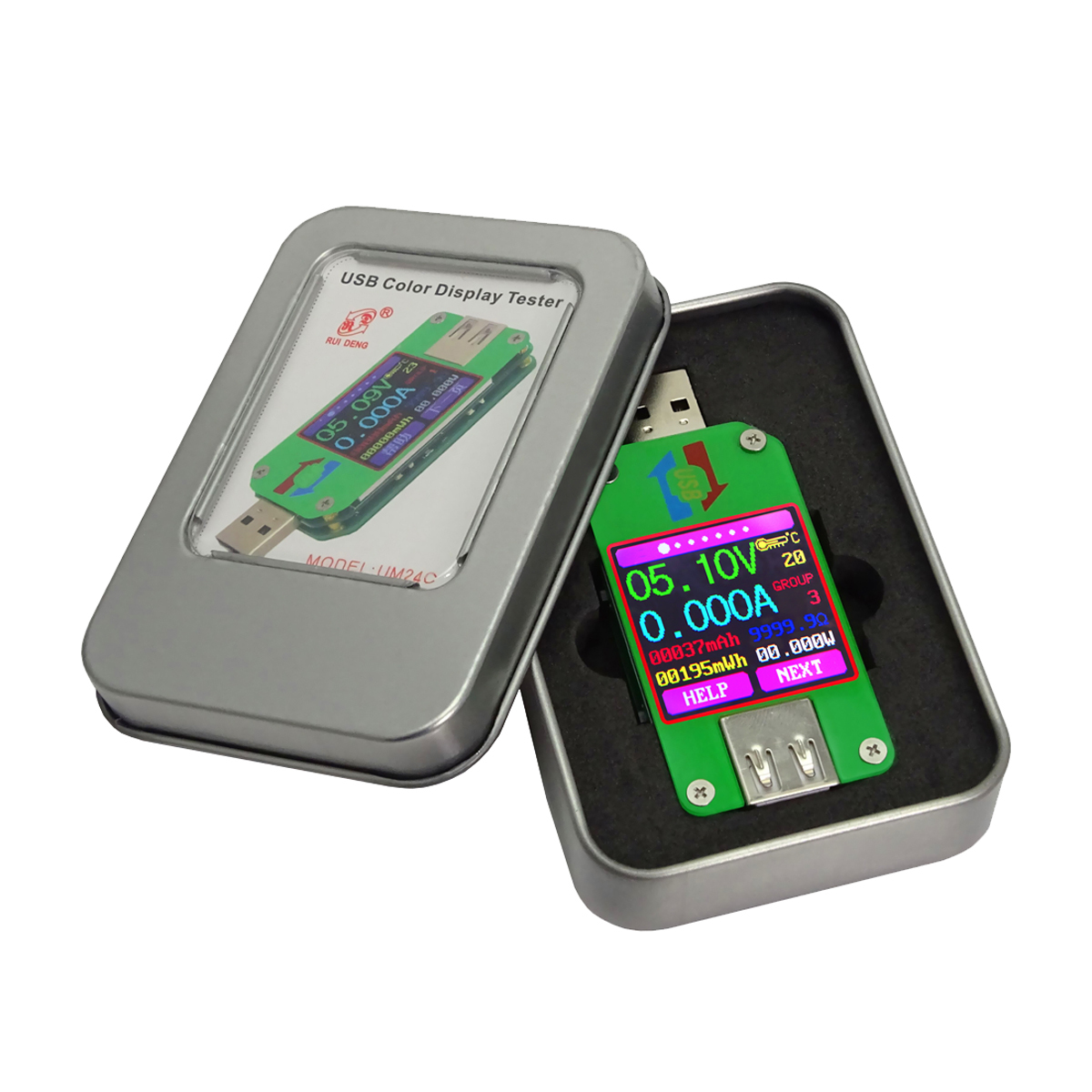

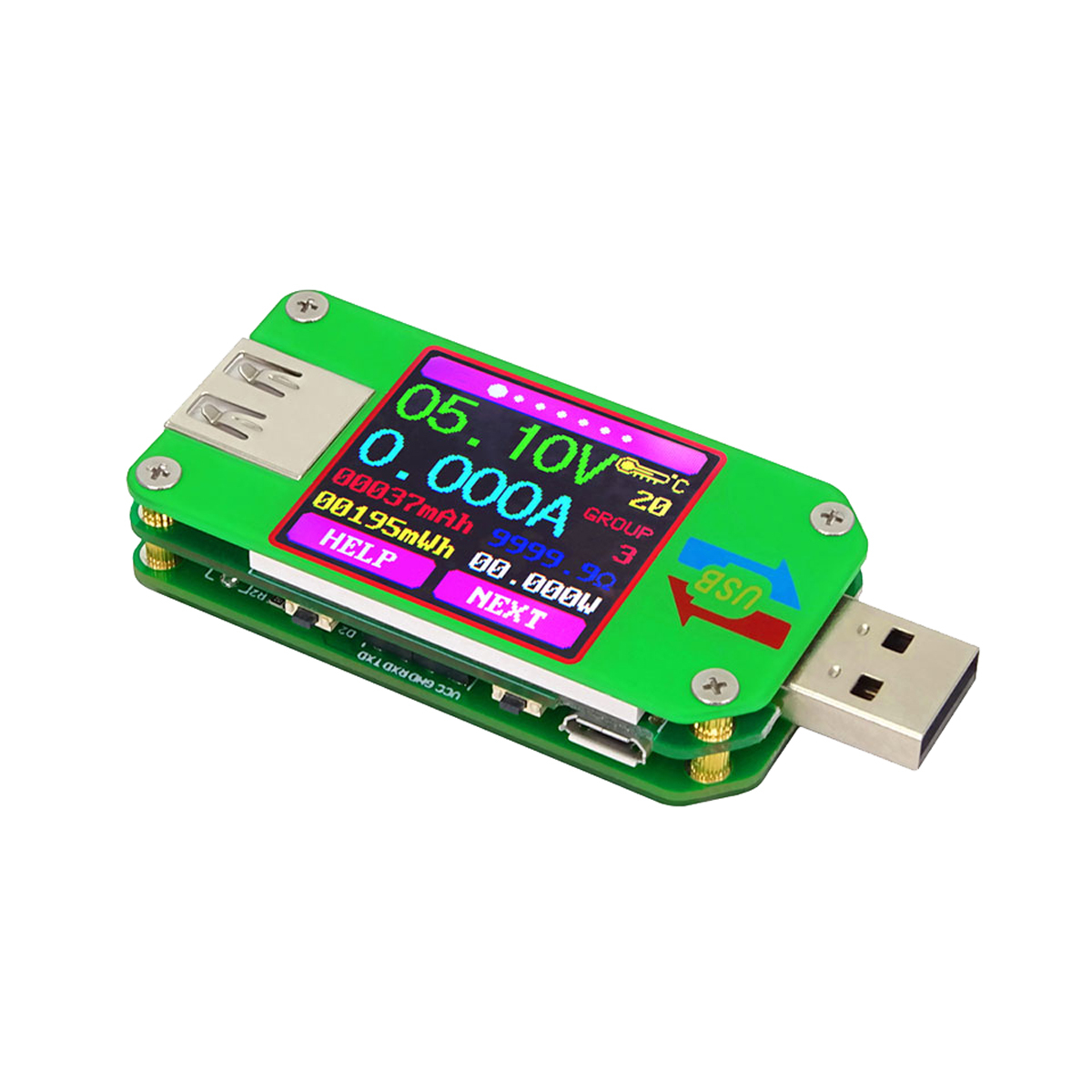

The UM24 is a sophisticated USB power analyser and data logger. Featuring a large LCD display that provides unparallel data on any Type-A USB socket. User can measure voltage, current (when charging a device), Capacity, Power (Watts and Watt Hours) as well as plot graphs and much more!
Use this to analyse the power level of your USB charger, car cigarette lighter or even measure actual capacity of your power bank. Many power banks sold on international and local auction style sites list outrageous capacities that defy the laws of physics. Now you can measure the total tank capacity in a very precise way and produce an actual number.
This meter will also detect Quick Charge 2.0 and Quick Charge 3.0 as well as measure the impedance of USB cables.
Essential in checking the quality of USB cables, car chargers and general USB chargers before using them with your expensive portable devices. Many economical cigarette lighter USB chargers and AC USB chargers don’t provide clean power and may damage your device and or reduce your battery life with frequent use.
Data from the unit can be viewed on a PC for further analysis.
Voltage, Current, Power and Capacity logging
View data on a PC
Screen can be rotated
10 Memory functions
Large dimmable LCD display
Quick Charge 2.0 / 3.0 detection
USB cable impedance testing

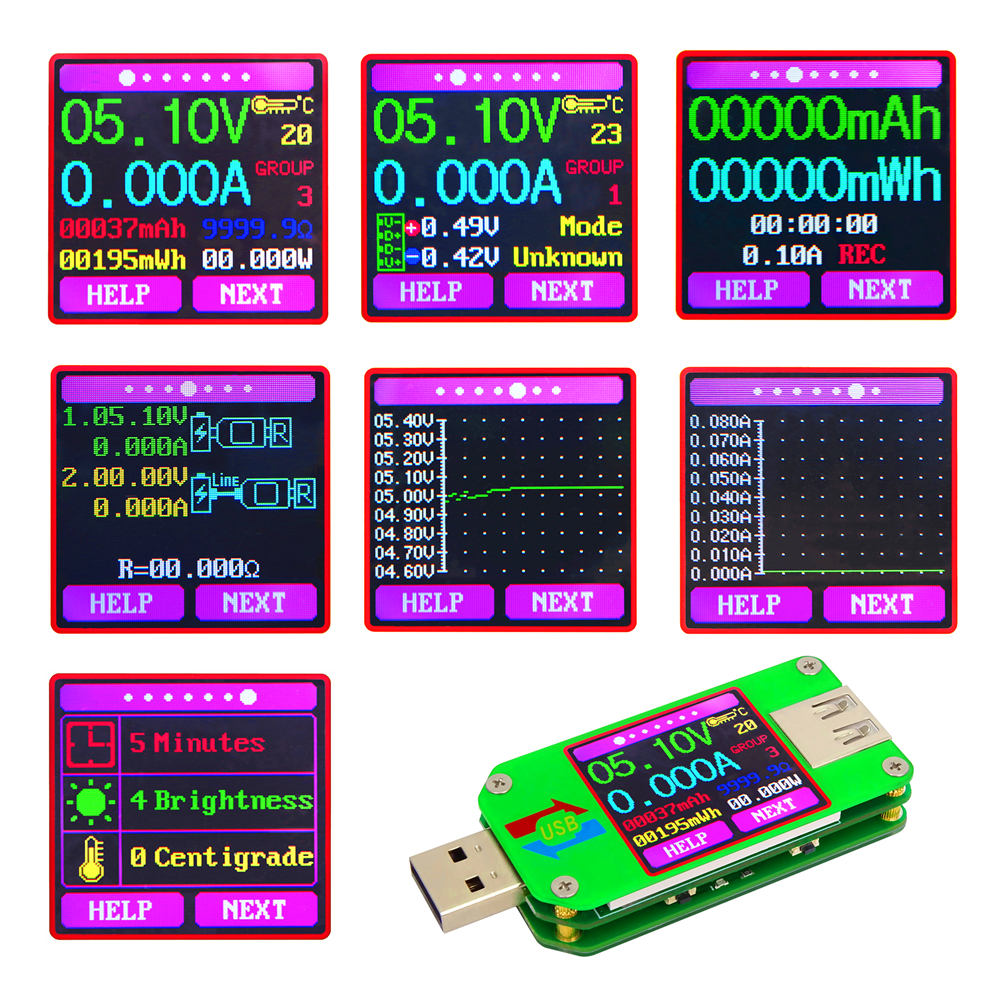

Plot graphs based on data generated
Voltage Range: 4.5-24v
Voltage Resolution: 0.01v
Current Range: 0-3a
Current resolution: 0.001a
Capacity Range: 0-99999mah
Energy Range: 0-99999mWh
Impedance Range: 1.5-9999.9 Ohms
Temperature Range: -10-100 Degrees C
Time Measurement Range: 0-00h 59min 59 sec
Voltage Graph Range: 0.45-24v
Current Graph Range: 0-3.00a
Display Screen 1.44inch colour LCD
Refresh Rate: 2Hz
Size: 72mm x 32mm x 11mm
Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
