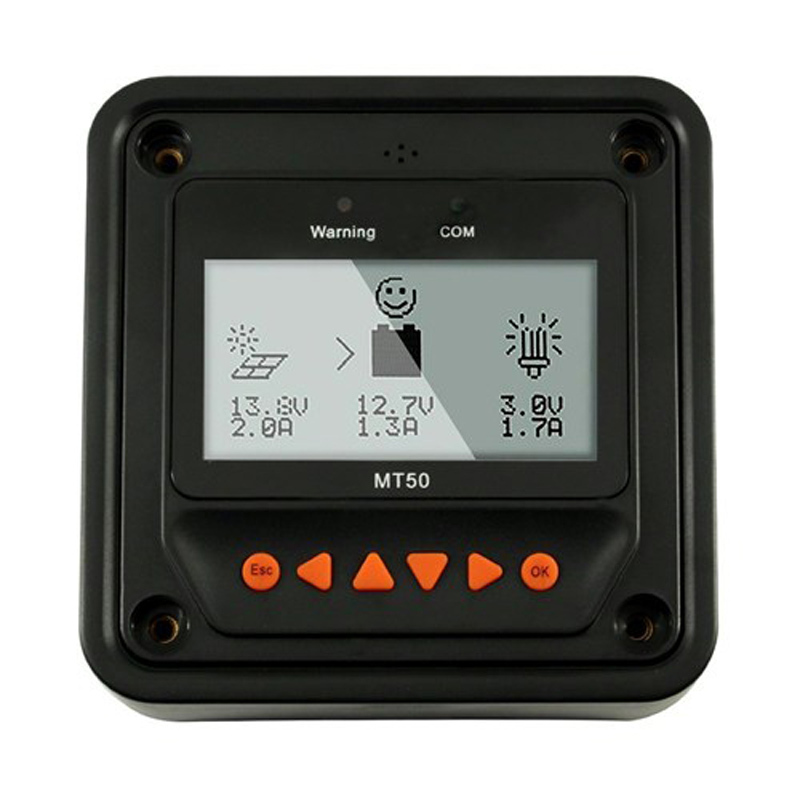

Remote Status Display for Li and SLA MPPT Charge Controller

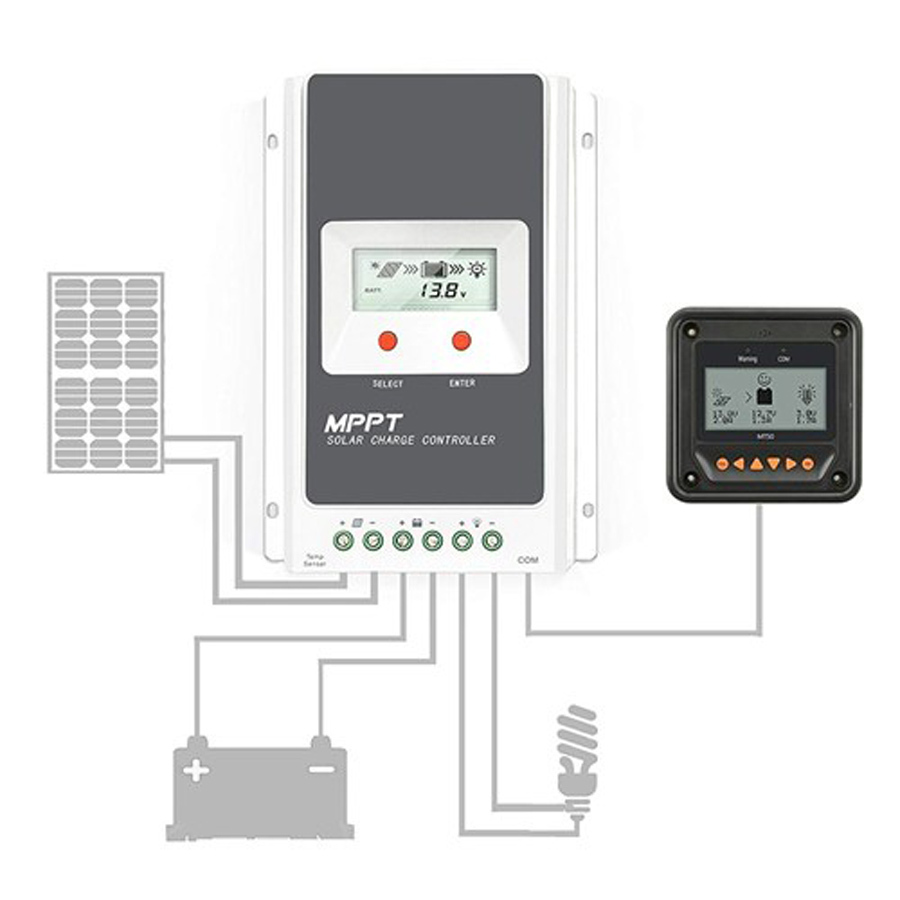

This module is specifically designed to work alongside our Powertech 20a MPPT Lithium and SLA Solar Charge Controller (Mr Positive part number CHGT09). Providing remote display and functionality. Ideal solution when the solar controller needs to be installed out of the way or in hard to reach areas.

Features:

Automatically identifies the controller, and displays relevant parameter data
Large-screen informative LCD displays all the operating data and system working status
Simple and convenient operation
Real-time alarm of failure information
Longer communication distance based on RS485
Diversified load control modes: Manual Control, Light ON/OFF, Light ON+ Timer, Time Control
Battery type selection: Gel, sealed, flooded and User(programmable)
Programmable parameters
Energy statistics display function

Specifications:

DC current Rating: 65.0mA
Height: 114.0mm
Depth: 114.0mm
Weight: 230.0g

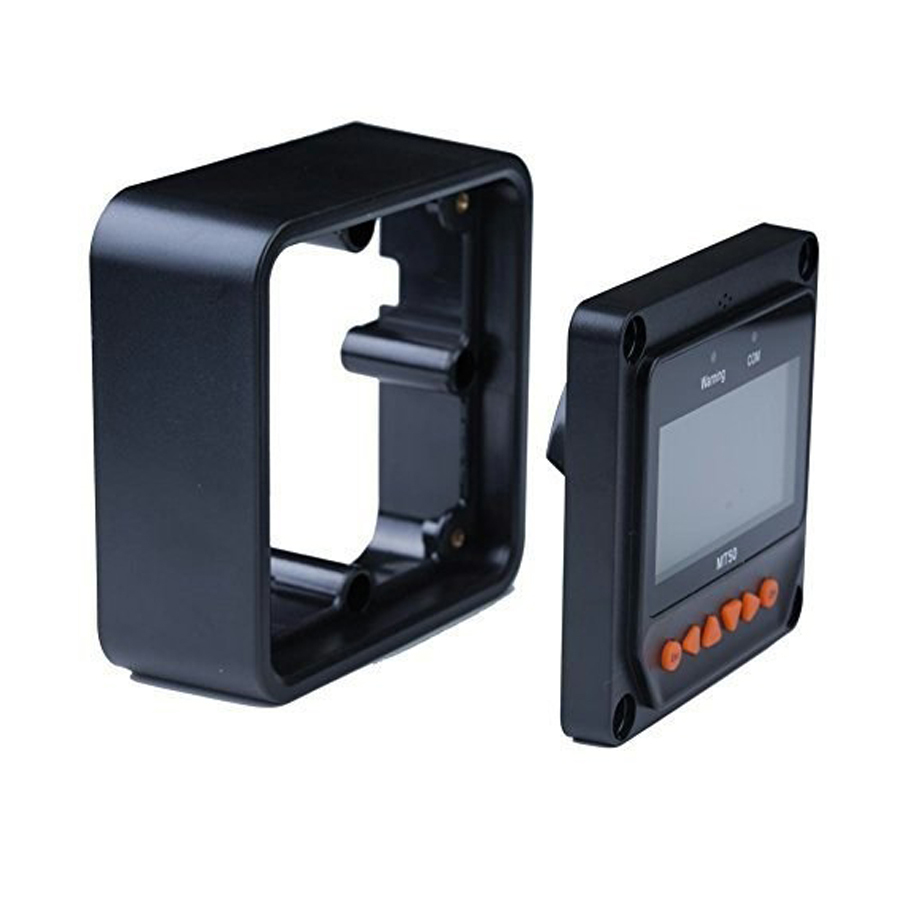

Faceplate Dimensions: 98 x 98mm
