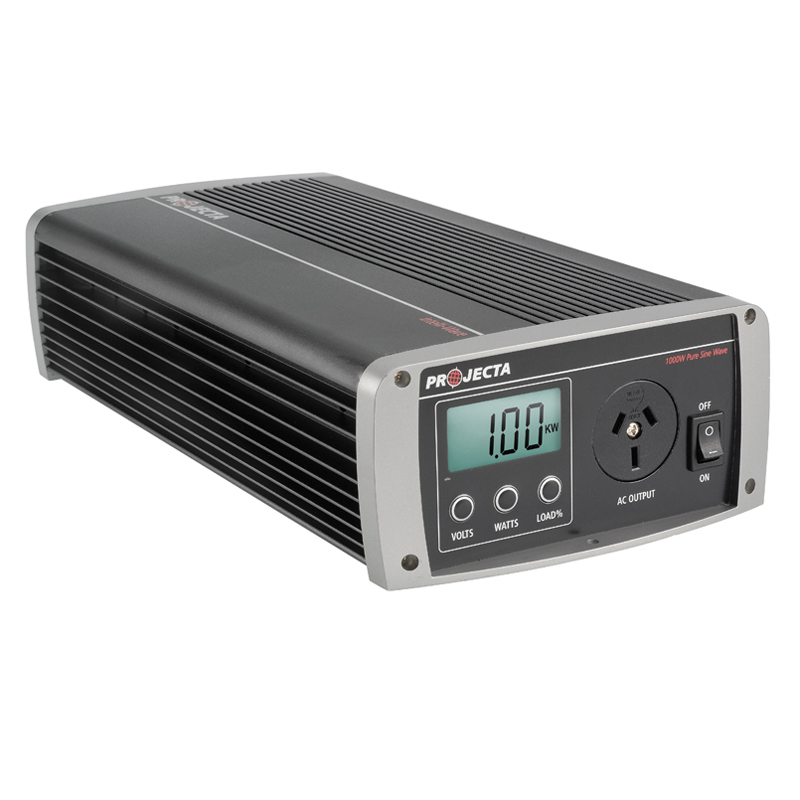

Projecta IP1000 12v 1000w Pure Sine Wave Inverter

In Stock
Not available for pickup. Item shipped between 2-4 days.

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

With a peak power output of an astonishing 2000W, the IP1000 is the ideal inverter for powering all your electrical appliances that rely on ultra clean power. Ideal for permanent installation, this sophisticated inverter is perfectly suited to caravans and trade requirements.

Projecta sets the benchmark for others to follow with their range of Intelli-Wave invertors. Adopting pure sine wave technology, essential for sensitive electrical components such as LCD displays, game consoles, high end Hi-Fi components and medical equipment. Ultra clean power delivery, rugged construction and no more interference from the DC to AC conversion process.

Projecta's Intelli-Wave range of modified sine wave invertors all feature fully isolated design. Fully isolating the DC (and therefore battery posts and vehicle chassis) from the 240v AC circuit and are designed to Australian AS4763 standards.

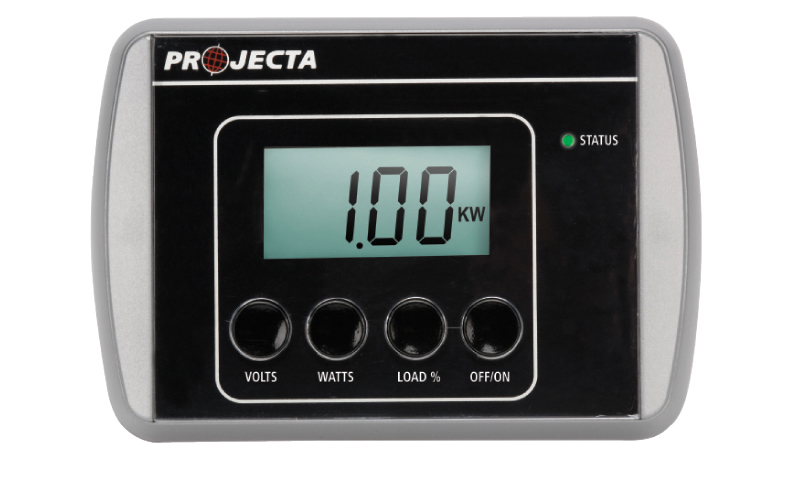

The Projecta IP1000 includes a remote control display. Allowing the inverter to be mounted flash to a surface, out of sight.


Input: 12v DC Battery / Vehicle (9.75-15.5v DC)
Input Current: (Max DC Amps): 100a
Remote Standby Current Draw: 2ma
Output: 240v AC 50hz
Continuous Power: 1000w
Peak Power: 2000w
Inverter Classification: Equipotent ally Bonded Inverter (EPB)
Output Waveform: Pure Sine Wave
Efficiency: 85-90%
Low Battery Alarm / Shutdown: Alarm 10.25v / Shutdown 9.75v (+/- 0.2v)
Cooling fan: Automatic Temperature Controlled
Thermal Shutdown: 65 Degrees Celsius
Replacement Fuse: Standard Auto Blade
Fuse Quantity and Size: 220a (4 x 40a and 2 x 30a)
Size: 360mm x 168mm x 81mm
Weight: 3.2Kg


Model # IP1000
Barcode # 9315219919007


24 Month Manufacturer Warranty
