PCM For 3.6v-3.7v 1s Li-Ion Battery 2.5a

In Stock
Not available for pickup. Shipped within 24 hours.

Calculate Shipping

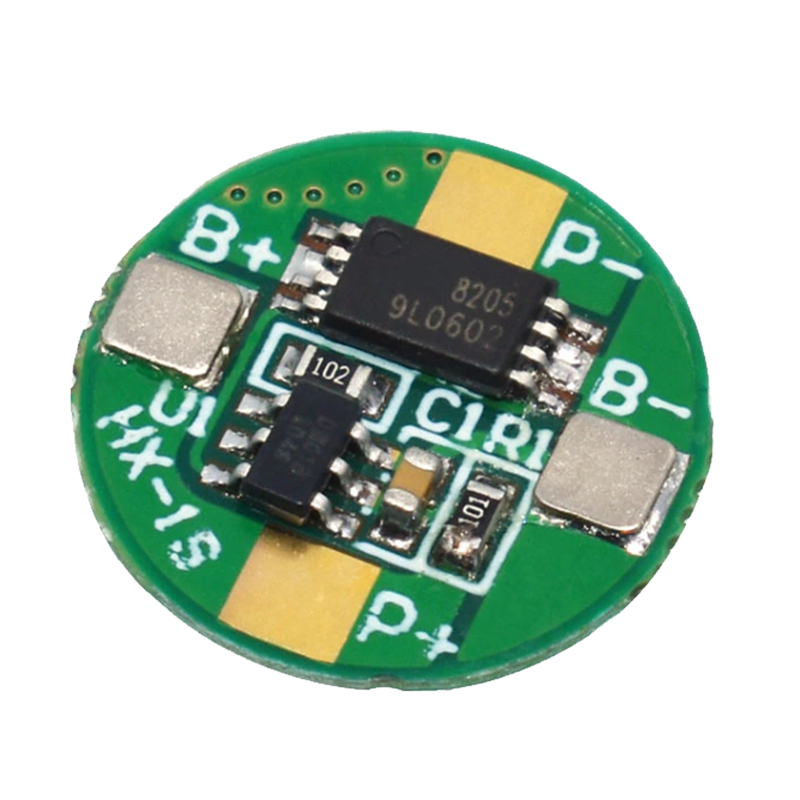

This PCB (Protection Circuit Board ) is designed for 3.6v / 3.7v Li-ion cells and will protect the cell from over charge or over discharge.


Over Charge Detection Voltage : 4.25v + /- 0.05v
Over Charge Release Voltage : 4.15 +/- 0.05v
Over Discharge Detection Voltage : 2.3 + /- 0.06v
Over Discharge Release Voltage : 3.0v +/- 0.075v
Rated Discharge Current : 2.5a
Over Current Detection Current : 5-7a
Short Protection : Implemented
Release Condition : Cut Load
P+, P- Conduction Resistance : <=60 milliohm
Current Consumed in normal Operation : <=10uA
Dimensions: 13.5mm x 13.5mm x 2.0mm


Barcode # 2000000002934
