Panel Mount Thermal Circuit Breaker 10a 32v / 250v

In Stock
Not available for pickup. Shipped within 24 hours.

Calculate Shipping

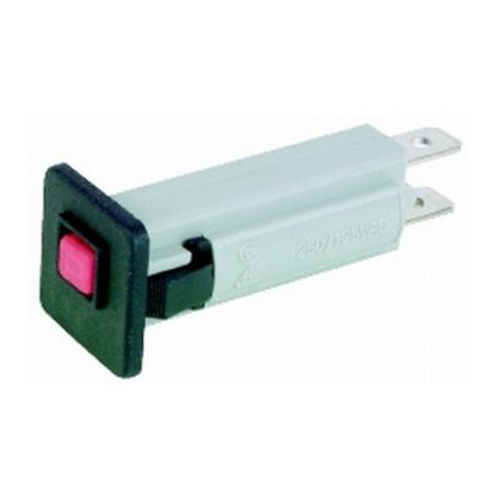

This panel mounted circuit breaker features a black 19mm square facade with a centrally mounted bright red trip button. When tripped, the red button extends. To reset simply push button back in (once fault has been cleared). Unit has slow response time ideal for inductive/reactive loads.


Hold Current: 100% load indefinitely
Within 1 Hour at 135% load
Within 1 Minute at 200% load
Input: 32v DC, 125/250v AC
Dielectric Strength: 1500v AC 1 Minute
Contact Endurance: >500 cycles at 150% of contact rating.
Contact Rating: 10a
Contact Resistance: 0.015ohms


Barcode # 9319236837320
