Panel Mount 12v-48v Battery State Indicator

Sold Out

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

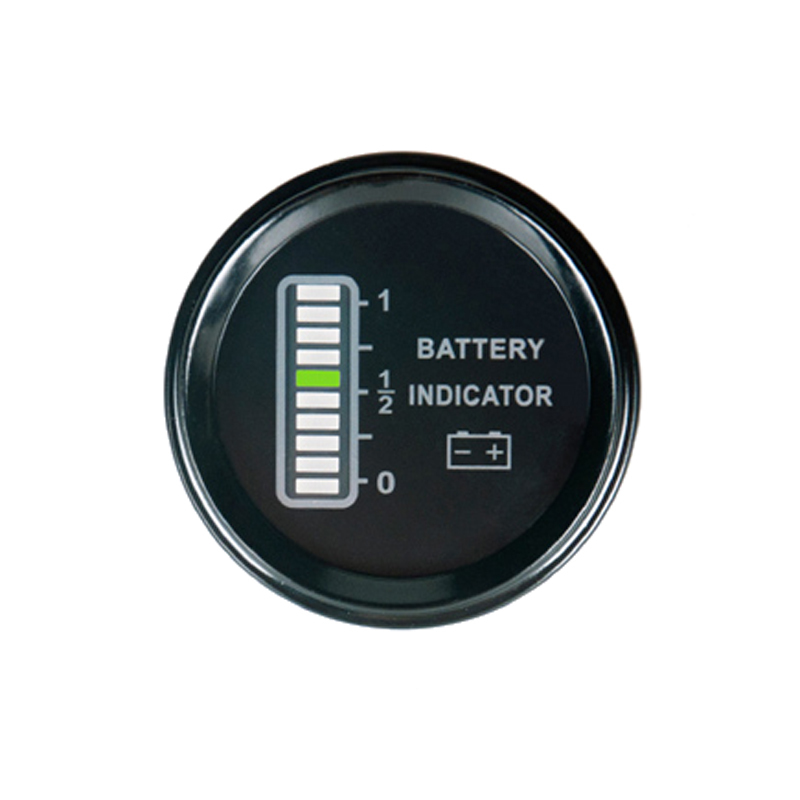

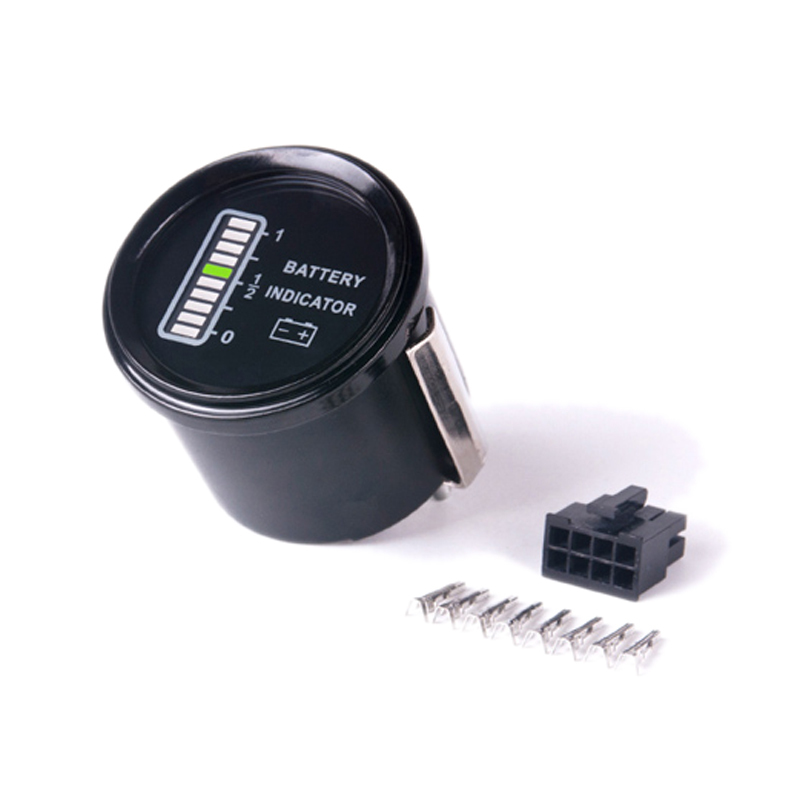

Panel mount battery state indicator with 10 segment LED bar style display. The 10 segments are colour coded to provide quick and easy battery state indication. Unit is suitable for 12v-48v systems and it will automatically detect correct voltage system when connected to its power source.

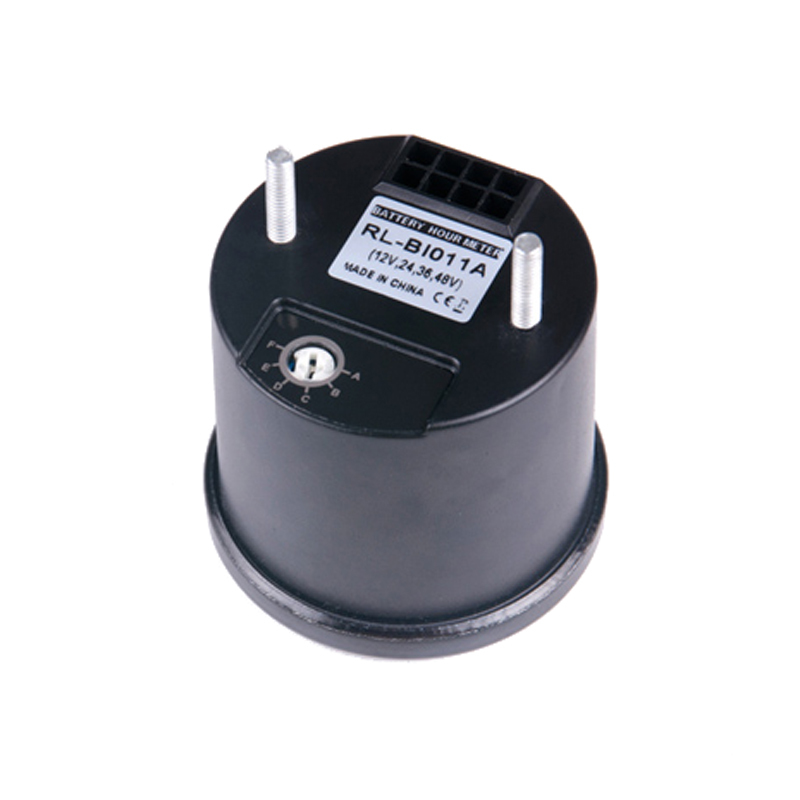

Fine adjustments are also available on the units rear potentiometer.

Unit can be installed into a standard 50mm whole.


Size: 56mm diameter by 65mm length
Operating Voltage: 12-48v DC
Voltage Accuracy: +/- 0.5v
Charging delay Time: 200s
Delay Time Of Every bar: 155s
Net Weight: 108g
Waterproof Rate: IP65
Housing material: ABS + Aluminium Alloy
Mounting Whole Diameter: 50mm


Barcode # 2000000005294
12 Month Manufacturer Warranty
