Panel Mount 12-48v Battery State Indiactor and LCD Hour Meter Combo

Sold Out

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

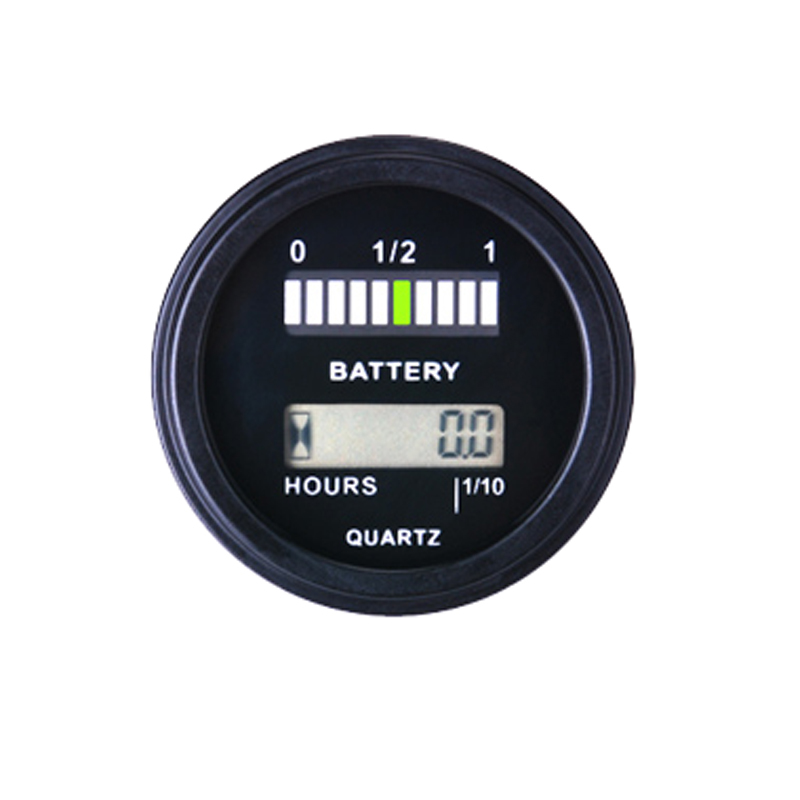

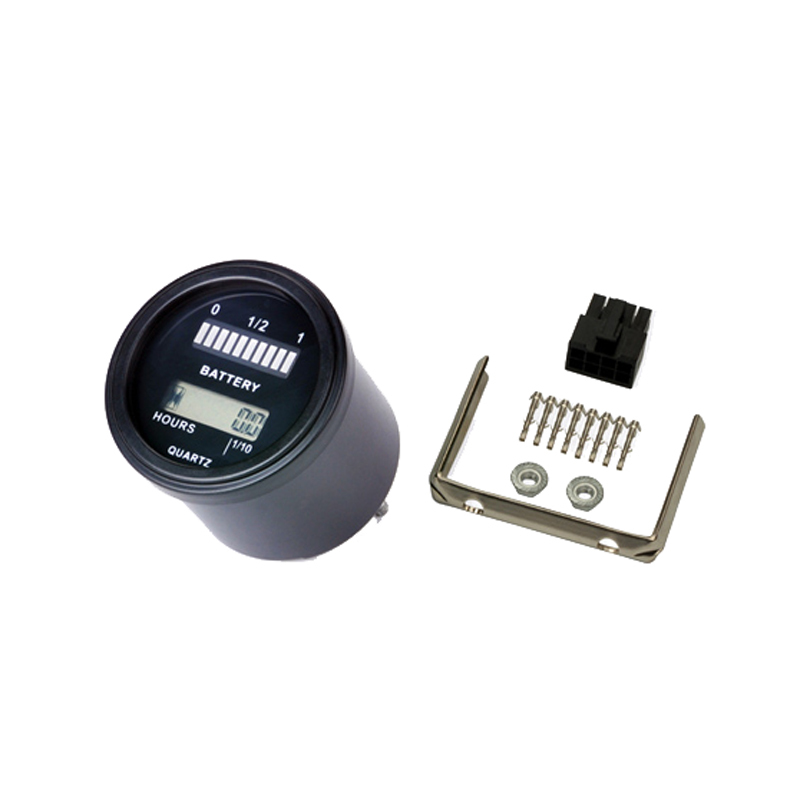

Combination battery state indicator as well as hour meter. Specifically designed for battery powered machinery and equipment such as forklifts, floor machines and golf carts.

Unit will display the battery state in segmented bar graph style display. Current voltage, under voltage and over voltage errors can also be programmed.

The hour meter will record hour of operation so that administrators can log running hours and plan adequate maintenance schedule for machinery.

Various user modes to suit many applications can be selected.


Dimensions: 56mm (Diameter) x 65mm (Length)
Display Screen: LED + LCD
Screen Size: 25.5mm x 7.4mm
Operating Voltage: 12-48v
Time Range: 999999H
Timing Accuracy: 0.1H
Voltage Accuracy: 0.5%
Internal Battery: Cr2450 270mah
Net Weight: 108g
Waterproof Rate: Ip65
Mounting Whole Size: 50mm Diameter


Barcode # 2000000005225
12 Month Manufacturer Warranty
