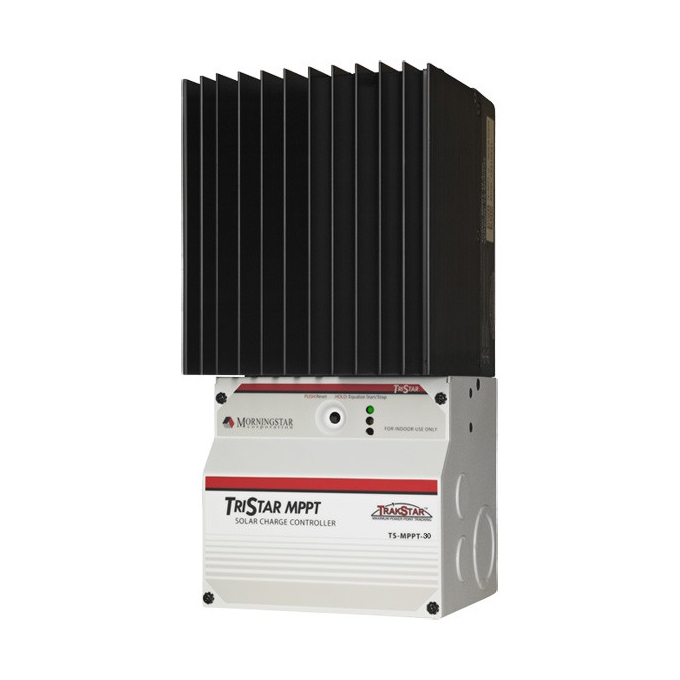

Morningstar TriStar MPPT 30a 12-48v Power Point Tracker Solar Controller

In Stock
Not available for pickup. Item shipped between 2-4 days.

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Morningstar's revolutionary TriStar MPPT series of solar controllers feature Morningstar's innovative TrakStar technology. Offering an advanced power point tracking (MPPT) battery charger for off grid solar panel (PV) systems up to 3KW.

TriStar MPPT provides the industry's highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers.


Better peak power point tracking than other MPPT controllers
Excellent performance at sunrise and low light conditions
No mechanical relays
Low self-consumption power
Extensive networking and communication capabilities (60a model Ethernet only)
Up to 200 days of data logging via meters or communications port


Maximum Battery Current:
Nominal Maximum Solar Input 12v: 400w
Nominal Maximum Solar Input 24v: 800w
Nominal Maximum Solar Input 48v: 1600w
Peak Efficiency: 99%
Nominal System Voltage: 12, 24, 36 or 48v DC
Max Solar Open Circuit: 150v DC
Maximum Self Consumption Power: 2.7w
Transient Surge Protection: 4500w / port
Charging Algorithm: 4 Stage
Charging Stages: Bulk, Absorption, Float, Equalize

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.


Product Videos

Model # TS-30MPPT


5 Year Manufacturer Warranty
