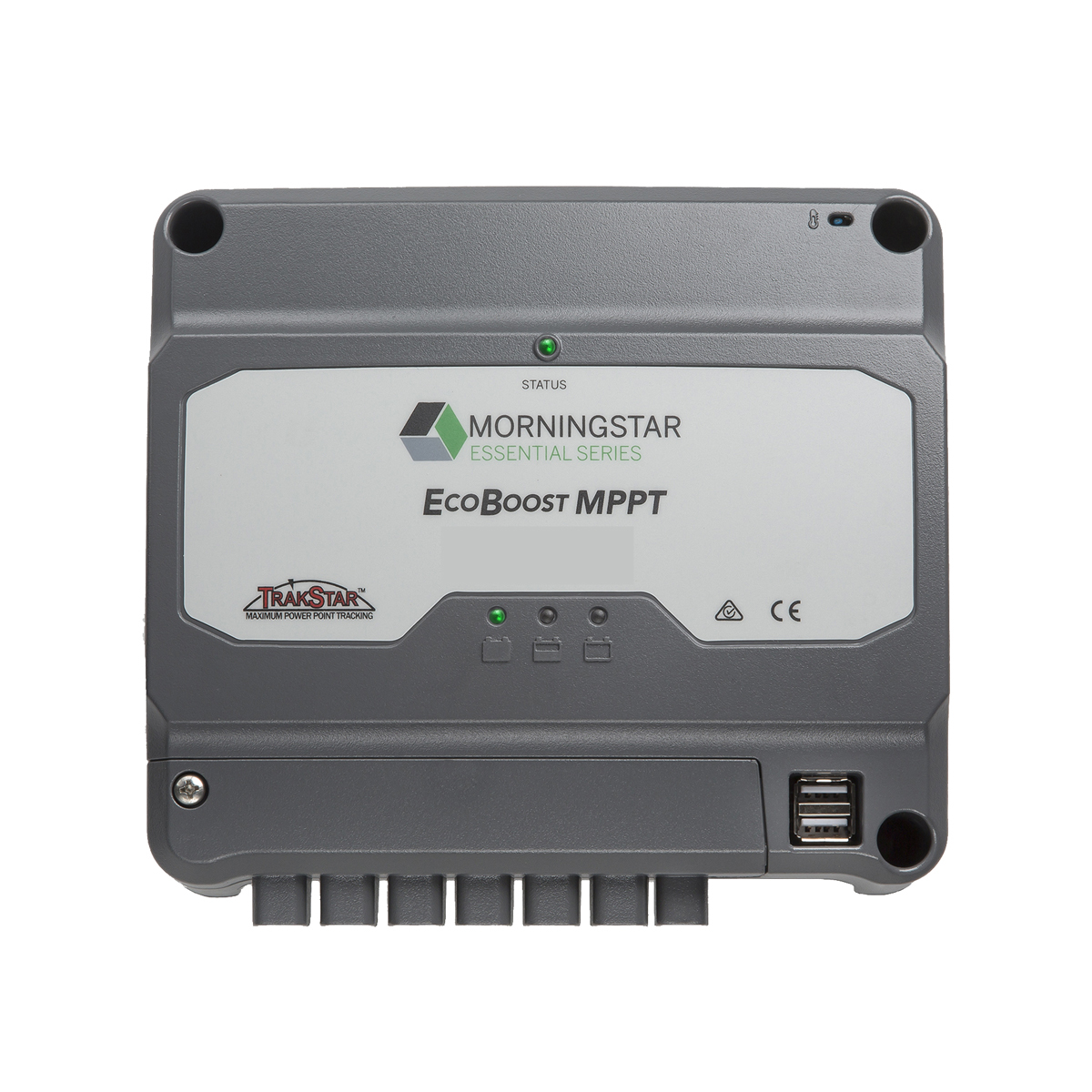

Morningstar EcoBoost 12/24v 20a MPPT Solar Charge Controller

In Stock
Not available for pickup. Item shipped between 2-4 days.

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Employing Morningstar's proprietary TrakStar technology, the new EcoBoost offer the highest efficiency, reliability and ensure batteries attain a complete state of charge.

Morningstar's EcoBoost feature integrated sophisticated load controller. Managing DC power sources and ensuring batteries do not enter too deep a state of discharge. This reduces wear and tear on the batteries, improves performance, longevity and provides an overall better return on your original battery investment.

Morningstar EcoBoost have been deisgned from the ground up to be the central brain of PV powered electrical systems up to 1120w. Morningstar's new range of EcoBoost solar charge controllers offers outstanding value as well as performance that you can rely on time and time again!


Two USB-A ports for charging multiple mobile phones/tablets
3 Amps of USB charging capacity
Four stage battery charging
Dusk 'til dawn lighting control
Load control
Electronic and environmental protections
Wide operating temperature range


Max battery Current: 20a
Load Current Rating: 20a
Max PV Open Circuit Voltage: 120v
Nominal Battery Voltage: 12 or 24v automatic sensing
Peak Efficiency: 98%
Battery Voltage Range: 10-35v
Self-Consumption: <1.2w
Max Combined USB Charging Output: 3a at 5v
Dimensions: 196mm x 173mm x 71mm
Weight: 1.4kg
Wire Size: 2.5-16mm2 14-2awg
Enclosure: IP20, Type 1

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.


Product Videos

SKU EcoBoost1
Model # EB-MPPT-20


24 Month Manufacturer Warranty
