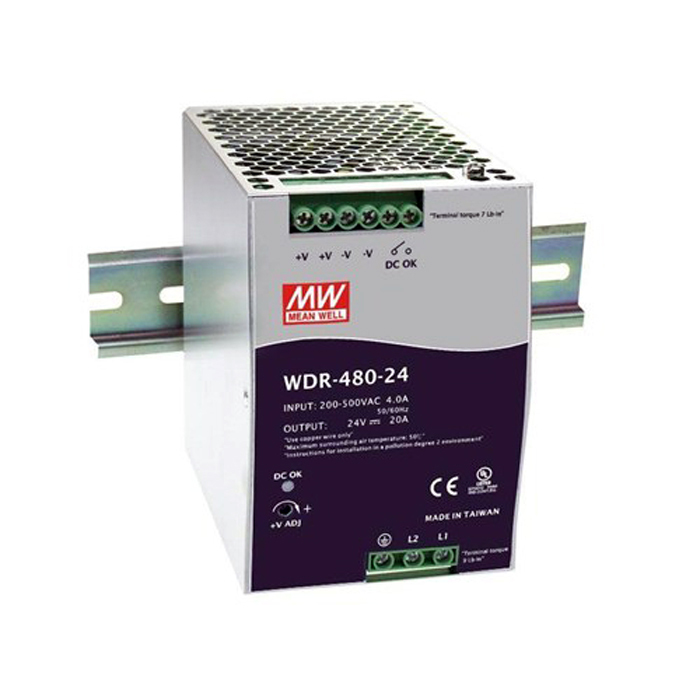

MeanWell WDR 24v 20a 480w DIN Power Supply Module

Sold Out

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

MeanWell SDR series of DIN rail power supplies are an ideal solution for industrial power solutions. They feature integrated short circuit, overload, over voltage and over temperature protection. Compatible with DIN rail TS-35/7.5 or 16 DIN rails (not included).


Single and two phase wide input range
Cooling by free air convention
Built in constant current limiting circuit
UL508 industrial control equipment approved
100% full load burn-in test
Built-in DC OK relay contact


Input Voltage: 180-550v AC
Outpout Voltage: 24v DC
Output Current: 20a
Rated Power: 480w
Dimensions: 86 x 125 x 129

Please Note: Product image is only reference. MeanWell battery chargers and power supplies are not shipped with power cable. Mr Positive carries a wide range of power cables that can be purchased separately.

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.


Model # WDR-480-24

Mean Well

12 Month Manufacturer Warranty
