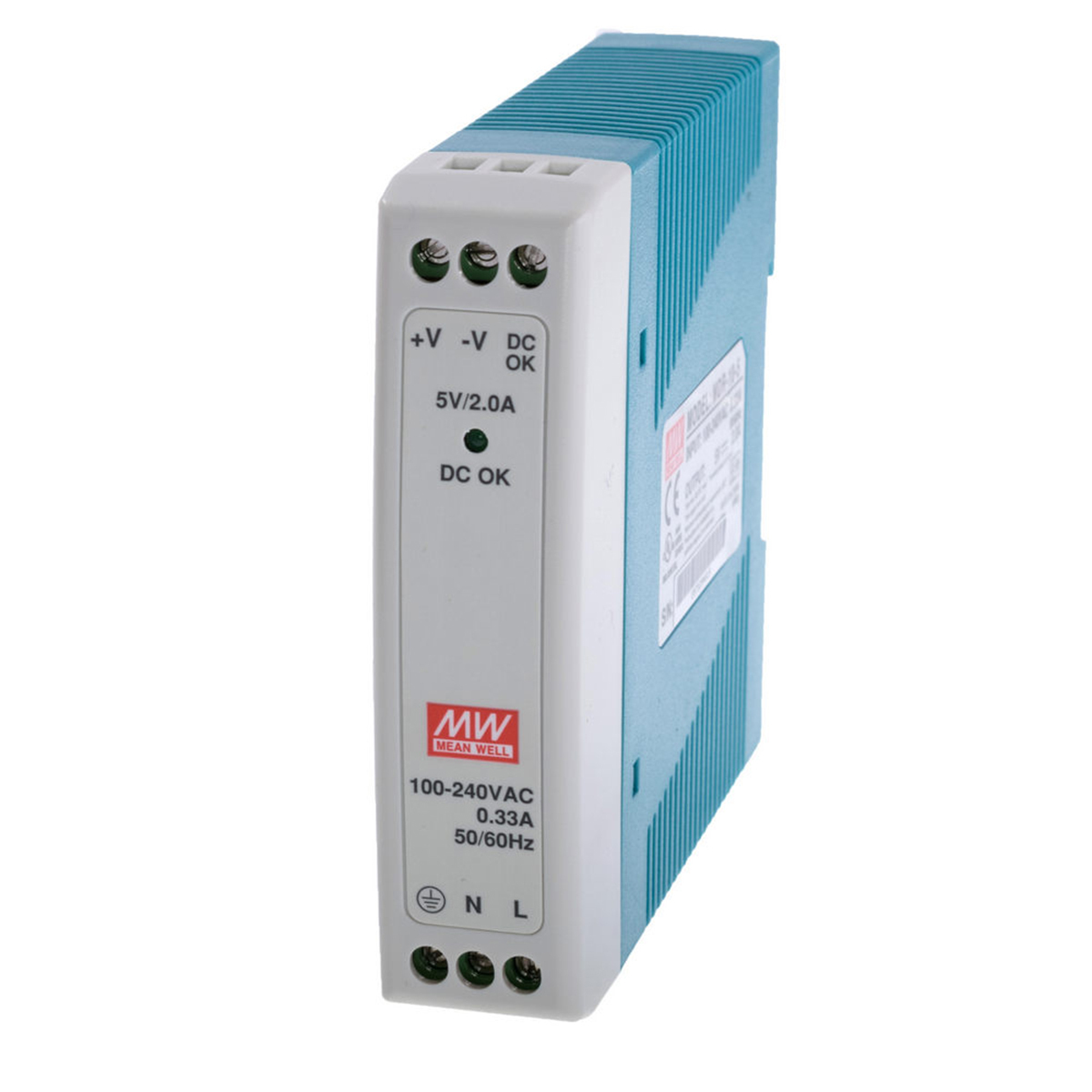

MeanWell MDR 10w 5v DIN Rail Power Supply

$59.00
In Stock
Not available for pickup. Item shipped between 2-4 days.


Calculate Shipping

The MeanWell MDR range of DIN style power supplies are available in a wide range of voltages and power ratings. MeanWell DIN power supplies are an ideal power solution in telecommunication, security and computing.

They are compatible with standard DIN rail TS-35 / 7.5 or 15 DIN rails (available separately).

MeanWell DIN power supplies have short circuit, overload and overvoltage and over temperature protection.

Features:

Universal AC input / Full range
Cooling by free air convection
Can be installed on DIN rail TS-35 / 7.5 or 15
UL508 (industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test

Specifications:

Output Voltage: 5v
Max Current: 2a
Power Rating: 10w
Series. NDR
Number of Outputs: 1
Input Voltage: 90-264v AC
Dimensions: 100mm (L) x 90mm (W) x 23mm (H)

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(MPWEL217)

SKU MPWEL217
Model # MDR-10-5
Brand

Mean Well
