MeanWell HDR 24v 1.5a DIN Rail Power Supply Module

$58.00
In Stock
Not available for pickup. Item shipped between 2-4 days.


Calculate Shipping



Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Mean Well HDR DIN Rail power supplies are available in 15W, 30W, or 60W and feature an ultra-slim, step shape plastic housing. The HDR family specially adopts the European Union standard DIN EN43880 and slim design with a height of 90mm and the width are only 1SU to 3SU (17.5mm/35mm/52.5mm). They also feature efficiencies up to 91%, adjustable (+/-10%) DC output voltage, and a working temperature range of -30 to +70 Degrees Calcic.

Typical applications include building automation, household control system, industrial control system, factory automation and electro-mechanical apparatus.

Features:

Short circuit / overload / over voltage protections
DIN rail TS-35/7.5 or 15 mountable
Pass LPS (limited power source)
Isolation class II
Cooling by free air convection
LED indicator for power on

Specifications:

DC Current: 1.5a
DC Voltage: 24v DC
Continuous Power rating: 36w
Length: 90mm
Width: 35mm
Depth: 54.5mm
AC Voltage: 120-370v AC
Efficiency: 89%
Mounting Method: Din Rail Mount (not included)

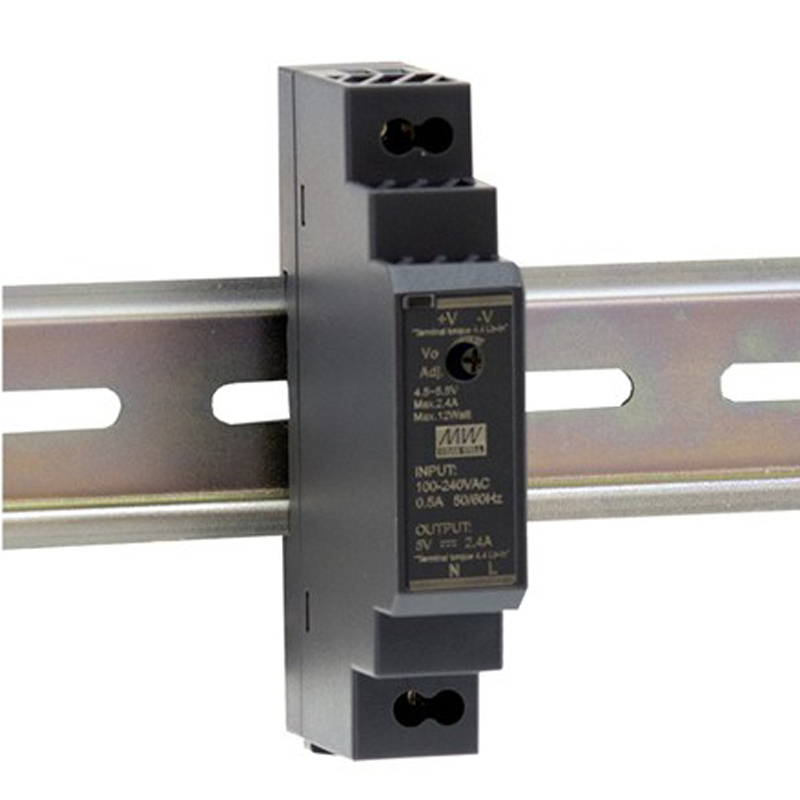

Please Note: Product image is only reference. MeanWell battery chargers and power supplies are not shipped with power cable. Mr Positive carries a wide range of power cables that can be purchased separately.

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(MWPSU08)

SKU MWPSU08
Model # HDR-30-24
Barcode # 9319236716113
Brand

Mean Well

12 Month Manufacturer Warranty
