MeanWell HDR 12v 4.5a DIN Rail Power Supply Module

In Stock
Not available for pickup. Item shipped between 2-4 days.

Calculate Shipping

Mean Well HDR DIN Rail power supplies are available in 15W, 30W, or 60W and feature an ultra-slim, step shape plastic housing. The HDR family specially adopts the European Union standard DIN EN43880 and slim design with a height of 90mm and the width are only 1SU to 3SU (17.5mm/35mm/52.5mm). They also feature efficiencies up to 91%, adjustable (+/-10%) DC output voltage, and a working temperature range of -30 to +70 Degrees Calcic.

Typical applications include building automation, household control system, industrial control system, factory automation and electro-mechanical apparatus.


Short circuit / overload / over voltage protections
DIN rail TS-35/7.5 or 15 mountable
Pass LPS (limited power source)
Isolation class II
Cooling by free air convection
LED indicator for power on


DC Current: 4.5a
DC Voltage: 12v DC
Continuous Power rating: 54w
Length: 90mm
Width: 52.5mm
Depth: 54.5mm
AC Voltage: 85-264v AC
Efficiency: 89%
Mounting Method: Din Rail Mount (not included)

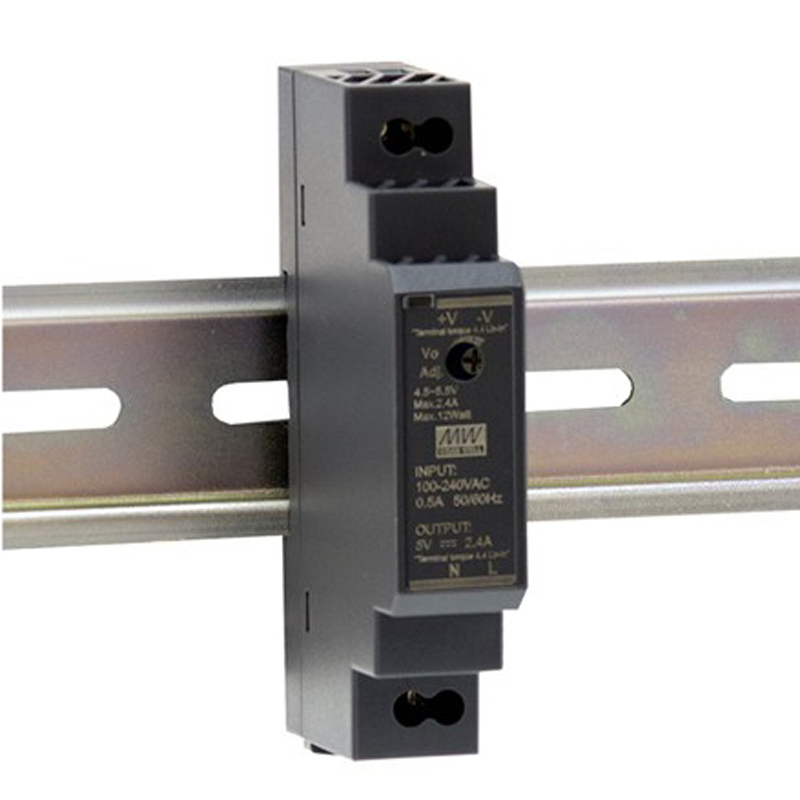

Please Note: Product image is only reference. MeanWell battery chargers and power supplies are not shipped with power cable. Mr Positive carries a wide range of power cables that can be purchased separately.

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.


Model # HDR-60-12
Barcode # 9319236716120

Mean Well

12 Month Manufacturer Warranty
