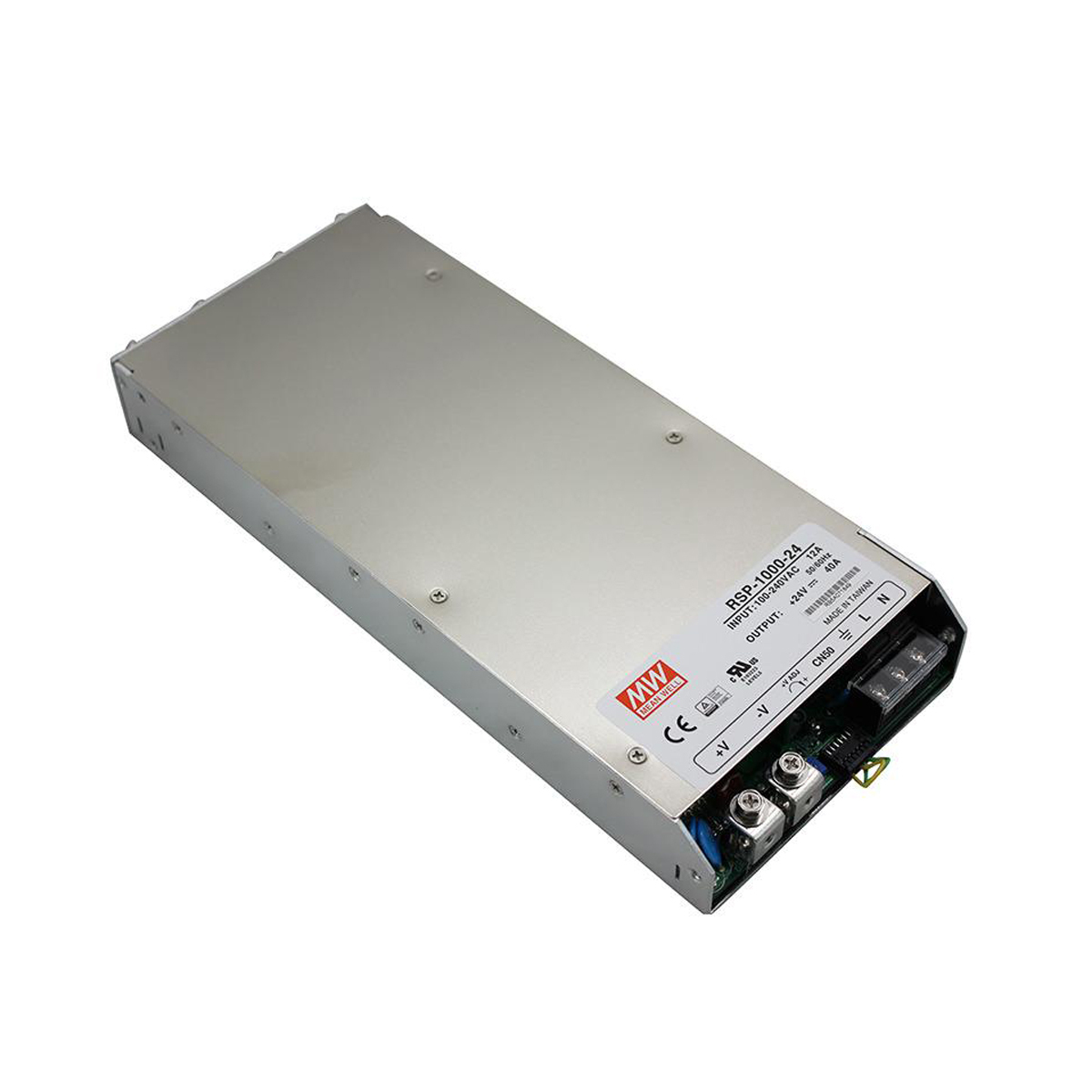

MeanWell 24v 40a 960w PFC Industrial Power Supply Module

In Stock
Not available for pickup. Item shipped between 2-4 days.

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Mean Well industrial power supplies are available in a variety of voltages and ratings and ideally suited for industrial machinery and auto0mation equipment. Featuring built in active PFC function for maximum efficacy.


Universal AC input / Full range
Built-in active PFC function
High efficiency up to 90%
Forced air cooling by built-in DC fan
Output voltage programmable
Active current sharing up to 4000W (3+1)
Built-in remote ON-OFF control / remote sense / auxiliary power / DC OK signal
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating


Output Voltage: 24v DC
Output Current: 40a
Rated Power: 960w
Input Voltage: 900-264v AC
Dimensions: 295mm x 127mm x 41mm

Please Note: Product image is only reference. MeanWell battery chargers and power supplies are not shipped with power cable. Mr Positive carries a wide range of power cables that can be purchased separately.

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.


SKU 24V960
Model # RSP-1000-24

Mean Well

24 Month Manufacturer Warranty
