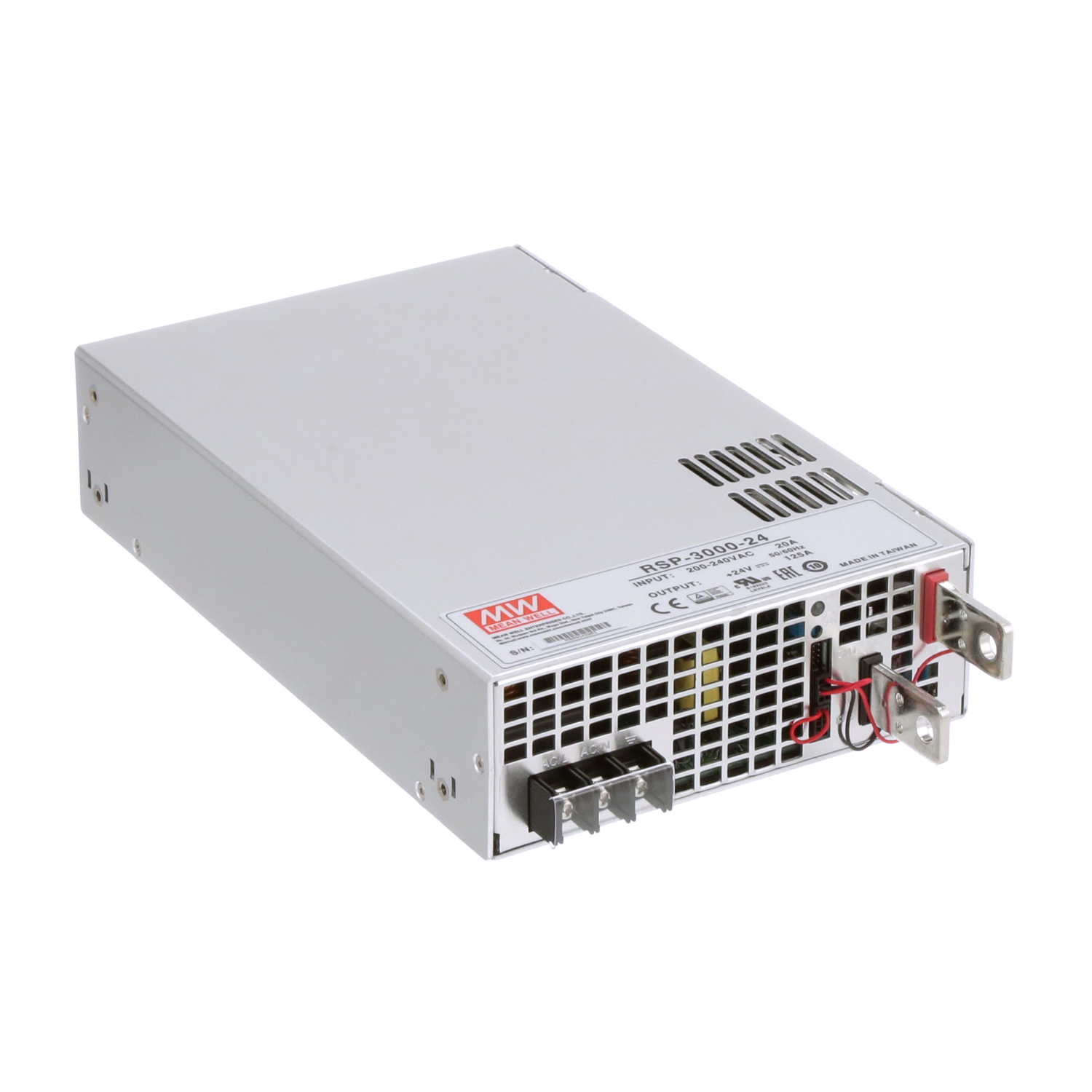

MeanWell 24v 125a 3000w Industrial Enclosed PFC Power Supply

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Industrial 3KW single output enclosed AC/DC power supply. Operating on 180-264v AC with built in fan speed control. Mean Well RSP series are the ultimate power supplies for industrial and machinery.

Features:

AC input 180-264VAC
Built-in active PFC function
High efficiency up to 91.5%
Forced air cooling by built-in DC fan
Output voltage programmable
Active current sharing up to 9000W (2+1)
Built-in remote ON-OFF control / remote sense / auxiliary power / power OK signal • Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
3 years warranty

Specifications:

Output Voltage: 24v DC
Rated Output Current: 125a
Power Rating: 3000w
Standards Met: BSMI, CB, CE, EAC, TUV, UL
Dimensions: 278mm (L) x 178mm (W) x 64mm (H)
Weight: 4kg

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(RSP-3000-24)
