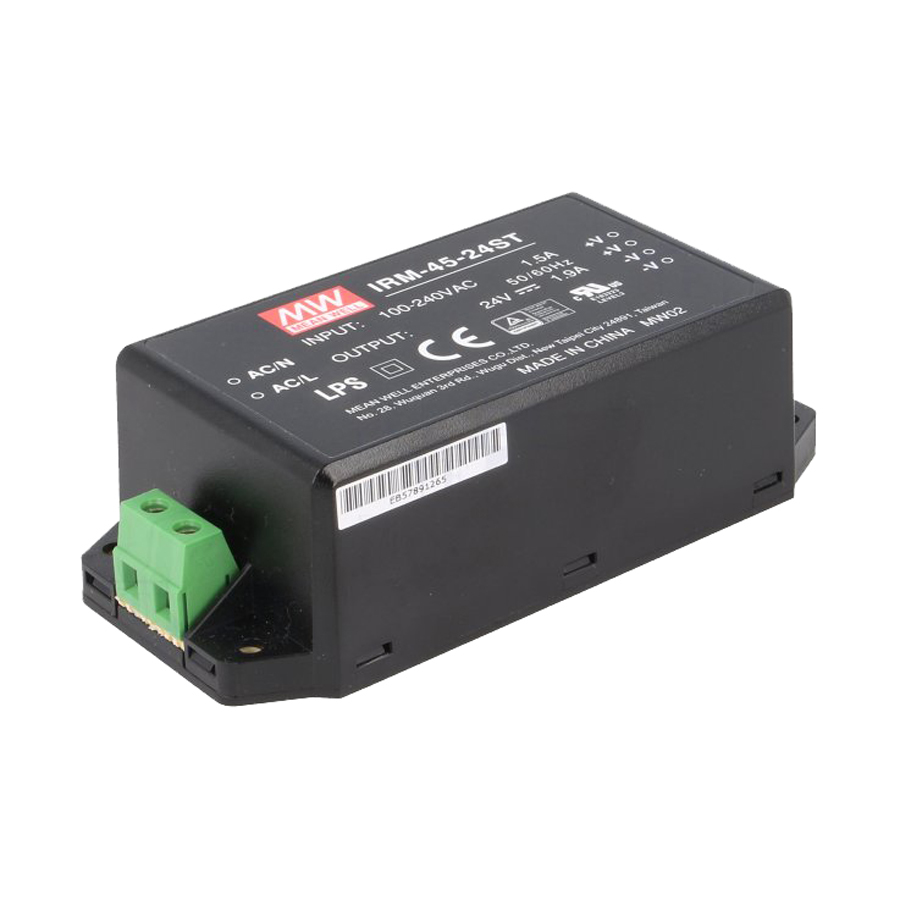

Meanwell 24v 1.9a 45w Power Supply Module

WAS $64.00
RRP $64.00
NOW $57.60
SAVE 10%!
In Stock
Not available for pickup. Shipped within 24 hours.

Calculate Shipping

The Meanwell IMR range of power supply modules are ideal power solution for custom projects and prototypes. They are available in a wide range of output voltages and power ratings to suit almost any application. Specifically designed from the ground up for electronic instruments and automation equipment.

They feature flame retardant plastic case and fully plotted silicon. Tis enhances heat dissipation, resistance to dust and meets antivibration demands up to 5G.

Offering up to 90% efficiency and extremely low now load power consumption. Meeting worldwide regulations for the low power consumption requirements of electronics.


AC Input Voltage Range: 85-264v AC
AC inrush current (max.): Cold start, 30A at 115VAC, 60A at 230VAC
Setup, rise, hold up time: 1000ms, 30ms, 50ms
Overload protection: 115%-160% rated output voltage, hiccup mode, auto-recovery
Over voltage protection 115%-135% rated output voltage
Leakage current: Less than 0.25mA at 240VAC
Safety standards: UL60950-1, TUV EN60950-1 approved
EMC standards: EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN55024
Dimension (LxWxH): 109x 52x 33.5mm

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.


Model # IRM-45-24ST
Barcode # 2000000008288

Mean Well

12 Month Manufacturer Warranty
