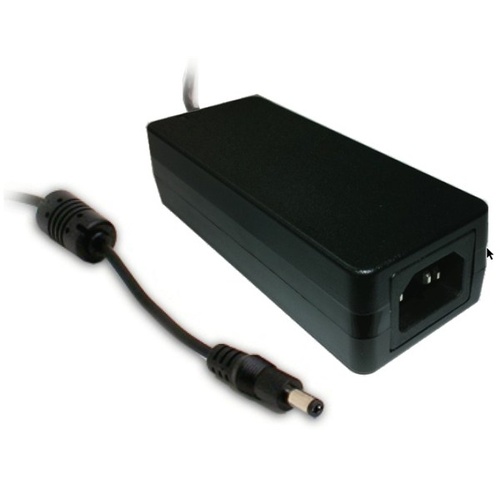

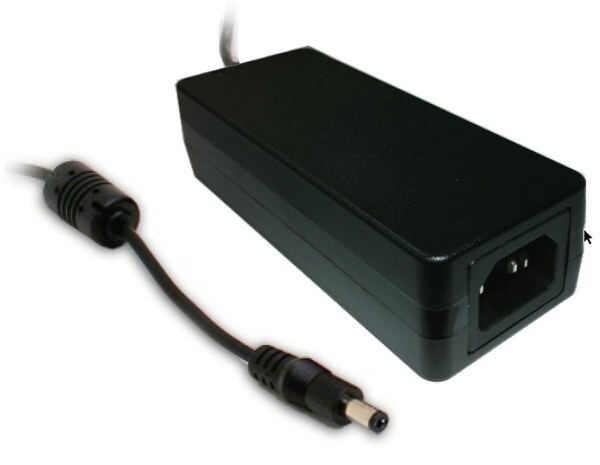

MeanWell 15v 4a 60w Power Supply with 2.1mm Plug

In Stock
Not available for pickup. Item shipped between 1-3 days.

Calculate Shipping

MeanWell Notebook style power supply with standard DC plug.  Unit provides 15v with a maximum current rating of 4a. Suitable for general  portable electronics including laptops, notebooks and general computing equipment.


AC input voltage range: 90-264VAC 135-370VDC
AC inrush current (max.): Cold start, 65A at 230VAC
Overload protection: 105%-150% rated output voltage, hiccup mode, auto-recovery
Withstand voltage: I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Safety standards: UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, AS/NZS 60950.1approved
EMC standards: EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1
Dimension (LxWxH): 125x 50x 31.5mm
Standard DC plug: 2.1x5.5x11mm (Centre Positive)

Please Note: Product image is only reference. MeanWell battery chargers and power supplies are not shipped with power cable. Mr Positive carries a wide range of power cables that can be purchased separately.

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.


Model # GST60A15-P1J

Mean Well

12 Month Manufacturer Warranty
