Marine 6 Way Switch Panel and Circuit Breaker

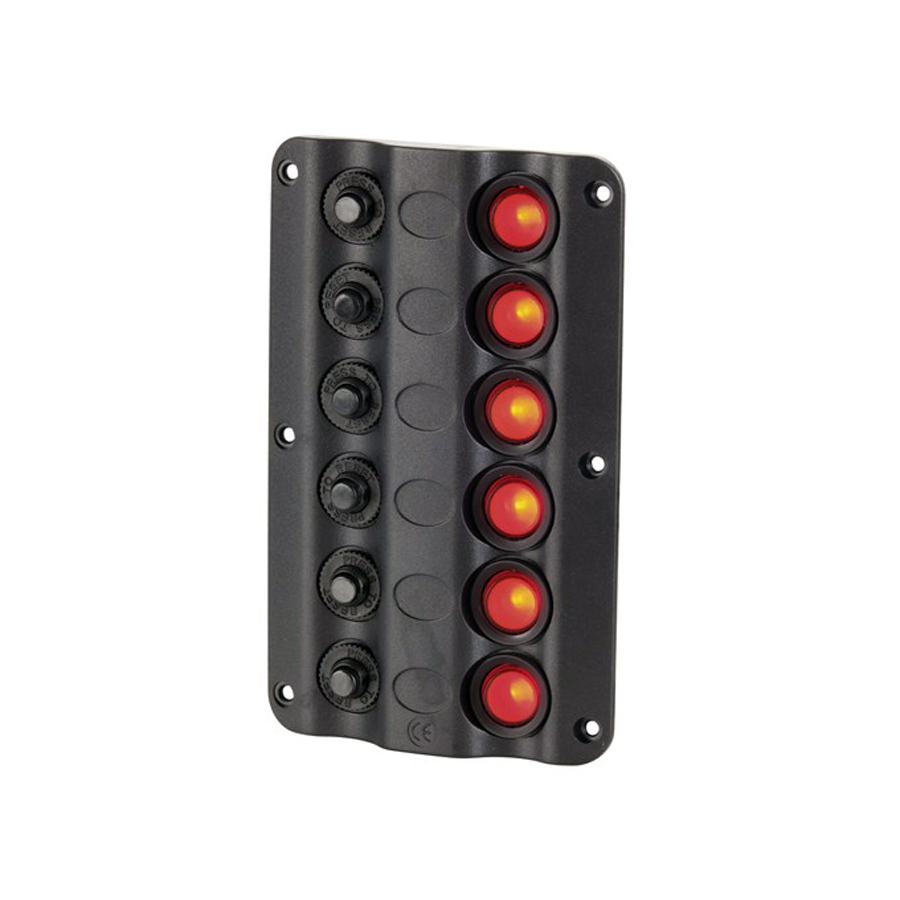

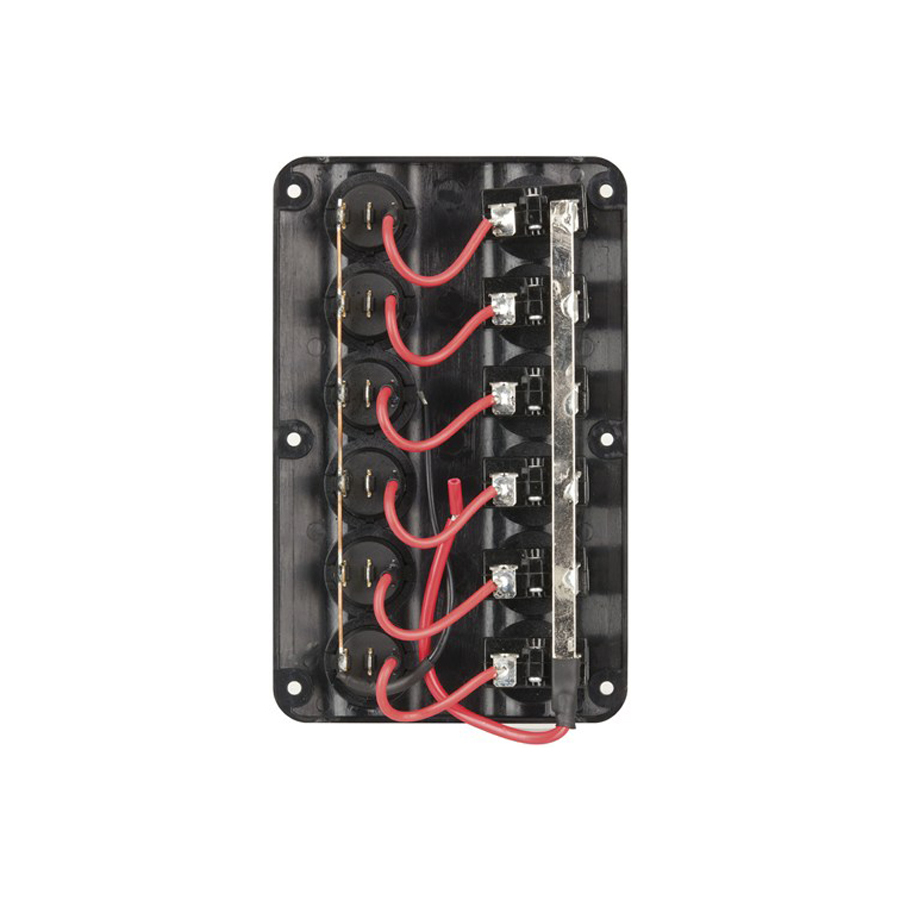

This panel measures 100 x 160 overall and can be mounted either vertically or horizontally. The circuit breakers are connected in common + by a soldered strip which accepts a 1/4 QC connector. They are then soldered to a 10A rated illuminated rocker switch. The rocker switches have 4.8 QC tabs and are single pole type. The circuit breakers are rated; 10A, 8A, 6A and 4A.

There is a negative common bus to the switches which when connected, enables the actuator to glow red when on.

We also carry a 4 way version of this switch panel.

Specifications:

DC Voltage: 12.0V
Type: Incandescent
Illumination Colour: Red
Width: 100.0mm
Height: 160.0mm
Depth: 45.0mm
Switch Type: Rocker
Pole Throw Type: SPST
Poles / Contacts: 1.0 pole
Throws / Positions: 1.0pos
Switch Connection: Spade Terminals
Mechanism Material: ABS Plastic (Acrylonitrile Butadiene Styrene)
Number of Switches: 6.0pc
Individual Circuit Breakers: 10.0A

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
