PCM (Protection Circuit Module) are designed to protect sensitive Lithium based batteries from over charge and over discharge. Mr Positive currently has a wide range of PCM designed for different cell configuration as well as different types of Lithium rechargeable batteries. Including Lithium Ion and Lithium Polymer batteries.

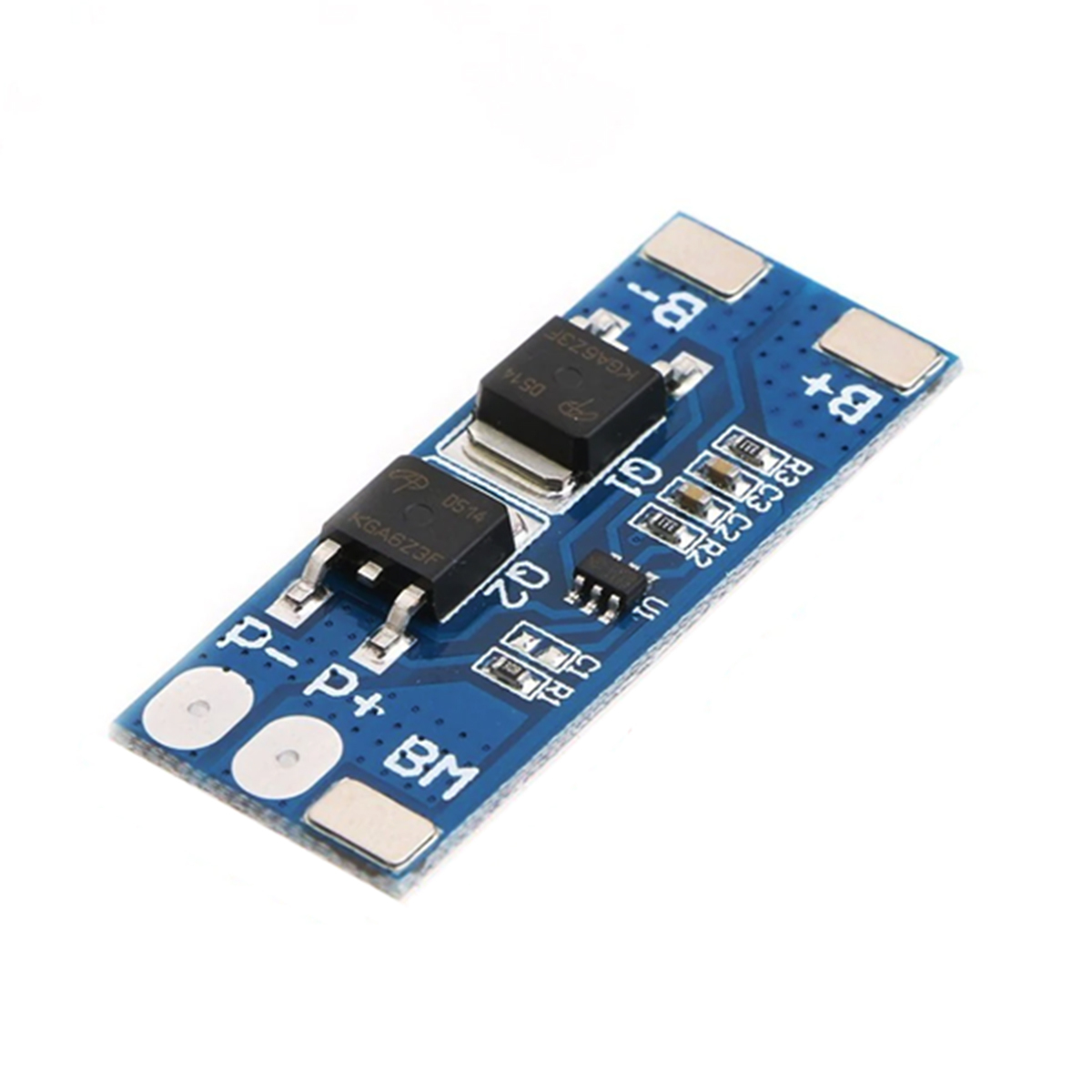

This model is suitable for 2 cell Li-Ion (Lithium Ion) battery configurations.
Full PDF data sheet for this product can be downloaded below the specifications.
Max Discharge Current: 8a
Own Current Consumption: 14uA
Over Charge Detection Voltage: 4.35v +/- 0.025v
Over Discharge Detection Voltage:: 2.50v +/- 0.058v
Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
