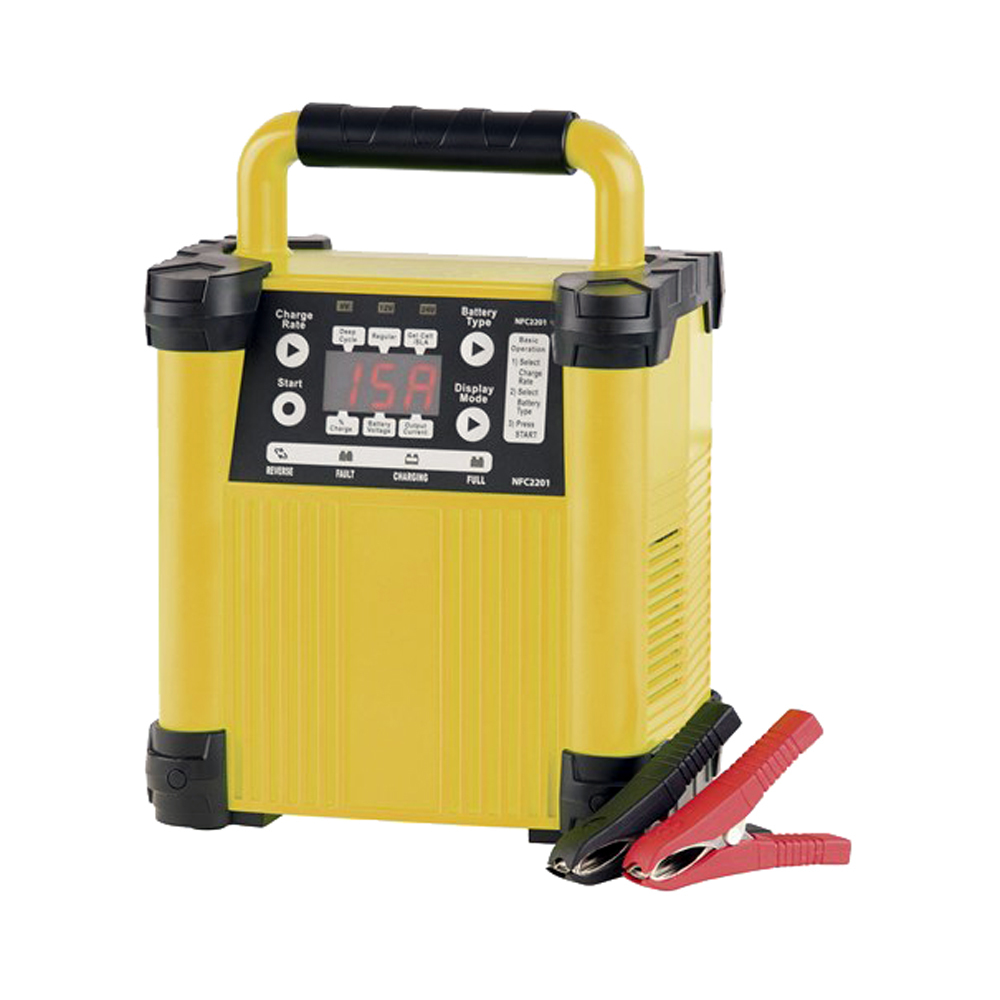

Intelligent 6-24v Lead Acid Battery Charger

In Stock
Not available for pickup. Item shipped between 2-4 days.

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Multi stage charger suitable for 6v, 12v or 24v batteries. Ideal battery charging solution for caravans that usually have multiple 6v batteries in a bank. This unit allows for charging of individual batteries or the whole 12v / 24v bank.

This unit has a maximum power rating of 50a and is suitable for deep cycle (and starting) batteries between 40-200ahr.

The microprocessor controlled unit provides 4 stages of charging, Soft Start, Bulk Charge, Absorption and Float which assists in the batteries life expectancy and performance. An auto detection feature provides a user friendly experience, which can be pre-programmed or manually set for greater control. Should a blackout occur or AC input power be lost during a charging operation the memory function will resume charging once power is re-established. Other features include temperature/voltage compensation, reverse polarity/short circuit protection and a battery status indicator. Ideal for cars, motorcycles, caravans and boats with battery capacities between 20-200Ah. It's also ultra-portable with a handy storage pocket in the back for the leads.


Memory function
Temperature controlled fan
LED battery status display
Temperature and voltage compensation
Reverse Polarity Protection


Width: 170.0mm
Height: 230.0mm
Depth: 140.0mm
Rated for AU Main : true
AC Voltage: 240.0
Input: 220 - 240VAC, 300W
Charger Output Voltage: 6.0V, 12.0V, 24.0V
Current Output 12v: 15a
Current Output 6v/12v/24: 2a
Current Output 12v/24v: 7a
Connection Type: Alligator Clips


SKU CH14442
Barcode # 9319236975275


12 Month Manufacturer Warranty
