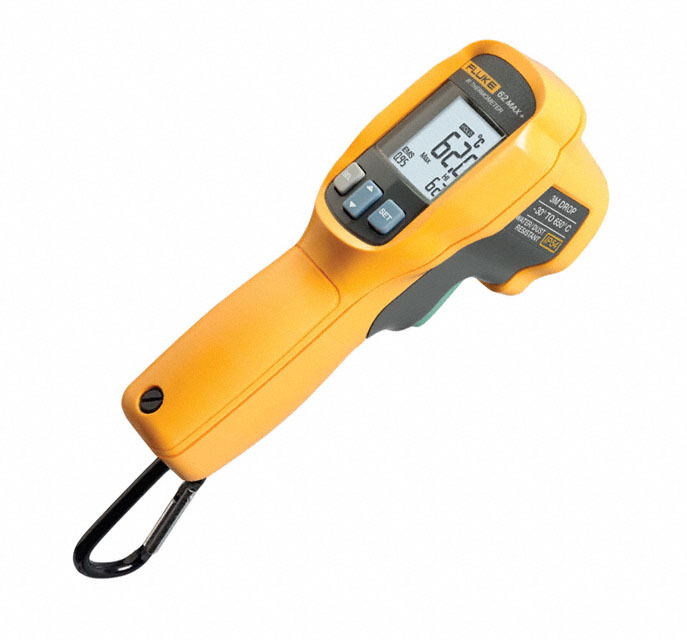

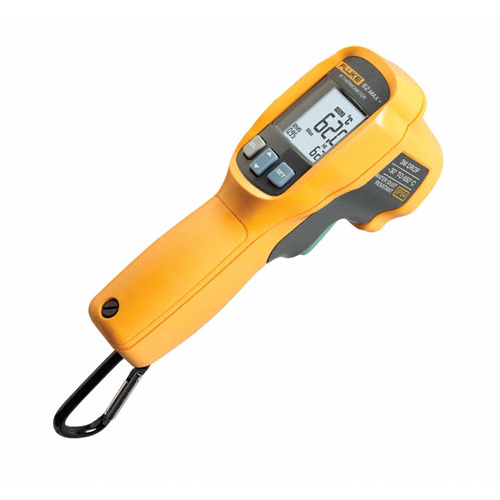

Fluke 62 MAX+ Infrared Thermometer

In Stock
Available for pickup or shipped within 24 hours.

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

The Fluke 62 MAX and 62 MAX+ infrared thermometers are everything you'd expect from the experts in measuring temperature in transformers, motors, pumps, panels, breakers, compressors, duct, steam lines, valves, and vents in hard to reach areas for repair and maintenance. Small in size, extremely accurate and yet easy to use. IP54 rated for dust and water resistance. Precise yet rugged enough to take a 3-meter drop.


Measure Range:-30 to 650 Degrees Celsius
Extremely Accurate: up to +1.0 Degrees Celsius or +1.0% of reaching
IP54 rating for water resistance and dust proof allow you to work rain or shine and even in the most dirty or dusty industrial sites.
Strong enough to withstand a 3 m drop. No worry even if you work from a ladder.
Small and lightweight; clips to your tool belt or belt loop or easily fits into your tool box.
Precise laser technology makes for more accurate and repeatable measurements.
Dual lasers to help you identify area to be measured.
Large, backlit display: Large screen makes data easier to read, even in dark areas.
Min/Max/Avg/Dif: Displays the minimum, maximum or average temperature, or the difference between two measurements.
Alarm: Hi and Lo alarms for rapid display of measurements outside the limits.
Powered by a single standard AA battery.


Temperature Range: -30 to 650 Degrees Celsius
Accuracy: +/- 1.0 Degrees Celsius or +/- 1.0% of reading, whichever is greater
Response Time: (95%) < 500 ms (95% of reading)
Spectral Response: 8 to 14 microns
Emissivity: 0.10 to 1.00
Optical Resolution: 12:1 (calculated at 90% energy)
Display Resolution: 0.1 Degrees Celsius
Repeatability of Readings: +/- 0.5% of reading or < +/- 0.5 Degrees Celsius, whichever is greater
Power By: 1 x AA battery
Battery Life: 8 hours with laser and backlight on
Weight: 255g
Dimensions: 175mm x 85mm x 75 mm
Operating Temperature: 0 to 50 Degrees Celsius
Storage Temperature: -20 to 60 Degrees Celsius, (without battery)
Operating Humidity: 10% to 90% RH non-condensing at 30°C
Operating Altitude: 2000 meters above mean sea level
Storage Altitude: 12,000 meters above mean sea level
IP Rating: IP 54 per IEC 60529
Drop Test: 3 meters
Vibration and Shock: IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
EMC: EN 61326-1:2006 EN 61326-2:2006
Standards and Agency Approval Compliance: EN/IEC 61010-1: 2001
Laser Safety: FDA and EN 60825-1 Class II

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.


Product Videos

Model # 62 MAX+
Barcode # 095969644389


12 Month Manufacturer Warranty
