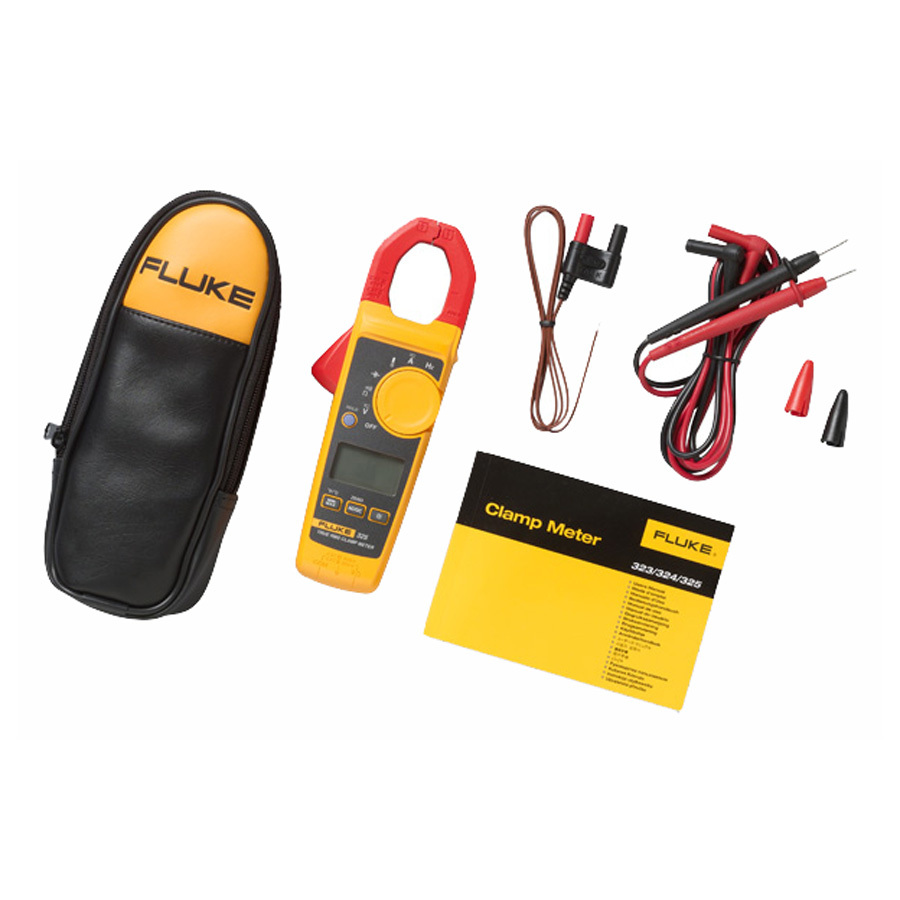

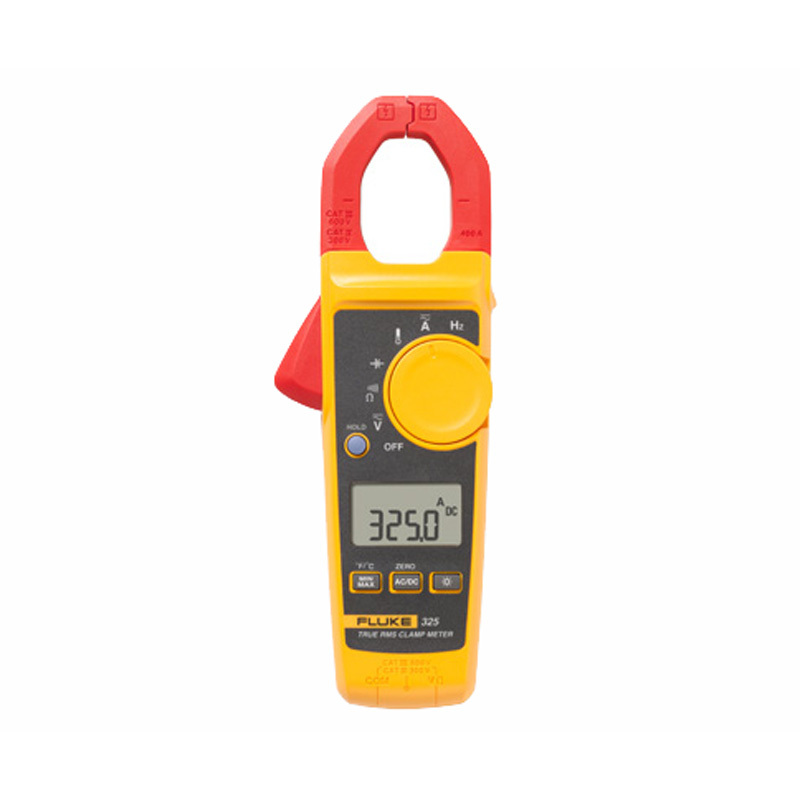

Fluke 325 True RMS AC/DC Clamp Meter

$520.00
In Stock
Not available for pickup. Item shipped between 2-4 days.


Calculate Shipping



Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

True RMS measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians. The 323, 324 and 325 are designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. These small and rugged clamp meters are ideally suited for current measurements up to 400 A in tight cable compartments. The Fluke 325 also offers DC current and frequency measurements.

Features:

400 A AC and DC current measurement
600 V AC and DC voltage measurement
True RMS AC voltage and current for accurate measurements on non-linear signals
Resistance measurement up to 40 Kiloohm with continuity detection
Temperature and capacitance measurement
Frequency measurement
Slim, ergonomic design
Large, easy to read backlight display
CAT IV 300V/CAT III 600 V safety rating
Hold button
Soft carrying case

Specifications:

AC Current Range: 40.00a / 400.0a
AC Current Accuracy: 2% +/- 5 Digits
DC Current Range: 40.00a / 400.0a
DC Current Accuracy: 2% +/- 5 Digits
AC Voltage Range: 600.0v
Ac Voltage Accuracy: 1.5% +/- 5 Digits
DC Voltage Range: 600.0v
DC Voltage Accuracy: 1.5% +/- 5 Digits
Resistance Range: 400.0 Ohms / 4000 Ohms / 40 kiloohm
Resistance Accuracy: 1% +/- 5 Digits
Continuity: <= 30 Ohms
Capacitance Range: 0-100uF / 100uF to 1000uF
Frequency: 5.0 Hz to 500.0 Hz
AC Response: True RMS
Backlight: Yes
Data Hold: Yes
Contact Temperature: 10-400 Degrees Celsius
Dimensions: 207mm x 75mm x 34mm
Weight: 283g
Category rating: CAT III 600v / Cat IV 300v

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(FLUKE5)

Product Videos

SKU FLUKE5
Model # 325
Brand

Fluke

12 Month Manufacturer Warranty
