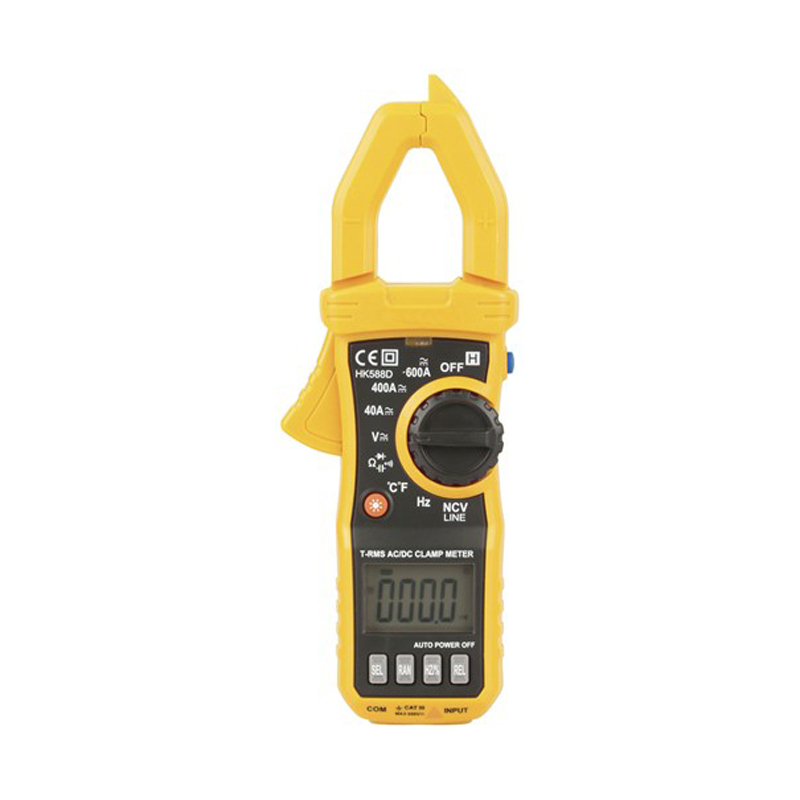

Digital Autoranging Clampmeter 600a AC/DC

$119.00
In Stock
Not available for pickup. Item shipped between 1-3 days.


Calculate Shipping



Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Operated easily using one hand this mid range auto ranging clamp meter has plenty of features for the trade and professional or the serious DIY electronics enthusiast.

Features:

True RMS
Non contact voltage testing
Relative measurement
Frequency measurement
Capacitance
Data hold
Temperature
Resistance
Display: 4000 count
Measurement Category: 600V Cat III
Basic VDC Accuracy: 0.5%
AC Rectification: True RMS
Special Features: Non contact voltage, LINE test, data hold, backlight, relative measurement.

Specifications

Capacitance Ranges : 10.0nF, 100.0nF, 1.0µF, 10.0µF, 100.0µF, 1.0mF, 10.0µF, 100.0mF
AC Current Ranges : 40.0A, 400.0A, 600.0A
DC Current Ranges : 40.0A, 400.0A, 600.0A
Frequency Ranges : 10.0Hz, 100.0Hz, 1.0kHz, 10.0kHz, 100.0kHz, 1.0MHz, 10.0Hz
Resistance Ranges : 400.0?, 4.0k?, 40.0k?, 400.0k?, 4.0M?, 40.0?
Outdoor / Exterior Scale : -20.000000°C, 1000.0°C
Outdoor / Exterior Scale : 0.0°F, 1800.0°F
AC Voltage Ranges : 400.0mV, 4.0V, 40.0V, 400.0V, 600.0V
DC Voltage Ranges : 400.0mV, 4.0V, 40.0V, 400.0V, 600.0V
Records Minimum : true
Records Maximum : true
Data Hold : true
Display Type : LCD
Display Backlight : White LED Backlit
Safety Rating Cat : Cat III
Safety Rating Max Volt : 600.0V
Count / Maximum Reading : 4000.0 count
True RMS : true
Autorange : true
Measures duty cycle : true
Width : 72.0mm
Height : 194.0mm
Depth : 35.0mm
Size / Shape : AAA
Battery quantity : 3.0pc
Batteries included : true
Compartment location : Back
How is battery compartment kept closed : Screw
Measurement Range Count : 4000.0 count
Meter Input Impedence : 10.0M?
Non-contact Voltage Indicator : true
Measures diode : true

(600DMC)

SKU 600DMC
Barcode # 9319236739228
12 Month Manufacturer Warranty
