DC-DC 2amp Variable Step Down Voltage Regulator Module

$11.00
In Stock
Available for pickup or shipped within 24 hours.


Calculate Shipping

This regulator features a variable input of 4.5v-40v and provides an adjustable output voltage of 1.5-35v. Operating on maximum of 2amps. All our voltage regulator circuits are designed to provide ease and flexibility for your next DIY electronic project. Please take note of the maximum current rating, as exceeding this current will result in damage to the module.

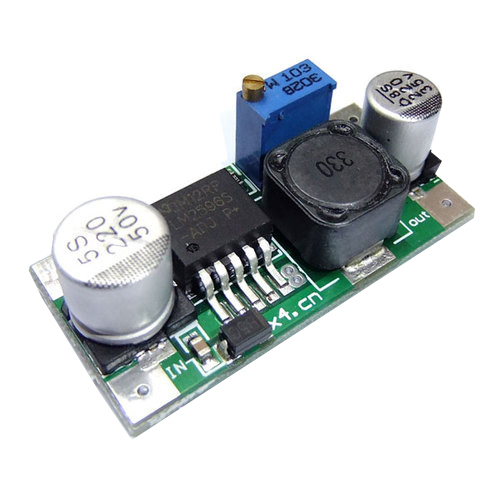

Package includes 1 x LM2596 DC-DC step-down voltage regulator module.

Features:

Conversion efficiency of up  92% (higher output voltage, the higher the efficiency)
Non-Synchronous Rectification
Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery

Specifications:

Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: +/- 0.5%
Voltage regulation: +/- 2.5%
Dynamic response speed: 5% 200uS
Input voltage: 4.5-40V
Output voltage: 1.5-35V(Adjustable)
Output Current: 2A,maximum
Dimension: 43x20x14mm (L*W*H)
Switching Frequency: 150KHz

(VREG01)

SKU VREG01
Barcode # 2000000001913
