DC Control Hub with Switches, Voltmeter and Fuse Block

WAS $265.00
RRP $265.00
NOW $210.00
SAVE 21%!
In Stock
Not available for pickup. Shipped within 24 hours.


Calculate Shipping



Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

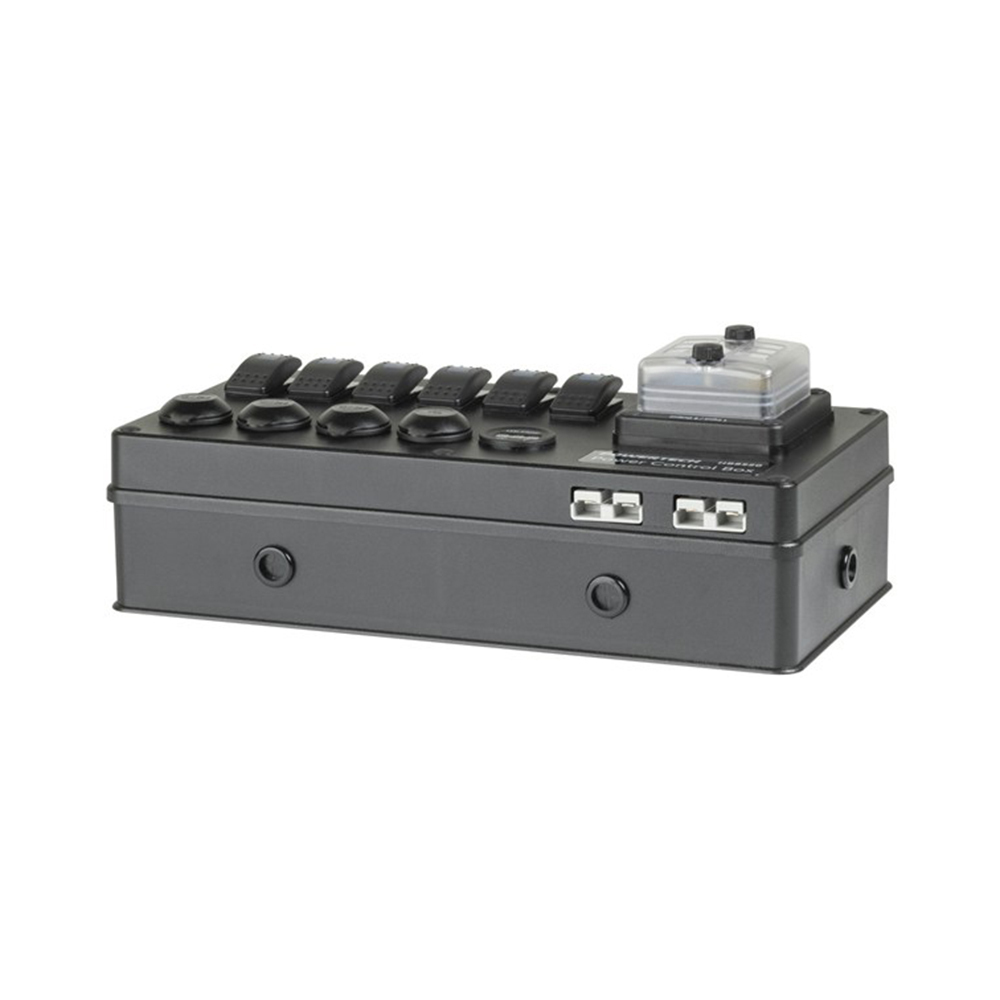

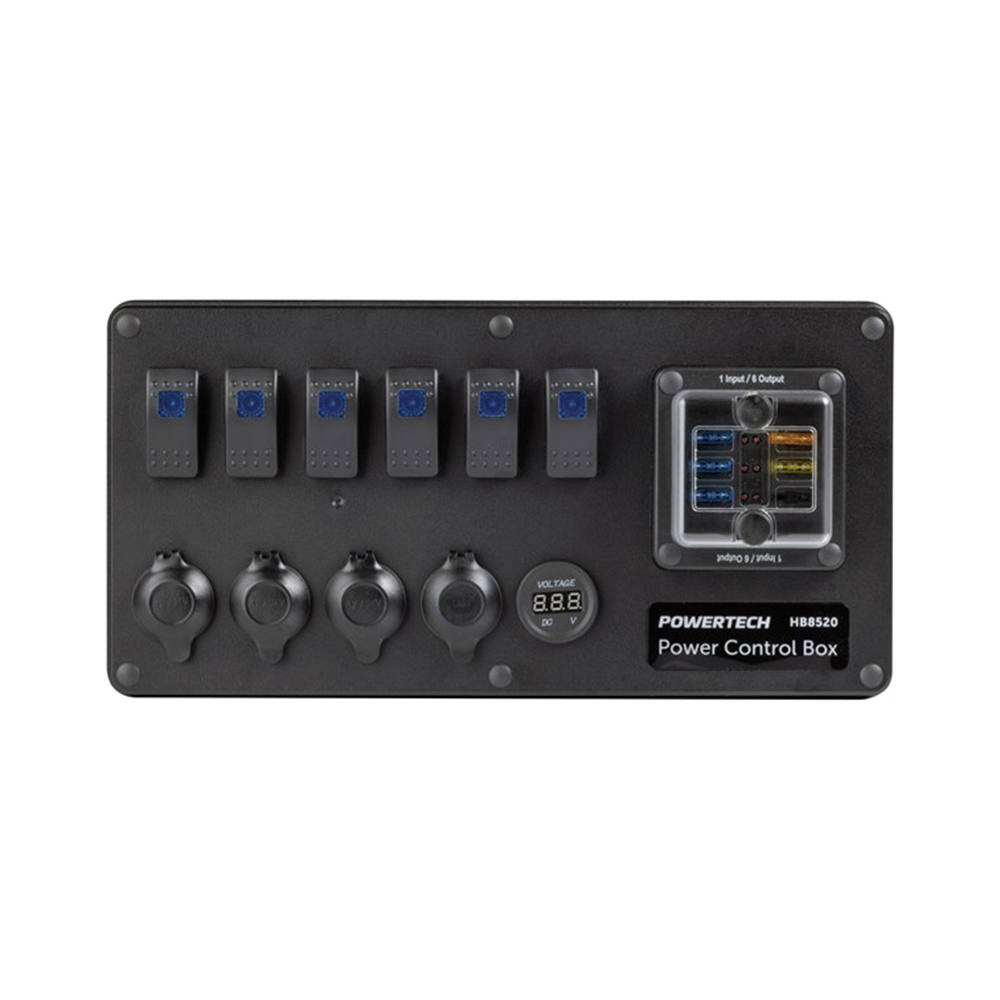

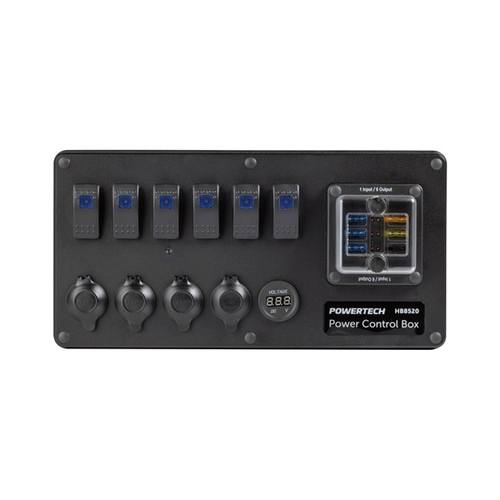

This Powertech explorer control box is so feature packed you will need. It has you covered for all your 12 volt needs in a sturdy plastic package. It’s durable but easy-to-work nylon case makes it a breeze to add any extra items that will fit in the space available. It doesn’t just stop at what you can see, to further simplify things, most of the Internal wiring uses simple push-on 6mm spade connectors. The case is sleek measuring at 355x180x138mm (includes height of fuse block), so you simply need to find a spot to mount it using the supplied mounting hardware.

Features:

Supplied with 10AWG and 14AWG Standard Fittings
Built-in waterproof 6 way Fuse block (100A total max) with individual fuses for each outlet (supplied with 1 x 5A, 3 x 15A, 1 x 20A, 2 x 30A Blade-type fuses)
3 x weatherproof cigarette-lighter type 20 Amp DC sockets
6 x 20A On-Off power switches with blue LED indicators (3 connections)
Blue LED Digital Voltage monitor (range 6V to 30V)
Dual Port USB socket with 1A and 2.1A outputs
2 x 50A Anderson High Current Connectors
2 x 4-way internal Bus Bars for more connections (150A 32V DC max)
6 x Grommet holes for fixed power cable entry

Specifications:

DC Voltage Range: 6-30v DC
Length: 355mm
Width: 180mm
height: 138mm

(ANDE07)

SKU ANDE07
Barcode # 9319236766392
Brand

Powertech

12 Month Manufacturer Warranty
