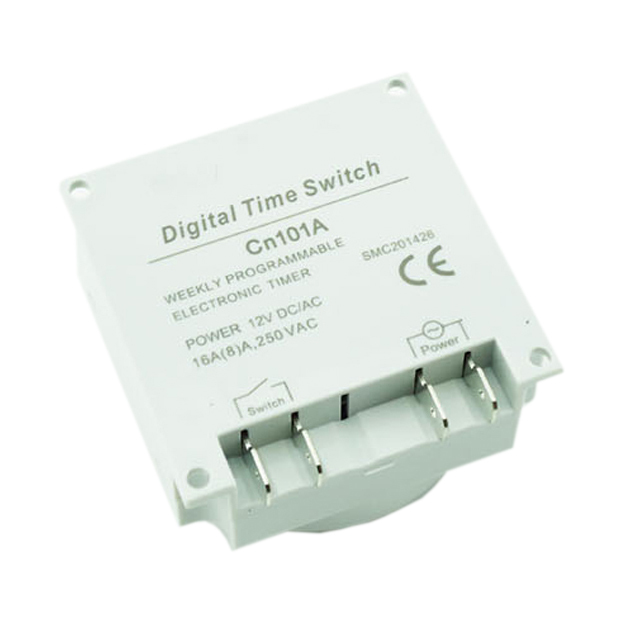

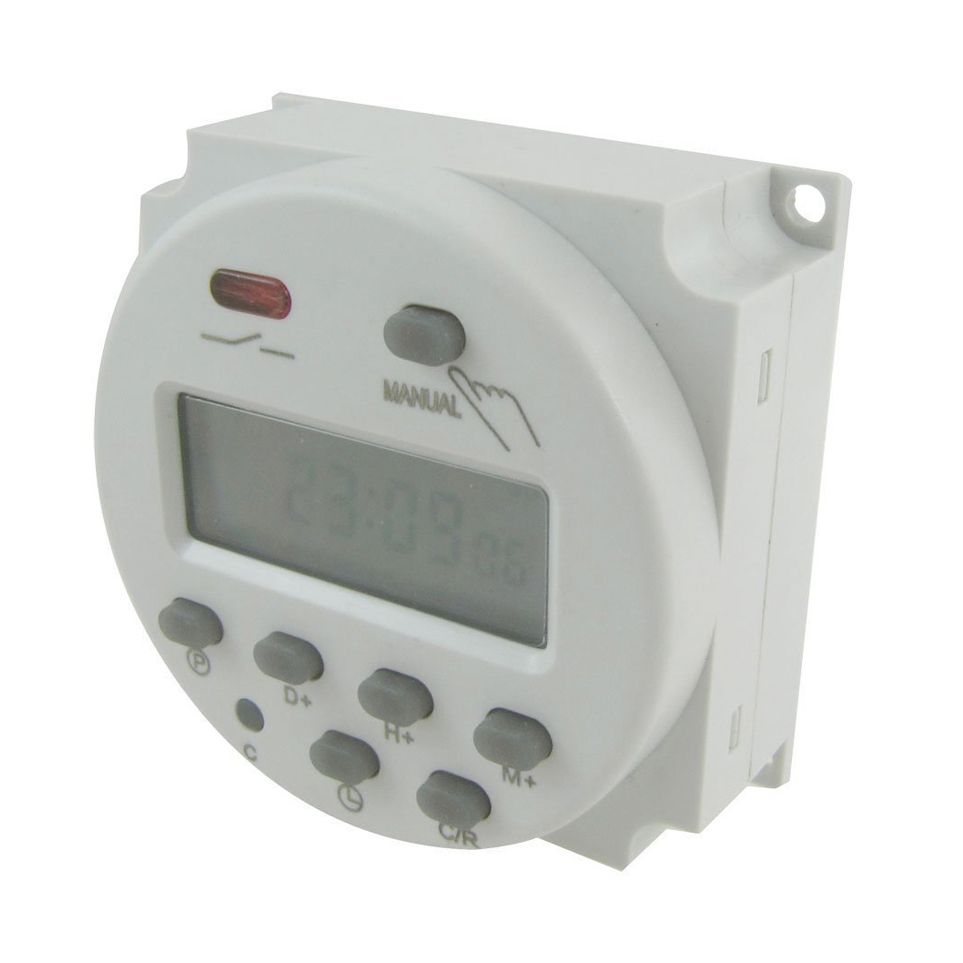

DC 12v Programmable Digital Timer Module

$43.00
Sold Out


Calculate Shipping

DC powered programmable timer switch. Designed to provide timer on and off functionality to your next DIY electronics project. Ideal for security applications, solar, DIY electric irrigation and gardening systems and much more.

Please Note:

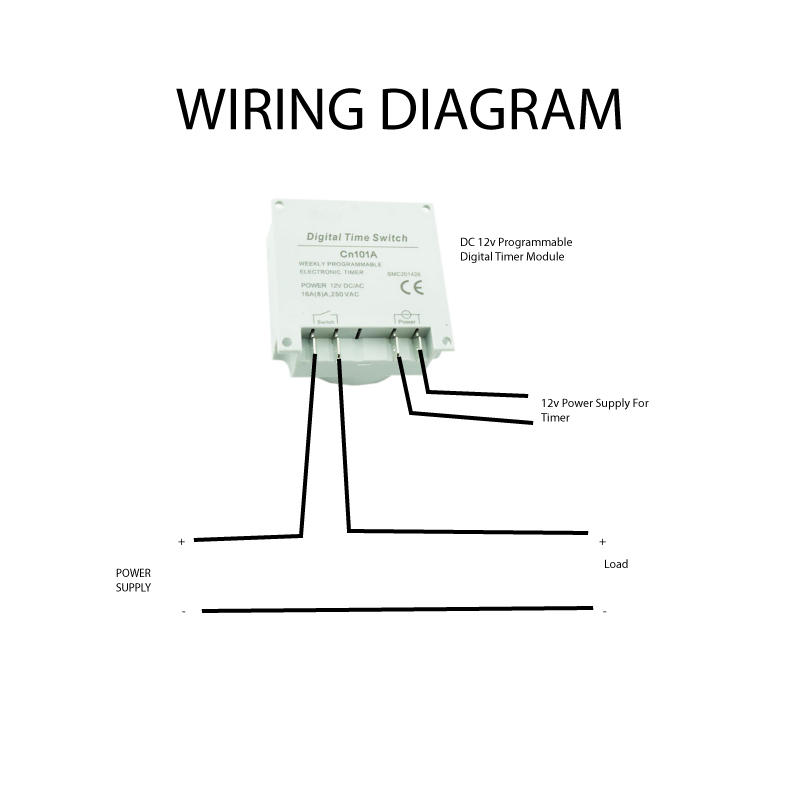

This is a timer switch module similar to any other switch. It will not provide power for your project. It simply switches whatever circuit it is being used to control on and or off. Please refer to the wiring diagram located in the additional images for more.

Features:

Weekly settings
17 Repeat on / off programs
Lithium battery backup built in
Auto time error correction
LCD display

Specifications:

Working Voltage: 12v DC
Load Switching Max Power: 10a / 250v AC
Power Consumption: 2VA Max
Minimum Interval: 1 minute
Time Error: 1s / 24h
Dimensions: 60 x 60 x 30mm
Weight: 80g

(DCTIME)

SKU DCTIME
Barcode # 2000000003856
