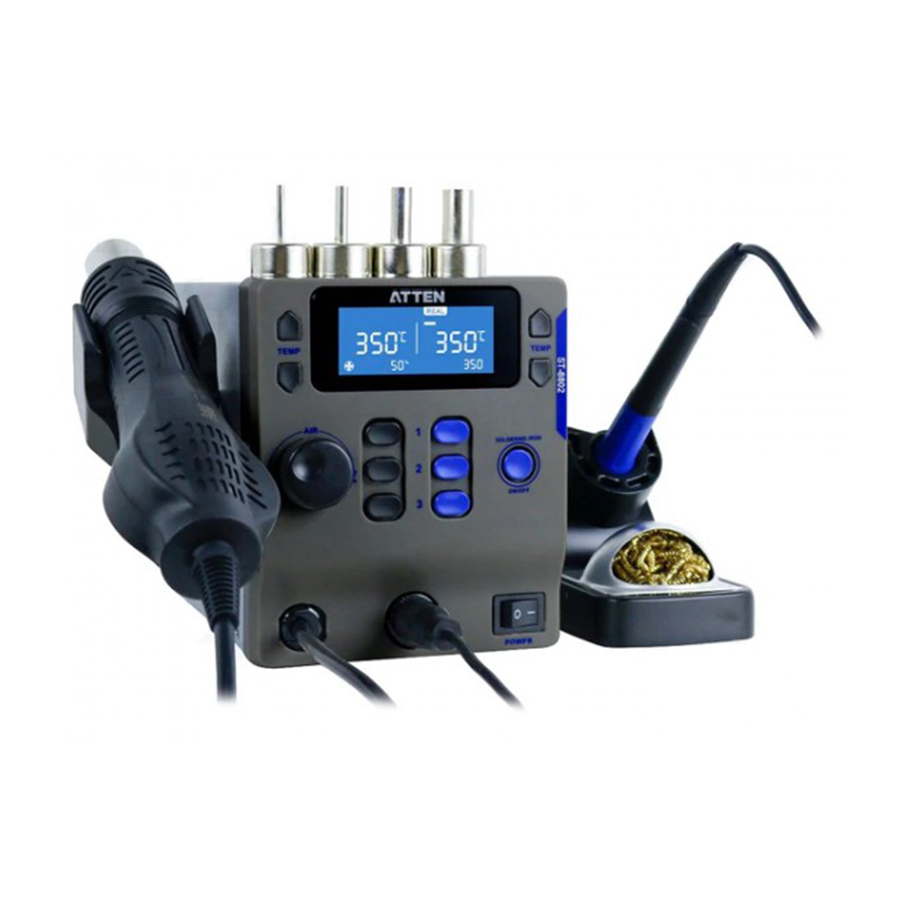

Atten ST-8802 Hot Rework and Soldering Station

The Atten ST-8802 is an all in one intelligent dual channel rework station. Including a 800w hot air gun with additional nozzles as well as a temperature adjustable 65w soldering iron.

The ST-8802 is the ultimate tool for the serious hobbyist, electrical repairer, labs and electrical engineers. The large LCD screen provides important data on each tool. Allowing you to micro adjust temperature settings as well as set user locks. The unit allows for adjustment of the rework side and soldering side independently from each other.

Auto sleep functionality will kick in as soon as the hot air gun is placed back into the stand for maximum safety and prolong component life.

The Atten ST-8002 soldering iron is compatible with all our readily available 900 series Hakko tips.

Features:

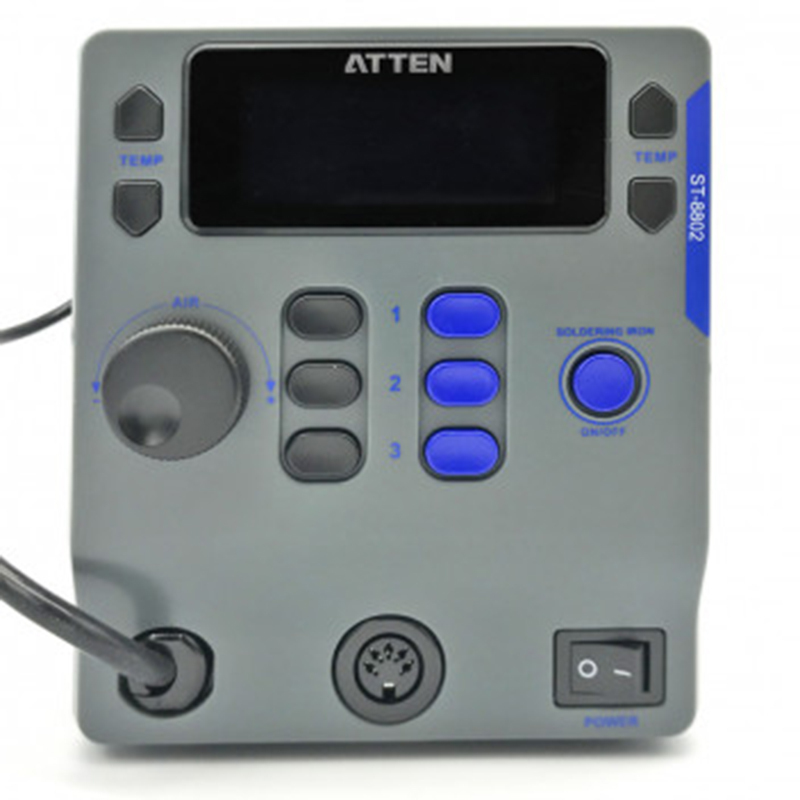

Large LCD screen for easy temp and air adjustment
Touch sensor inside that engages auto sleep function when hot air gun is placed on the stand
Utelises brushless vortex fan for much more efficient and even cyclone air output
Includes 4 hot air nozzles
Automatic large air volume cooling functionality. Protecting the life of the heating core and handle
Independent cold air function
Three sets of quick temperature keys
Password protection and key lock function

Specifications:

Input Voltage: 110-220v AC +/- 10%
Soldering Iron Power: 80w
Hot Air Gun Power: 800w
Soldering Iron Temp Range: 80-480C
Soldering Iron Temp Stability: +/- 2%
Hot Air Gun Temperature Range: 100-500C
Hot Air Gun Temp Stability: +/- 5%
Dimensions: 295 x 248 x 188
Weight: 3.75 KG

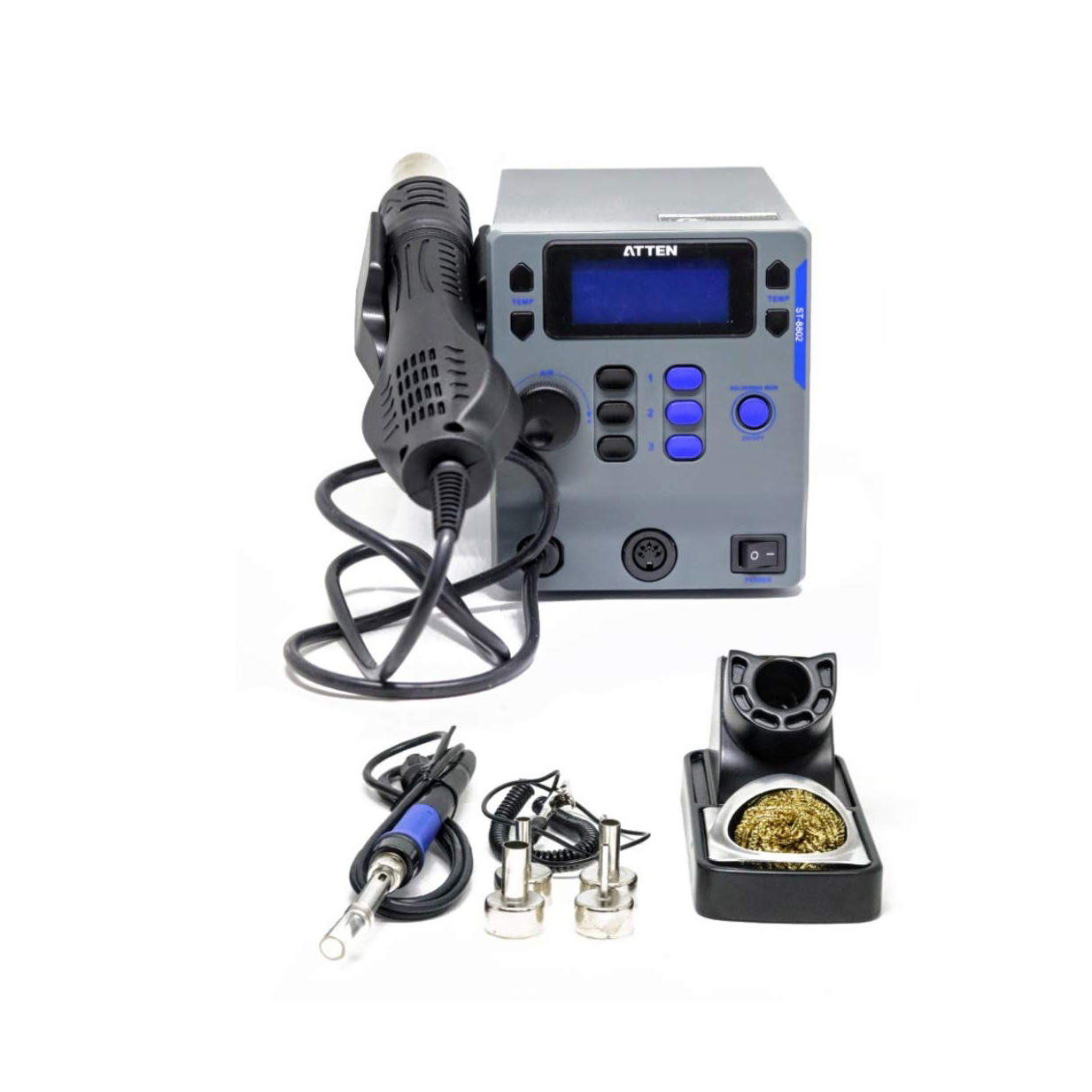

Package Includes:

2 x stands (iron and gun)
Soldering Iron and Tip
Hot air handpiece
2.5mm hot air nozzle
5.5mm hot air nozzle
7.4mm hot air nozzle
9.4mm hot air nozzle

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
