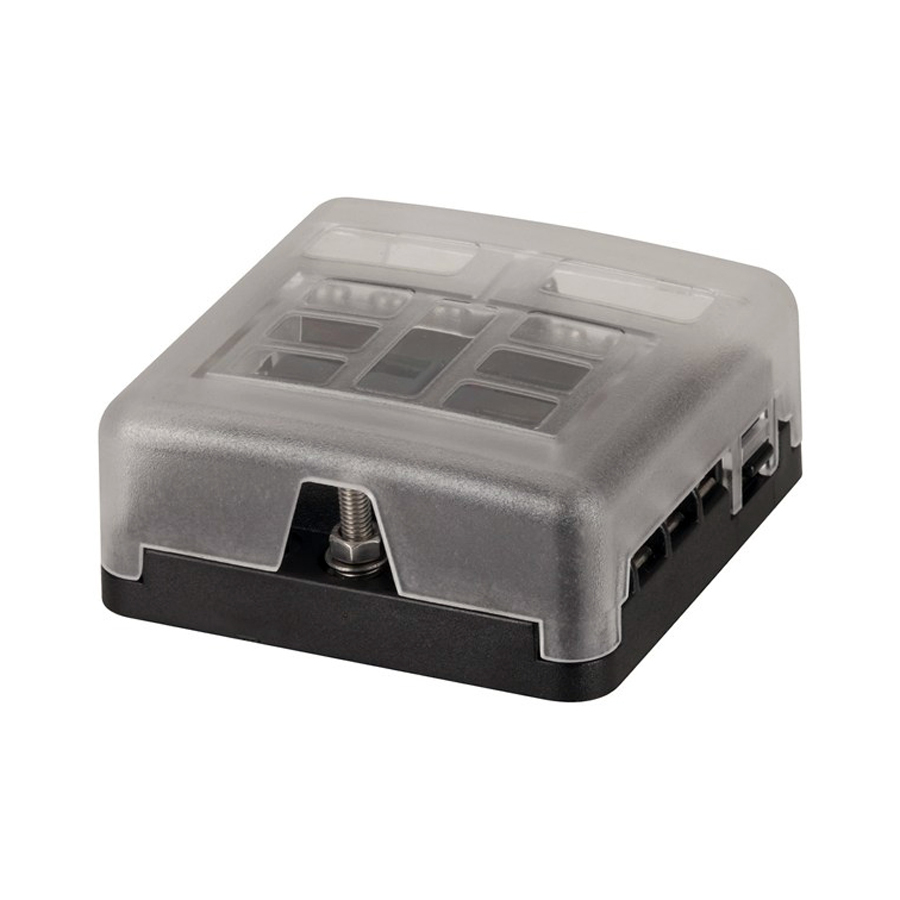

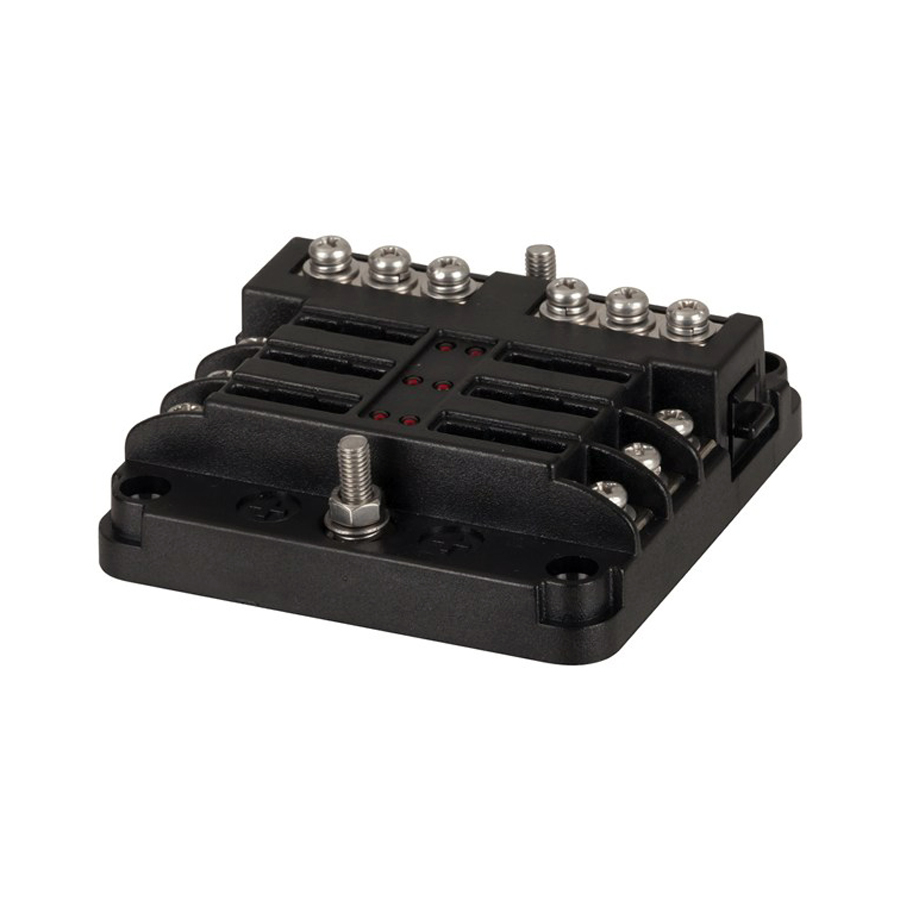

6 Way Fuse Block with Bus Bar

In Stock
Not available for pickup. Shipped within 24 hours.

Calculate Shipping

This versatile fuse block provides fused distribution of your positive terminals, as well as distribution for the negative wires. This is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.


Up to 30A per output
Red LED blown fuse indication
Negative bus bar


Main Line Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.)
Main Line Wire Size: #4-6 AWG
Single Line Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)
Wire Size: #12-16 AWG
Terminals: Nickel Plated Copper
Screws: Stainless Steel
Fuse Type: Blade
Width: 85.0mm
Height: 88.0mm
Depth: 37.0mm
Weight: 160.0g


Barcode # 9319236747742
12 Month Manufacturer Warranty
